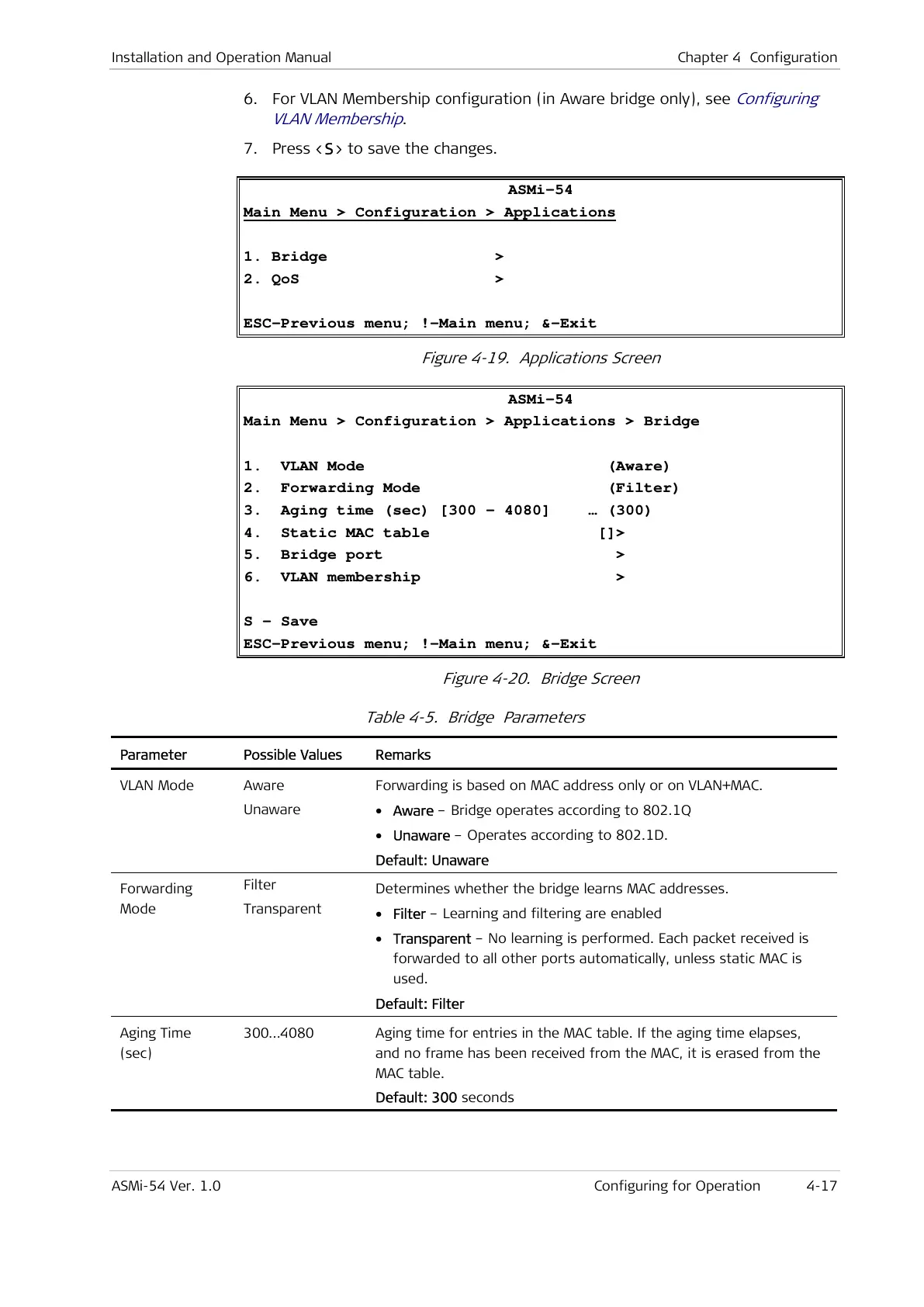

Installation and Operation Manual Chapter 4 Configuration
ASMi-54 Ver. 1.0 Configuring for Operation 4-17
6. For VLAN Membership configuration (in Aware bridge only), see Configuring
VLAN Membership
.
7. Press <S> to save the changes.
ASMi-54
Main Menu > Configuration > Applications
1. Bridge >
2. QoS >
ESC-Previous menu; !-Main menu; &-Exit
Figure 4-19. Applications Screen
ASMi-54
Main Menu > Configuration > Applications > Bridge
1. VLAN Mode (Aware)
2. Forwarding Mode (Filter)
3. Aging time (sec) [300 – 4080] … (300)
4. Static MAC table []>
5. Bridge port >
6. VLAN membership >
S - Save
ESC-Previous menu; !-Main menu; &-Exit
Figure 4-20. Bridge Screen
Table 4-5. Bridge Parameters
Parameter Possible Values Remarks
VLAN Mode Aware
Unaware
Forwarding is based on MAC address only or on VLAN+MAC.
• Aware – Bridge operates according to 802.1Q
• Unaware – Operates according to 802.1D.
Default: Unaware
Forwarding
Mode
Filter
Transparent
Determines whether the bridge learns MAC addresses.
• Filter – Learning and filtering are enabled
• Transparent – No learning is performed. Each packet received is
forwarded to all other ports automatically, unless static MAC is
used.
Default: Filter
Aging Time
(sec)
300…4080 Aging time for entries in the MAC table. If the aging time elapses,
and no frame has been received from the MAC, it is erased from the
MAC table.
Default: 300 seconds
