Accu-Chek Compact Plus Owner's Booklet

27

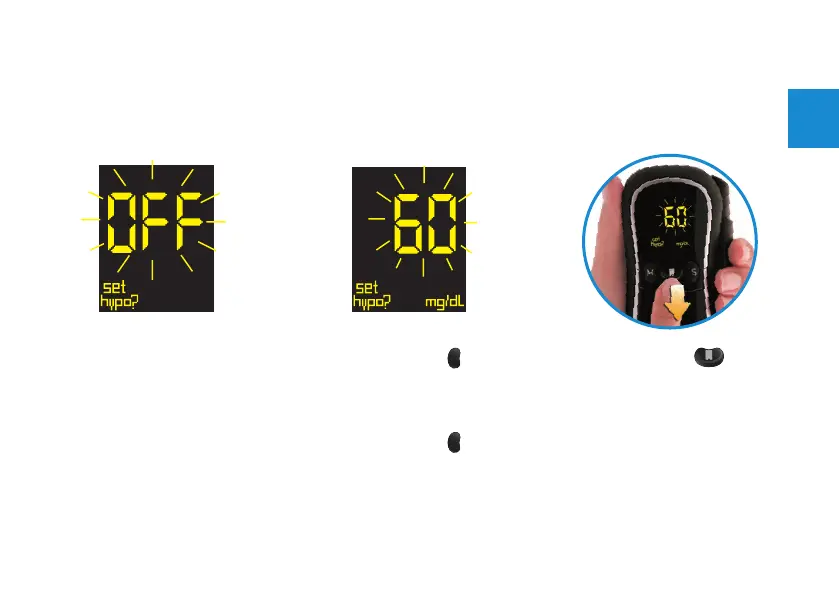

1. “OFF” ashes and “hypo?” is
displayed.
2. Press and release
M
M
to turn on
the hypo indicator. “60 mg/dL”
ashes on the display (rst
use) or the current level.
3. Press and release
M
M
to select
the level (60, 70 or 80 mg/dL).
4. Slide and release
to set
your selection and turn off the
meter.
man_07699336001_01_EN.indb 27 28.09.2015 13:26:13

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
