Accu-Chek Compact Plus Owner's Booklet

29

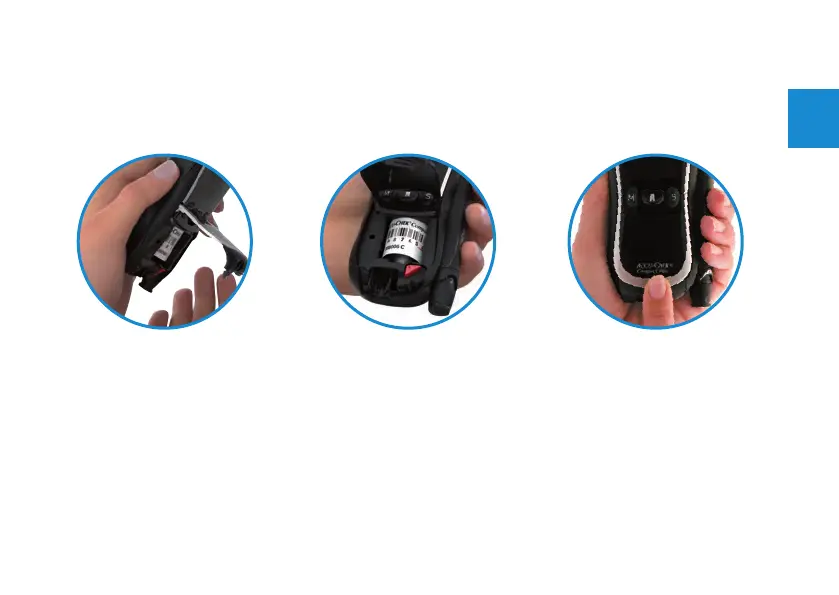

4. If there is a test drum in the
meter, tilt the meter forward
until the test drum comes out.
5. Insert a new test drum. 6. Close the drum door until it
snaps. The meter turns on,
automatically codes itself, and
rotates the test drum to the
rst test strip. Then the meter
turns off.
man_07699336001_01_EN.indb 29 28.09.2015 13:26:16

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
