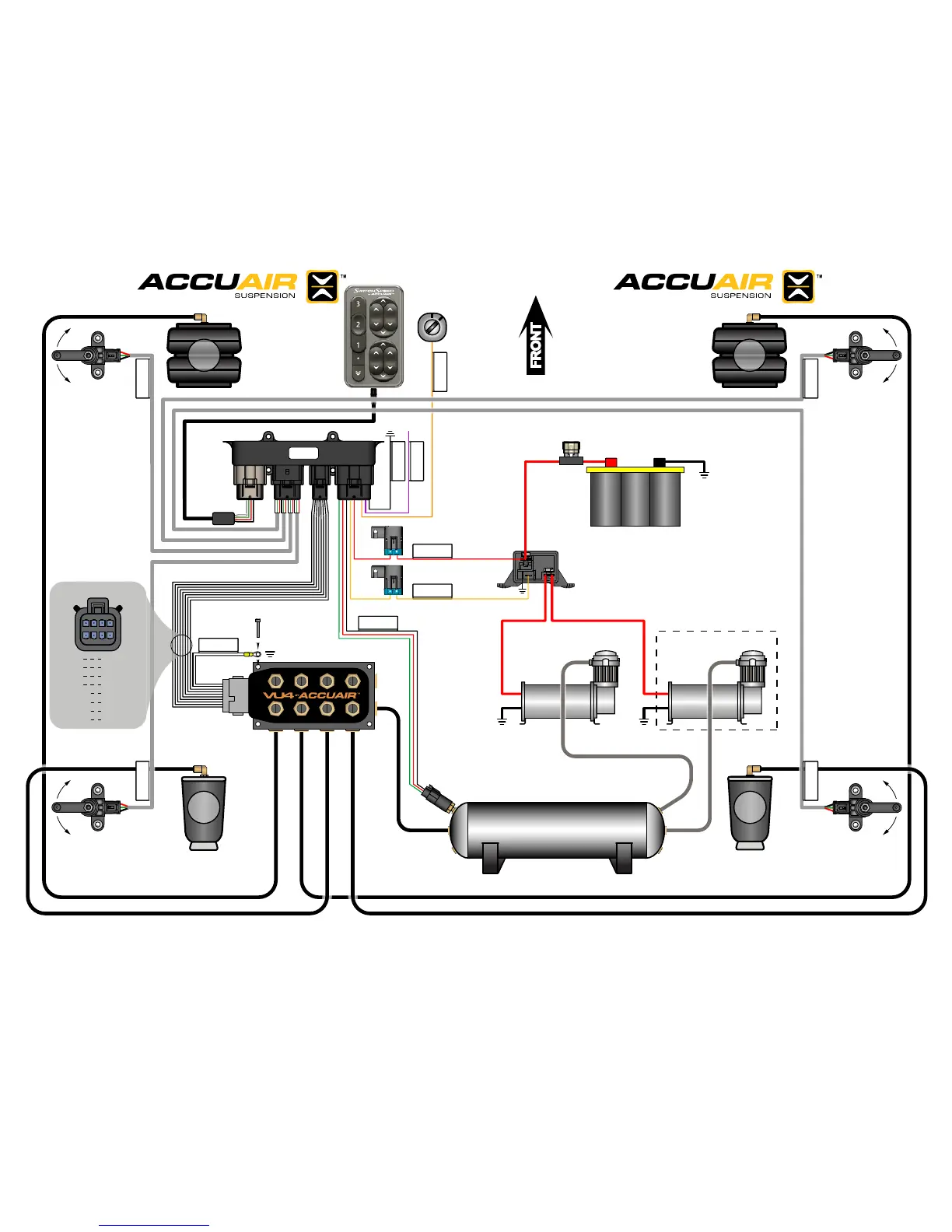

AccuAir SwitchSpeed - System Diagram Details; System Wiring and Airflow Schematic

AccuAir SwitchSpeed
31 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
ECU
- Page 13 -
- Page 14 -
- Page 2 -
- Page 3 -
- Page 20 -
- Page 21 -- Page 4 - - Page 5 -- Page 22 - - Page 23 -- Page 17 - - Page 18 -
- Page 4 - - Page 5 -
87
86
85
30
Compressor(s)
Relay
COMP_1
BATT_12V
IGN_12V
FRONT
1
2
P_SENS
V_GND
HEADLIGHTS
EC_GND
SwitchSpeed™
Controller
OFF
ON
IGN
ECU
Compressor 2 (Optional)Compressor 1
(Main) 70Amp Fuse
(F2) 3 Amp
Compressor
Relay Fuse
(F1) 10 Amp
ECU Fuse
12 V Batt
3 4
SENS_1
SENS_2
SENS_3
SENS_4
When using other MFG’s
valves:
1.) Up 4 White/Black
2.) Up 3 White/Orange
3.) Up 2 White/Purple
4.) Up 1 White
5.) Down 4 White/Gray
6.) Down 3 White/Green
7.) Down 2 White/Brown
8.) Down 1 White/Blue
1 2 3 4
5 6 7 8
