Accuphase DP-77 Service Information

－１０－
BACK/NEXT:track search Button,external input selector button
REPEAT Button /
ﾘﾋﾟｰﾄﾎﾞﾀﾝ
Input Selector Button /
入力ｾﾚｸﾀｰ･ﾎﾞﾀﾝ
EXT DSP Button / EXT DSP
ﾎﾞﾀﾝ
OPEN/CLOSE Button /
ｵｰﾌﾟﾝ･ｸﾛｰｽﾞ･ﾎﾞﾀﾝ
PLAY/PAUSE Button / PLAY
･
PAUSE
ﾎﾞﾀﾝ
FR / FF Button / FR:
早戻し･
FF
早送 り ･ﾎﾞﾀﾝ
PROGRAM Button /
ﾌﾟﾛｸﾞﾗﾑ･ﾎﾞﾀﾝ
Index serach button
TRACK/INDEX button
STOP button /
停止ﾎﾞﾀﾝ
Time mode selector button
Output Level button /
出力ﾚﾍﾞﾙ調整ﾎﾞﾀﾝ
Direct play button /
ﾀﾞｲﾚｸﾄ選択ﾎﾞﾀﾝ
CD/PROC selector button /
CD/PROC
切替ﾎﾞﾀﾝ

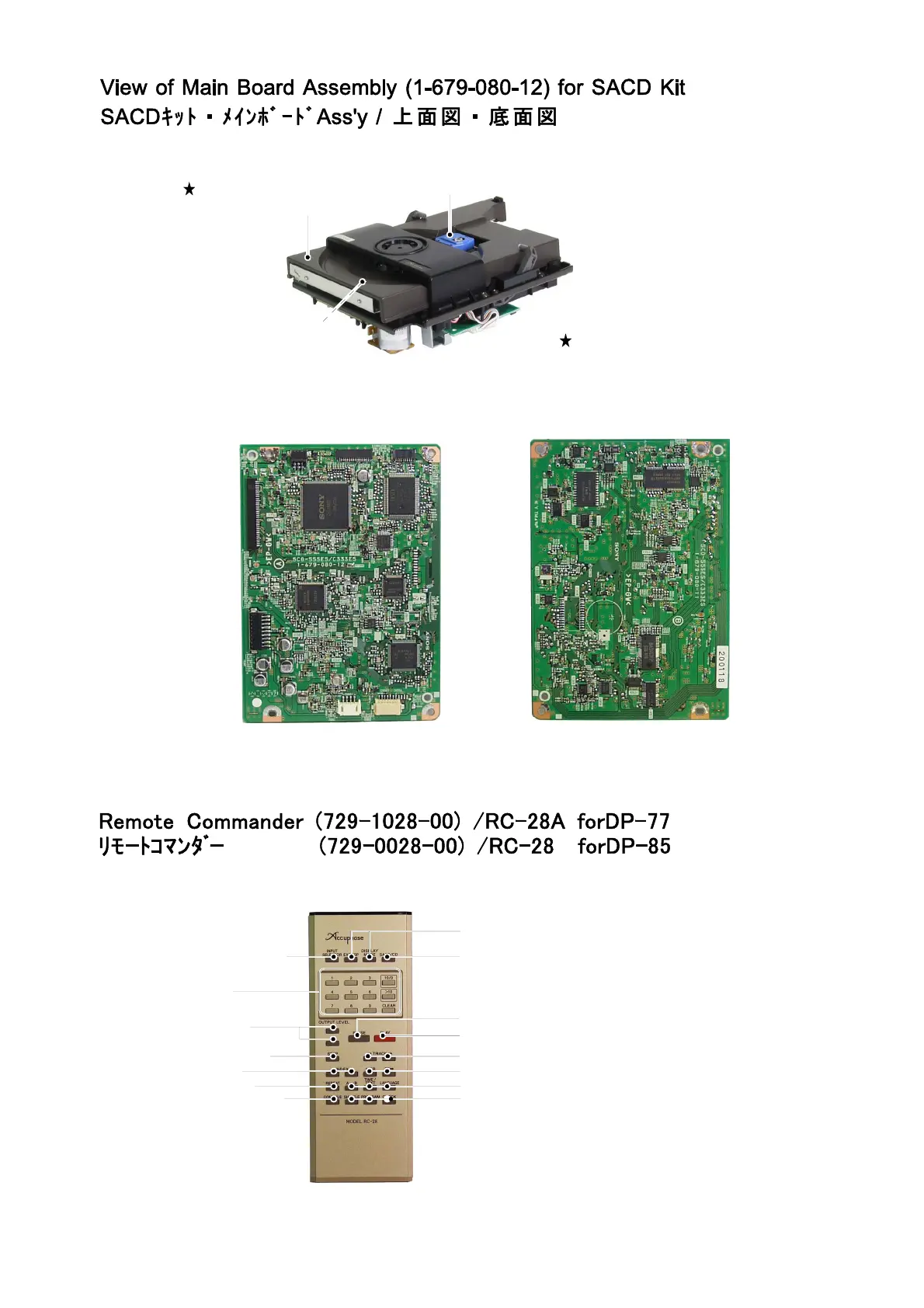

Top side Bottom side
Disc Table(4-948-353-18)
ﾃﾞｨｽｸﾃｰﾌﾞﾙ /not supplied
Optical Pick-up(8-820-132-03)
ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟ
Belt(4-927-649-01)
ﾍﾞﾙﾄ
The parts of this mark are not supplied.
ｽﾀｰﾏｰｸの部品は供給で き ません｡
Caution
/
注意

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
