Accuphase DP-77 Service Information

SACD Kit /SACD ｷｯﾄ
Mechanical Assembly
ﾒｶﾆｶﾙ Ass'y
(731-0007-00)

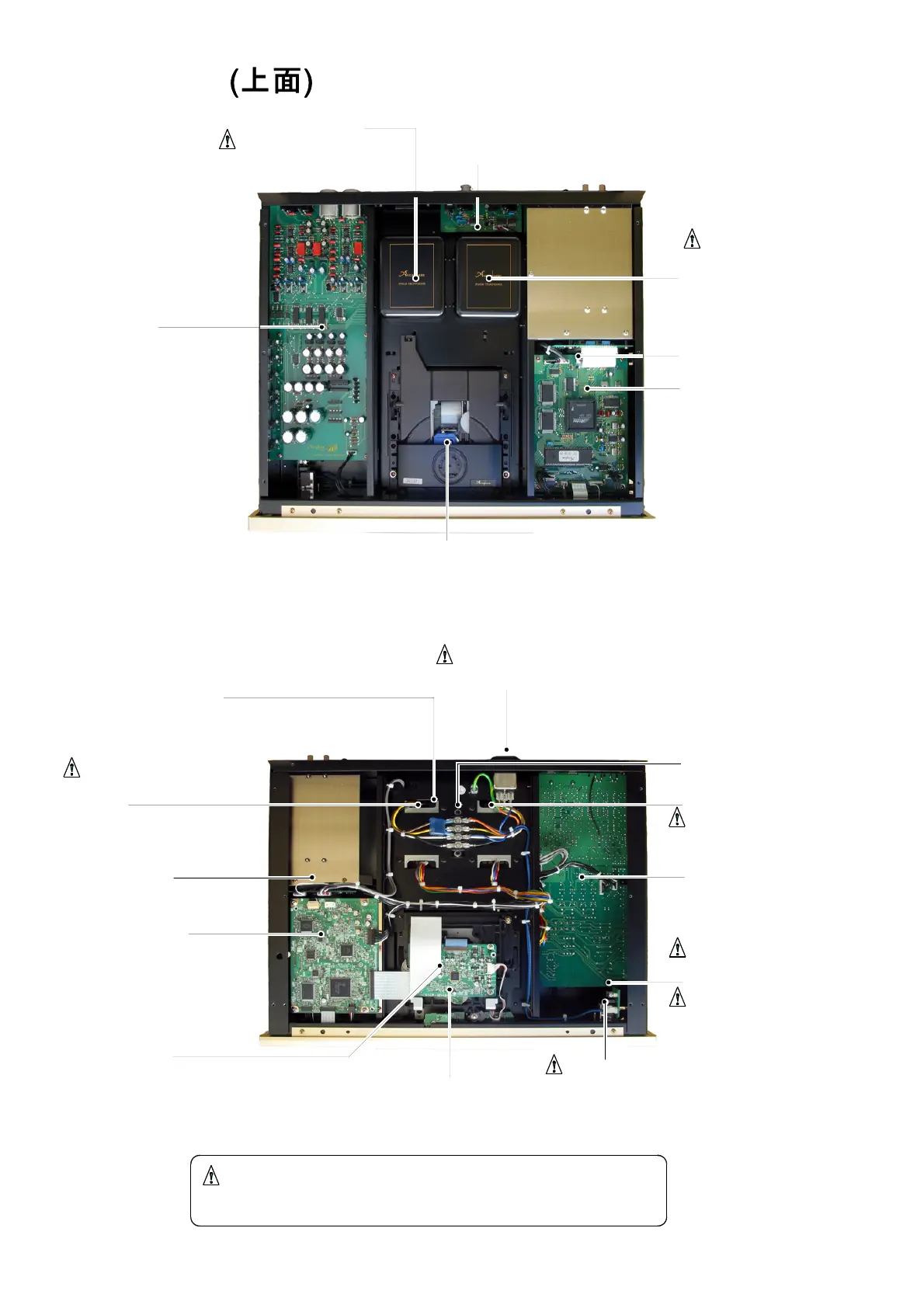

TOP
V
IE
W
BOTTOM VIEW
(
底面
)
AC Inlet / Line Filter
ACｺﾈｸﾀﾌﾟﾗｸﾞ
(301-3306-00)
IO Assembly
IO Ass'y
(726-0142-00)
Metalized Polyester Capacitor
ﾒﾀﾗｲｽﾞﾄﾞﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
C001:0.01μF/250V
(CF99MF2E103M)
Fuse for 100-120V
T1.25A L 250V
(310-1104-00)
Fuse for 220-240V
T630mA L 250V
(310-1061-00)
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
－３－
DAC Assembly
DAC Ass'y
(725-0041-00)
DSP Assembly
DSP Ass'y
(724-0055-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4031-00)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0143-00)
Mother Board Assembly
ﾏｻﾞｰﾎﾞｰﾄﾞ Ass'y
(726-0144-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4032-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4031-00)
SACD Kit /SACD ｷｯﾄ
Mechanical Assembly
ﾒｶﾆｶﾙ Ass'y
(731-0007-00)
DAC Assembly
(725-0041-00)
Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
(510-4032-00)
Mother Board Assembly
ﾏｻﾞｰﾎﾞｰﾄﾞ Ass'y
(726-0144-00)
Main Board Assembly
ﾒｲﾝﾎﾞｰﾄﾞ Ass'y
(1-679-080-12)
*This assembly is
contained in SACD Kit.
*このAss'y はSACDｷｯﾄに
含まれます。
RF Board Assembly
RF ﾎﾞｰﾄﾞAss'y
(1-679-092-11)
*This assembly is
contained in SACD Kit.
*このAss'y はSACDｷｯﾄに
含まれます。
Power Push Switch
ﾌﾟｯｼｭｽｲｯﾁ /POWER
(354-1024-00)
Terminal
端子板
(313-4046-00)

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
