Accuphase DP-77 Service Information

－８－
Heat Sink 240-1061-04
ﾋｰﾄｼﾝｸ
XLR(Canon) JK2,3 301-8005-00
Plug Receptacle
ｵｰﾃﾞｨｵｺﾈｸﾀﾌﾟﾗｸﾞ
Pin Jack JK1,4 302-0116-00
ﾋﾟﾝｼﾞｬｯｸ
Connector Plug K1,2,102 308-0304-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3 308-1402-00
K101 308-1013-00
K103 308-0508-00
K104 308-0606-00
K701 308-0905-00
IC Protector F1～6 310-8251-00
ICﾌﾟﾛﾃｸﾀ
Relay RELAY1,2,3 362-0202-00
ﾘﾚｨ
LED D1,2 TLS262-C
Diode D5,6 LN1VB60
ﾀﾞｲｵｰﾄﾞ D11,108,109,112,113 MA165
D101,102,103 S1VB60
D104,105 D4SBS4
D110,111 EK03
Zener Diode D7,8,9,10 RD3.0EB1
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ D106 HZ332L
D107 RD7.5F-B
Transistor Q1,2,3,4 2SA1316-BL
ﾄﾗﾝｼﾞｽﾀ Q5,6 2SC3421-Y
Q7,8 2SA1358-Y
Q101 2SA1048-GR
IC IC1,2,3 ISO150AU
IC4,5,6,7 PC817-B/C
IC8,9,101 TC74VHC14F/EL
IC10,11,12,13 AD1853JRS
IC14,15,18,19 NJM4580D-D
IC16,17 NJM2114D
IC20,22 NJM78M05FA
IC001 UPC2412AHF
IC002 UPC2405AHF
IC003,005 UPC29M33HF
IC004 UPC24M05AHF
IC006 UPC2408AHF
IC007 UPC7908AHF

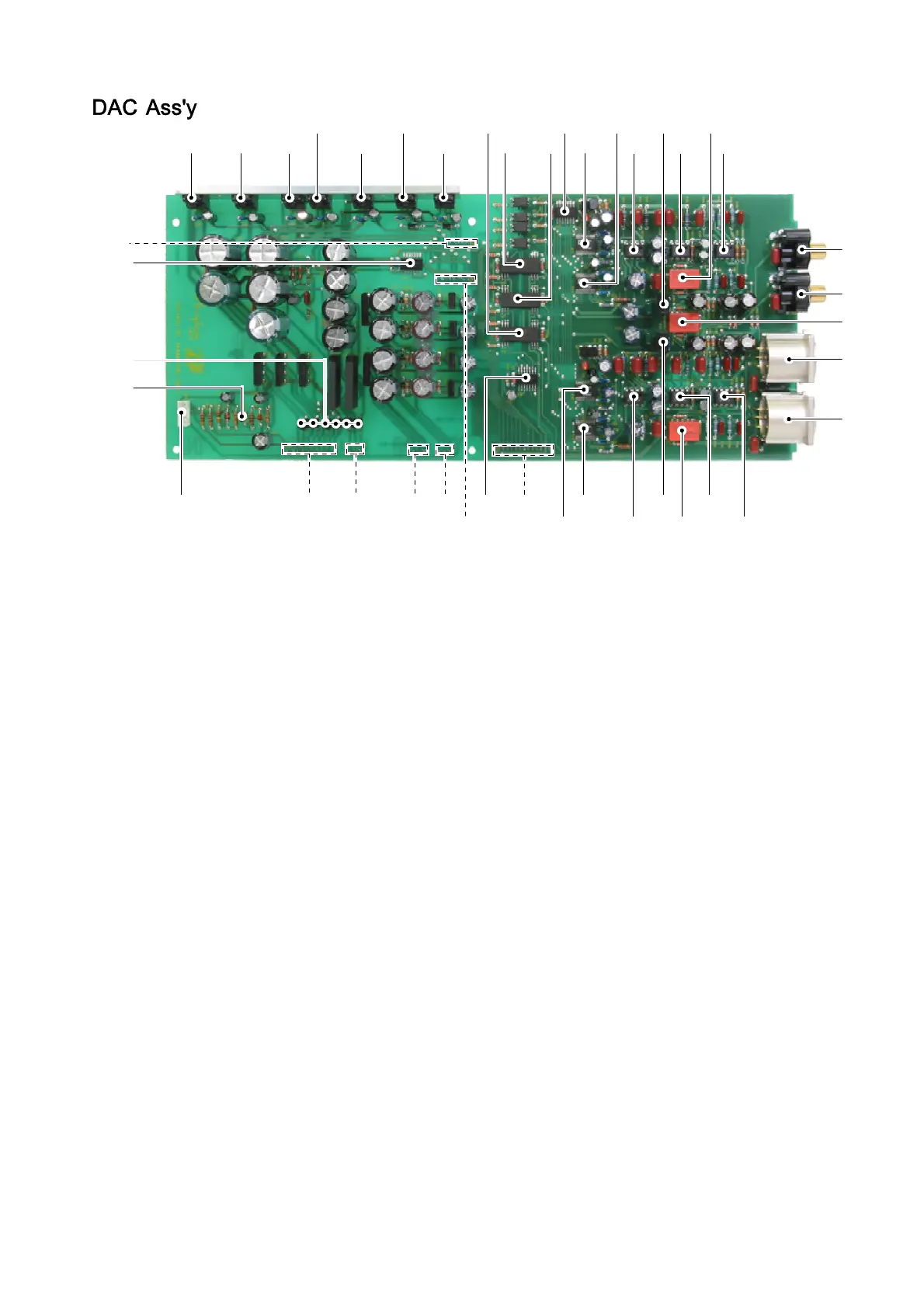

D
A
C
A
ssembly (725-0041-00)
Ceramic Capacitor C1,2,3,6,100,103,104,105 CG14Y1C103MS 0.01uF/16V
磁器ｺﾝﾃﾞﾝｻ C7,8,9,10,15,16,17,18 CK725B1E223M16T 0.022uF/25V
C19～22,27～30 CC92CH1H221J 220pF/50V
C85,86,221～227,229 CK92Y5V1H104Z 0.1uF /50V
C11,12,13,14 CE04W1C560LXY 56uF /16V
C23,24,25,26 CE04W1E100VR 10uF /25V
C31,32,81,～84,91,92 CE04W2C100RE3 10uF /160V
Electorlytic Capacitor C45,46,55,56,57,58 CE04W1C101PZ 100uF /16V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C67,68,95,97,98 CE04W2C4R7RE3 4.7uF /160V
C73,74,75,76 CE04W1C222VR 2,200uF/16V
C77,78,79,80 CE04W1E561LXV 560uF /25V
C87,88,89,90 CE04W1H100CA 10uF /50V
C101,211～215,218,219 CE04W1C101CA 100uF /16V
C201,202 CE04W1E332CZ 3,300uF/25V
C203,204,205 CE04W1A682VR 100uF /16V
C206 CE04W1H101VR 100uF /50V
C207,208,209,210 CE04W1C332VR 3,300uF/16V
C216,217,220 CE04W1H100VR 10uF /50V
Polypropylen Capacitor C33～40 CQ93PP2A332JM-F 3,300pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ C41,42,43,44 CQ93PP2A331JM-F 330pF /100V
C61,62,65,66 CQ93PP2A471JM-F 470pF /100V
Polyester Film Capacitor C47～54 CQ922M1H101K-B 100pF /50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C93,94 CF922MF2E473KD-AZ 0.047uF/250V
積層ｺﾝﾃﾞﾝｻ C228 CF922N1H104J 0.1uF /50V
PPS Capacitor/PPSｺﾝﾃﾞﾝｻ C63,64 CQ922M1H471JAHS 470pF / 50V
Carbon Film Resistor R1,2,3,4 RD142CA391J 390Ω 1/6W
炭素被膜抵抗器 R5～8,67～70,91～94 RD142CA102J 1kΩ 1/6W
R9,10,11,13 RD142CA221J 220Ω 1/6W
R12,14,15,87～90 RD142CA101J 100Ω 1/6W
R21,22,23,24 RD142CA151J 150Ω 1/6W
R25,26,107 RD142EA102J 1kΩ 1/4W
R37,38,39,40 RD142EA182J 1.8kΩ 1/4W
R43,44,63,64,65,66 RD142EA470J 470Ω 1/4W
R45,46,71,72,73,74 RD142CA103J 10kΩ 1/6W
R75,76,77,78,79,80 RD142CA222J 2.2kΩ 1/6W
R81,82 RD142CA332J 3.2kΩ 1/6W
R83,84,85,86 RD142CA470J 470Ω 1/6W
R101 RD142EA682J 6.8kΩ 1/4W
R102,104,105 RD142EA101J 100Ω 1/4W
R103 RD142EA104J 100kΩ 1/4W
R106 RD142EA183J 18kΩ 1/4W
R108 RD142EA335J 3.3MΩ 1/4W
R109,110,111,112,113 RD142EA472J 4.7kΩ 1/4W
Metal Film Resistor R17,18,19,20 RN142CK2701F 2.7kΩ 1/6W
金属被膜抵抗器 R27,28,29,30 RN142EK6340F 6.34Ω 1/4W
R31～36,41,42 RN142EK2001F 2kΩ 1/4W
R47～54 RN142EK4991D 4.99kΩ 1/4W
R55～62 RN142EK5111D 5.11kΩ 1/4W
IC8
RELAY2
IC11
K101
IC003
K102
K103
JK1
JK2
RELAY3
Q101
IC100
IC101
IC001
IC002
IC007
IC12
IC13
IC22
IC004
IC005
IC006
JK4
JK3
RELAY1
K2
K1
K3
IC10
IC14
IC18
IC16
IC15
IC19
IC17
IC3
IC2
IC1
K701
K104
IC20
F1～6

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
