SACD Kit (731-0007-00)
Including Main Board Ass'y
See page 10.
－６－

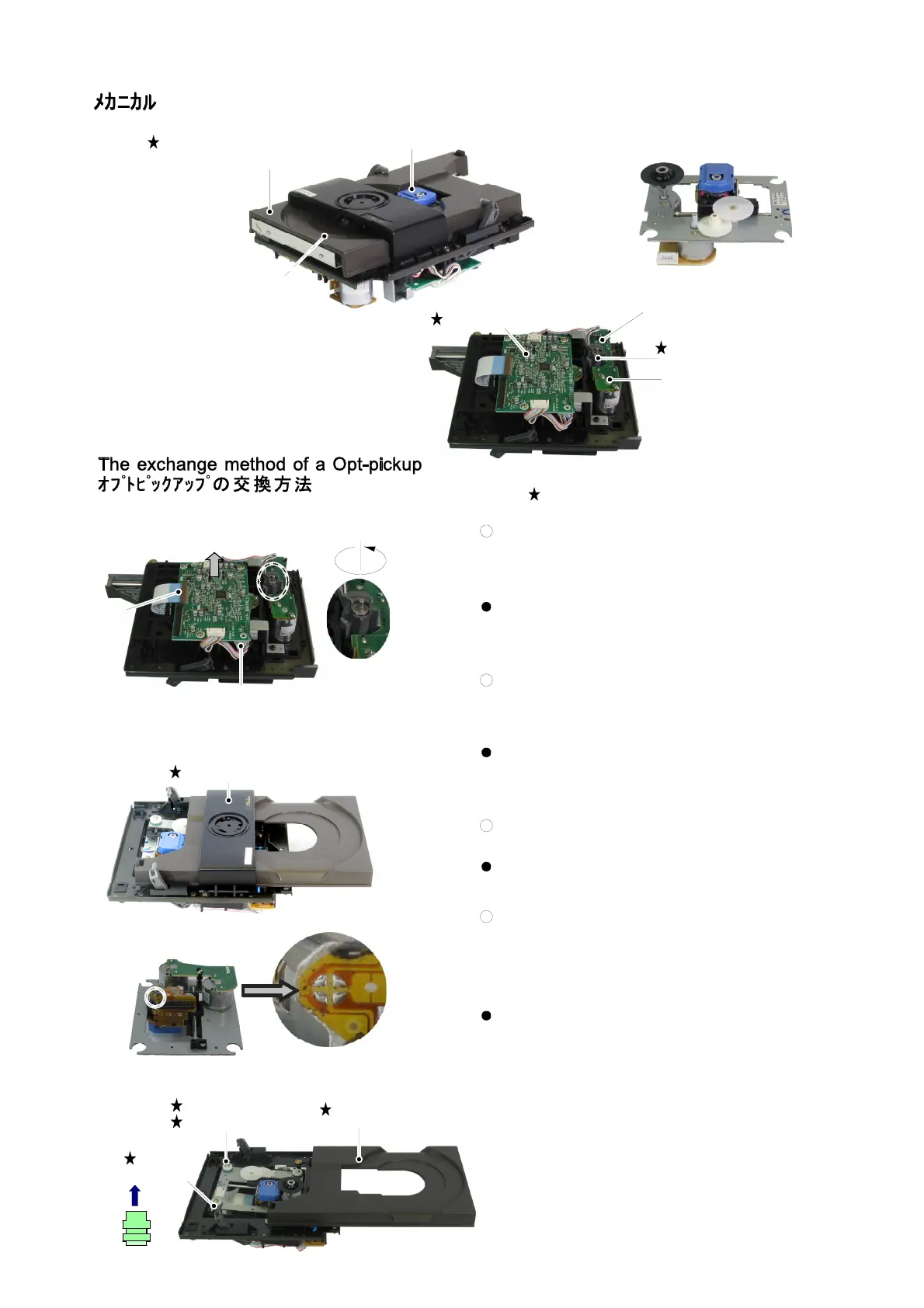

Mechanical Assembly (731-0007-00M)
Ass'y
Disc Table(4-948-353-18)
ﾃﾞｨｽｸﾃｰﾌﾞﾙ /not supplied
Optical Pick-up(8-820-132-03)
ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟ
Belt(4-927-649-01)
ﾍﾞﾙﾄ
not suppled
It does not need to be adjusted at the time of this
machine performing part exchange etc.,
since automatic adjustment is performed for every disk.
本機はﾃﾞｨｽｸ毎に自動調整が行われる為に、部品交換などを
行った際の調整は必要ありません。
ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟのﾚｰｻﾞﾀﾞｲｵｰﾄﾞは、衣服や人体に帯電した静電
荷等で電位差を生じ、静電破壊を生じる危険があります。
修理時においては充分に注意し行って下さい。
The laser light of this machine is condensed so that
a focus may be connected in the shape of a reflective
side with the object lens in an Optical pickup.
Therefore,when you check luminescence of a laser diode,
please look aside more than 30㎝ from an object lens.
本機のﾚｰｻﾞ光は、ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟ内の対物ﾚﾝｽﾞによってﾃﾞｨｽｸ
の反射面状に焦点を結ぶように集光されます。従って、ﾚｰｻﾞ
ﾀﾞｲｵｰﾄﾞの発光を確認する時は、対物ﾚﾝｽﾞより30㎝以上目を
離して下さい。
Handling needs to keep in mind that a flexible printed
circuit board tends to go out.
* When there is the necessity for solder, perform solder
iron point temperature before and after 270 degrees C.
* Please do not apply the solder iron point to
* same pattern to be careful repeatedly for power not to
join a pattern.
ﾌﾚｷｼﾌﾞﾙﾌﾟﾘﾝﾄ基板は切れ易いので取扱いは注意が必要です。
･ﾊﾝﾀﾞの必要がある時はｺﾃ先温度は
270
℃前後で行います。
･ﾊﾟﾀｰﾝに力が加わらないように注意が必要です｡
･同一ﾊﾟﾀｰﾝに何度もｺﾃ先を当てないで下さい。
The laser diode of an Optical pickup has a risk of pro-
ducing potential difference in electrical charged on
clothes or the human body, and producing Static
electricitydestruction.
At the time of repair, be carefully and carry out.
Switch Assembly (1-641-764-11)
ｽｲｯﾁ
Ass'y
Loading Motor (1-641-765-11)
ﾛｰﾃﾞｨﾝｸﾞﾓｰﾀ
RF Board (1-679-092 -11)
Optical Pick-up (8-820-132-03)
ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟ
A cam is turned counterclockwise strongly.
ｶﾑを反時計方向に強く回します。
Remove the holder
./
ﾎﾙﾀﾞｰを外します｡
A Disc table is pulled out, 4 screws is removed
and a Optical Pickup is removed.
ﾃﾞｨｽｸﾃｰﾌﾞﾙを引き出します。ｵﾌﾟﾄﾋﾟｯｸｱｯﾌﾟを固定
するﾈｼﾞ、ｲﾝｼｭﾚｰﾀを外し､ﾋﾟｯｸｱｯﾌﾟを交換します｡
A
,
B Two connectors are removed.
A,B ２カ所のｺﾈｸﾀｰを外します。
A
B
Holder
/
ﾎﾙﾀﾞｰ
Disc Table
/
ﾃﾞｨｽｸﾃｰﾌﾞﾙ
Solder is removed from a pattern land.
ﾊﾝﾀﾞをﾊﾟﾀｰﾝﾗﾝﾄﾞから除きます｡
Insulator
ｲﾝｼｭﾚｰﾀｰ
Screw / ﾈｼﾞ(2.6X8)
Stopper /ｽﾄｯﾊﾟｰ
Cam / ｶﾑ
IMPORTANT
重要
The parts of this mark are not supplied.
ｽﾀｰﾏｰｸの部品は供給でき ません｡
Caution
/
注意
Up
①
②
③
④
⑤
⑥
⑦
⑤⑥ ⑦
To Next Page
