Accuphase DP-77 Service Information

－４－

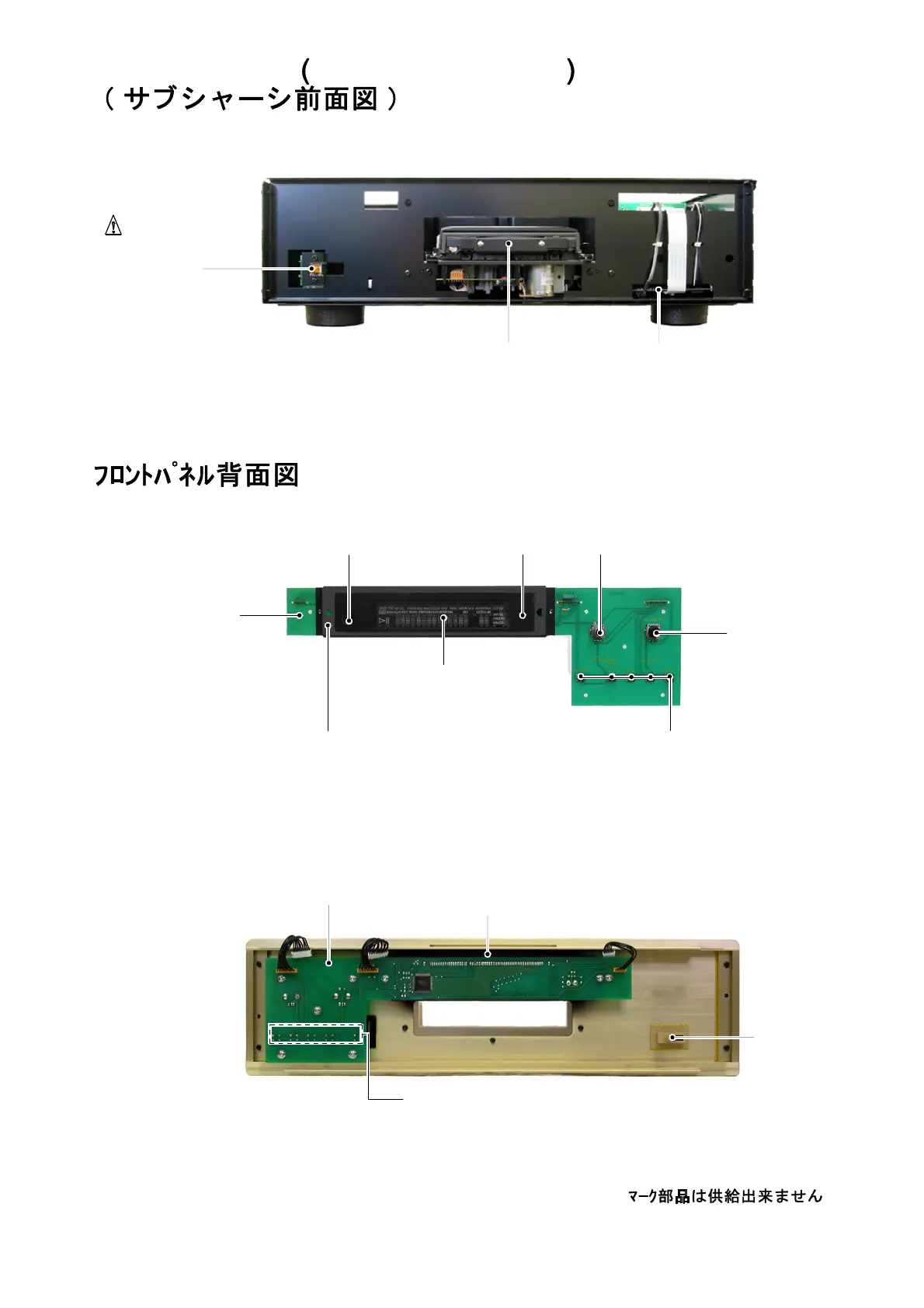

F
R
ONT VIE
W
Sub-chassis side
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0143-00)
Power Push Switch
ﾊﾟﾜｰｽｲｯﾁ
SACD kit /SACD ｷｯﾄ
Mechanical Assembly
ﾒｶﾆｶﾙ Ass'y
(731-0007-00)
Rotary Encoder
ﾛｰﾀﾘｴﾝｺｰﾀﾞｰ/ S6
(339-0006-00)
Push-button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5044-03)
Frame
ﾌﾚｰﾑ
(113-0100-14)
Push-button /5-gang
ﾌﾟｯｼｭﾎﾞﾀﾝ /5連
(388-5059-13)
Explanation of Front-panel back view
mark parts not supplied
Display Assembly
ﾃﾞｨｽﾌﾟﾚｨ Ass'y
(723-0081-00)
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0116-03)
Filter
ﾌｨﾙﾀ
(179-0029-04)
Display Tube
蛍光表示管/FL1
(434-0013-00)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ/S1～5
(354-1116-00)
★
★
★
★
★
★
★
Main Board Assembly
ﾒｲﾝﾎﾞｰﾄﾞ Ass'y
(1-679-080-12)
Display Assembly
ﾃﾞｨｽﾌﾟﾚｨ Ass'y
(723-0081-00)
Infrared Receiver
赤外線ﾚｼｰﾊﾞ /IC2
(NJL64H380A)
Rotary Encoder
ﾛｰﾀﾘｴﾝｺｰﾀﾞｰ/ S7
(339-0008-00)
Rubber Cushion
ｺﾞﾑｸｯｼｮﾝ
(250-2131-04)
Fixed Bracket
化粧板
(159-0097-03)

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
