Accuphase DP-77 Service Information

－７－
IC3 CS8404A-CS
IC4 TC74VHCT04AF
IC5,6 TMS57070FFT
IC7 427-0010-10
IC IC7 S-80845CLY
IC8 CS8427-CS/REVA2
IC9 M93C46-BN6
IC10 TMP87PH00N
IC101 TC74HC00AF
IC201 TC74VHCU04F
Variable/ﾊﾞﾘｷｬｯﾌﾟ D101,102 HVM17
Capacitance Diode
Ferrite Beads BK1608HM601-T FB1,2
ﾌｪﾗｲﾄﾋﾞｰｽﾞ
Ceramic C1～10,21～24 CK725B1E223M16T 0.022uF/25V
Capacitor C25,26,101,201 CG14Y1C103MS 0.01uF / 50V
磁器ｺﾝﾃﾞﾝｻ C34,35,111 CK92Y5V1H104Z 0.01uF /50V
C36,37 CK14B1H102KS 0.001uF/50
V
C50,51 CC14SL1H470JS 47pF / 50V
C105,107 CC14CH1H680JS 68pF / 50V
C106,108 CC14CH1H4R7KS 4.7pF / 50
V
Electorlytic C11,28,104,109,110 CE04W0J471VR 470uF /6.3V
Capacitor C27,29 CE04W0J470SR 47uF /6.3V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C102 CE04W1H2R2SL 2.2uF / 50V
Polyester Film C30,31 CQ922M1H103J-B 0.01uF /50
V
Capacitor C32 CQ922M1H682J-B 6,800pF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C33 CQ922M1H104J-B 0.1uF / 50
V
Polyester Film C103 CF922N1H224JMTFF 2.2uF /50
V
Capacitor
ﾎﾟﾘｴｽﾃﾙ ﾌｲﾙﾑ
ｺﾝﾃﾞﾝｻ
Carbon Film R1 RD142CA101J 100Ω 1/6W
Resistor R2,105,108 RD142CA471J 470Ω 1/6W
炭素被膜抵抗器 R4 RD142CA470J 47Ω 1/6W
R6 RD142CA242J 2.4kΩ 1/6W
R7,9,10,14～18 RD142CA473J 47kΩ 1/6W
R8,106,109 RD142CA103J 10kΩ 1/6W
R11 RD142CA332J 3.3kΩ 1/6W
R13 RD142CA472J 4.7kΩ 1/6W
R20～22,24,31～35 RD142CA221J 220Ω 1/6W
R23 RD142CA100J 10Ω 1/6W
R30 RD142CA331J 330Ω 1/6W
R101,103 RD142CA102J 1kΩ 1/6W
R102 RD142CA393J 39kΩ 1/6W
R104,107 RD142CA105J 1MΩ 1/6W
Resistor Array RA1 RD92AK05C473J18
抵抗ｱﾚｨ RA2 RD92AK16C473J18
RA3 RD92AK13C473J18
RA4 RD92AK04C473J18
RA5 RD92AK09C473J18

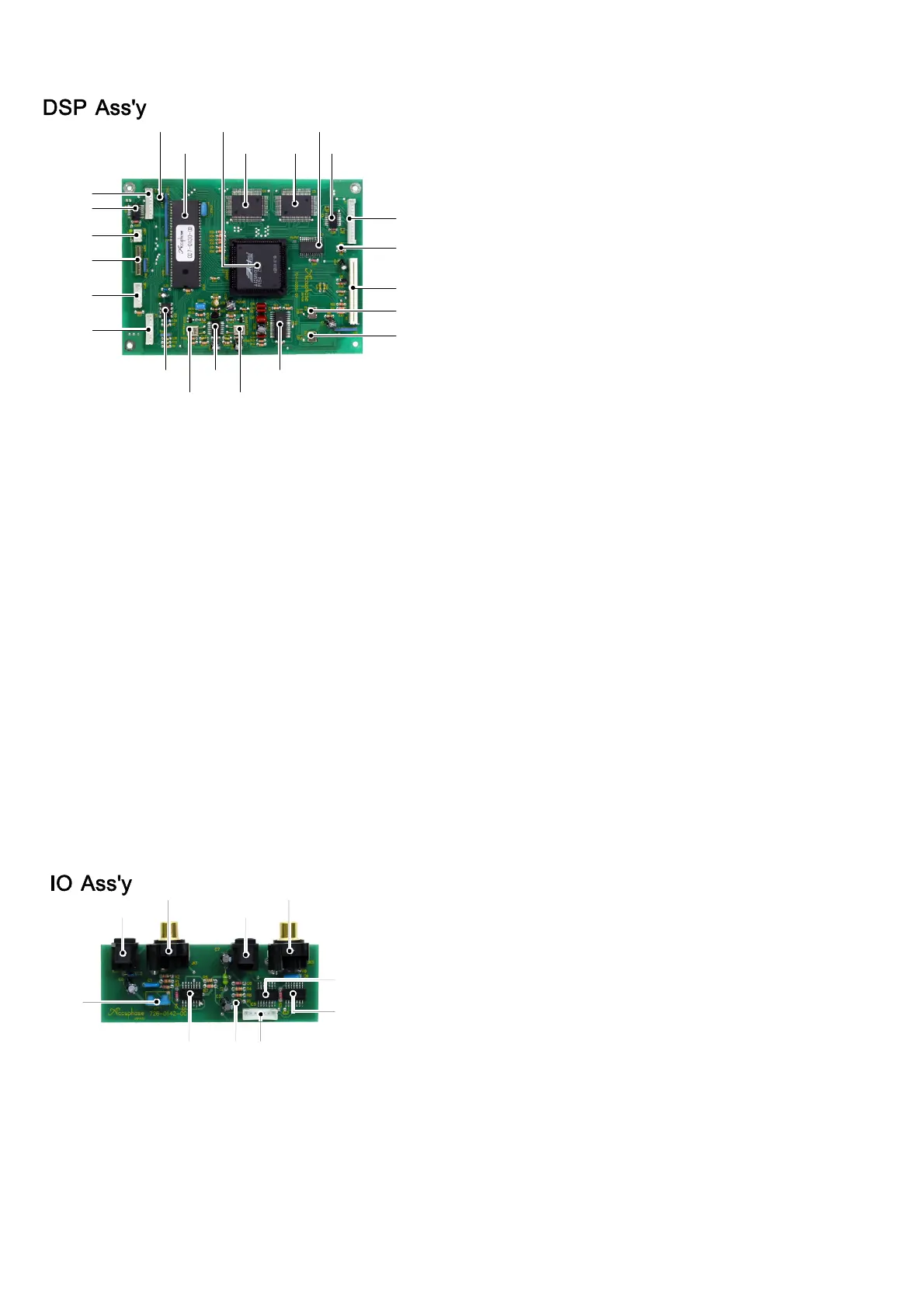

DSP
A
ssembly (724-0055-00)
IC Socket SOCKET1 300-1104-00
ICｿｹｯﾄ
Connector Plug K1 308-1402-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3,4 308-0905-00
K903 308-0707-00
K904 308-0306-00
Connector Jack K2 307-3001-00
ｺﾈｸﾀｼﾞｬｯｸ K901 307-1607-00
Crystal IC11 425-0015-00
水晶発振器 IC12 425-0016-00
水晶振動子 XTAL101 527-0038-00
水晶振動子 XTAL102 527-0039-00
ｾﾗﾛｯｸ XTAL3 527-0025-00
Choke Coil L1 507-4705-00
ﾁｮｰｸｺｲﾙ
Transistor Q1 2SC3113-B
ﾄﾗﾝｼﾞｽﾀ Q101 2SC982TM
FET Q2 2SJ105-GR,Y
K2
K1
Q1
IC10
IC3
IC4
IC5
IC6
IC201
IC9
K903
K901
K904
K3
IC101 IC8
IC11
XTAL101
XTAL102
IC12
IC7
K4
SOCKET1
IC7
IC1
LPF1
X1 K1
IC2
IC3
IC5
JK1
JK3
IC4
Pin Jack JK1,3 302-0116-00
ﾋﾟﾝｼﾞｬｯｸ
Connector Plug K1 308-0707-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Choke Coil L1 507-4705-00
ﾁｮｰｸｺｲﾙ
Low Pass Filter LPF1 520-5005-00
ﾛｰﾊﾟｽﾌｨﾙﾀｰ
IC IC1,3 TC74HCU04AF
IC5 TC74VHCT04AF
Opt-transmitter IC2 GP1FA513TZ
ｵﾌﾟﾄﾄﾗﾝｽﾐｯﾀ
Optical Receiver IC4 GP1FA513RZ
ｵﾌﾟﾄﾚｼｰﾊﾞ
Digital Transistor X1 RN1202
ﾃﾞｨｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ
Ceramic Capacitor C1,6 CK92FJ1H474Z 0.47uF /50V
磁器ｺﾝﾃﾞﾝｻ C2 CK92Y5V1H104Z 0.1uF /50V
C4,8,9 CG14Y1C103MS 0.01uF /16V
Electorlytic Capacitor C3,5,7 CE04W0J470VR 470uF /6.3V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1 RD142CA241J 240Ω 1/6W
炭素被膜抵抗器 R2,3 RD142CA101J 100Ω 1/6W
R4 RD142CA473J 47kΩ 1/6W
R5 RD142CA104J 100kΩ1/6W
R7 RD142CA221J 220Ω 1/6W
R8 RD142CA222J 2.2kΩ1/6W
Metal Film Resistor R6 RN142CK75R0F 75Ω 1/6W
金属被膜抵抗器
IO Assembly (726-0142-00)

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
