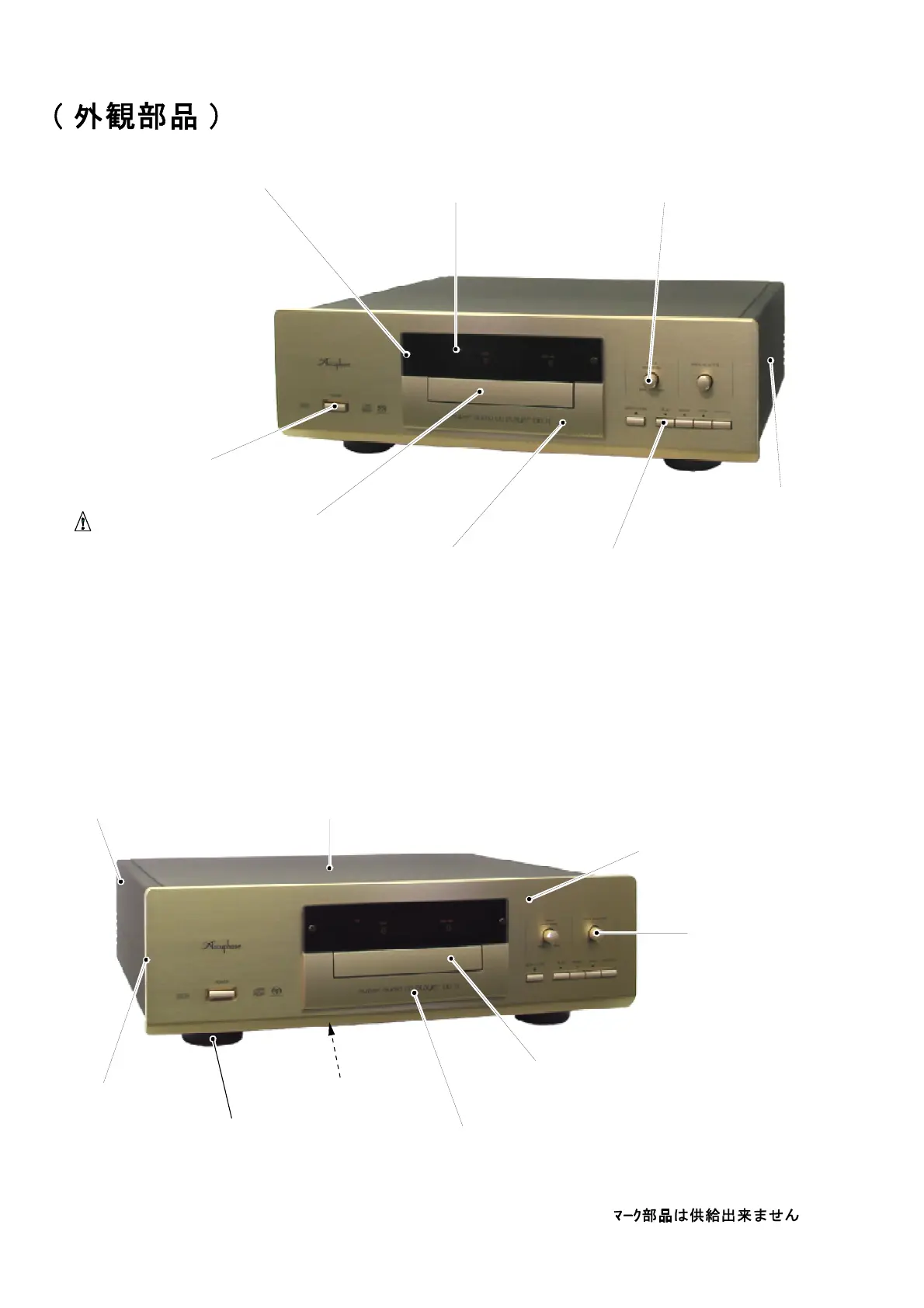

Accuphase DP-77 Service Information

Side Panel
ｻｲﾄﾞﾊﾟﾈﾙ
(139-0035-22)
Push-button for POWER
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388-5044-03)
Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(726-0143-00)
Power Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1024-00)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130-0169-01)
Front Glass
ﾌﾛﾝﾄｶﾞﾗｽ
(172-0116-03)
Foot
脚
(238-0023-00)
Knob
ﾂﾏﾐ
(383-1201-03)
Decoration Screw
飾りﾈｼﾞ
(630-0304-14)
Washer
ﾜｯｼｬ
(637-9045-04)
Sub Panel /not supply
ｻﾌﾞﾊﾟﾈﾙ
(134-0138-03)
Bottom Plate
ﾎﾞﾄﾑﾌﾟﾚｰﾄ
(155-0078-02)
Top Plate Assembly
ﾄｯﾌﾟﾌﾟﾚｰﾄAss'y
(150-0069-12A)
Top Plate(B)
ﾄｯﾌﾟﾌﾟﾚｰﾄB
(150-0053-03)
－１－
E
X
PLANATION OF SU
R
FACE PA
R
TS
Push-button /5-gang
ﾌﾟｯｼｭﾎﾞﾀﾝ/5連
(388-5059-13)
Tray Sub-panel
ﾄﾚｨｻﾌﾞﾊﾟﾈﾙ
(134-0130-04)
Sub Panel
ｻﾌﾞﾊﾟﾈﾙ
(134-0138-03)
★
★
★
mark parts not supplied
★
★
★
★
★
Knob
ﾂﾏﾐ
(383-1201-03)
Tray Sub-panel
ﾄﾚｨｻﾌﾞﾊﾟﾈﾙ
(134-0130-04)
Binding Screw
ﾊﾞｲﾝﾄﾞねじ/4pcs.
(604-0408-00)
Washer
平ﾜｯｼｬ/4pcs.
(637-0042-07)
Panel End-cap
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
(132-0098-04
)
★

Accuphase DP-77 Specifications

Optical Specifications

SACD wavelength	650 nm
CD wavelength	780 nm
Optical output wavelength	660 nm

Digital Processor Specifications

Sampling frequencies	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
High sampling frequencies	176.4kHz, 192kHz
Dynamic range	114 dB

Power

AC voltage	120V/230V 50/60Hz
Power consumption	24 W
Net weight	17.7 kg

Weight and Dimensions

Width	475 mm
Height	151 mm
Depth	397 mm
