EVOLUTION ELECTRIC STEAMER
20
REF
LETTER
POSSIBLE CAUSE TROUBLESHOOTING STEPS
J
Reed Switch The reed switch is located inside the sensor peg.
With the float ball in place:
Confirm continuity through the switch by testing
at the Control Relay 1: Check for voltage across
the violet wire attached to Terminal #7 and the
yellow wire attached to Terminal #8. Disconnect
wires to test (FIG 3.1G).
If voltage is present - replace the control relay.
If voltage is not present, replace the reed switch

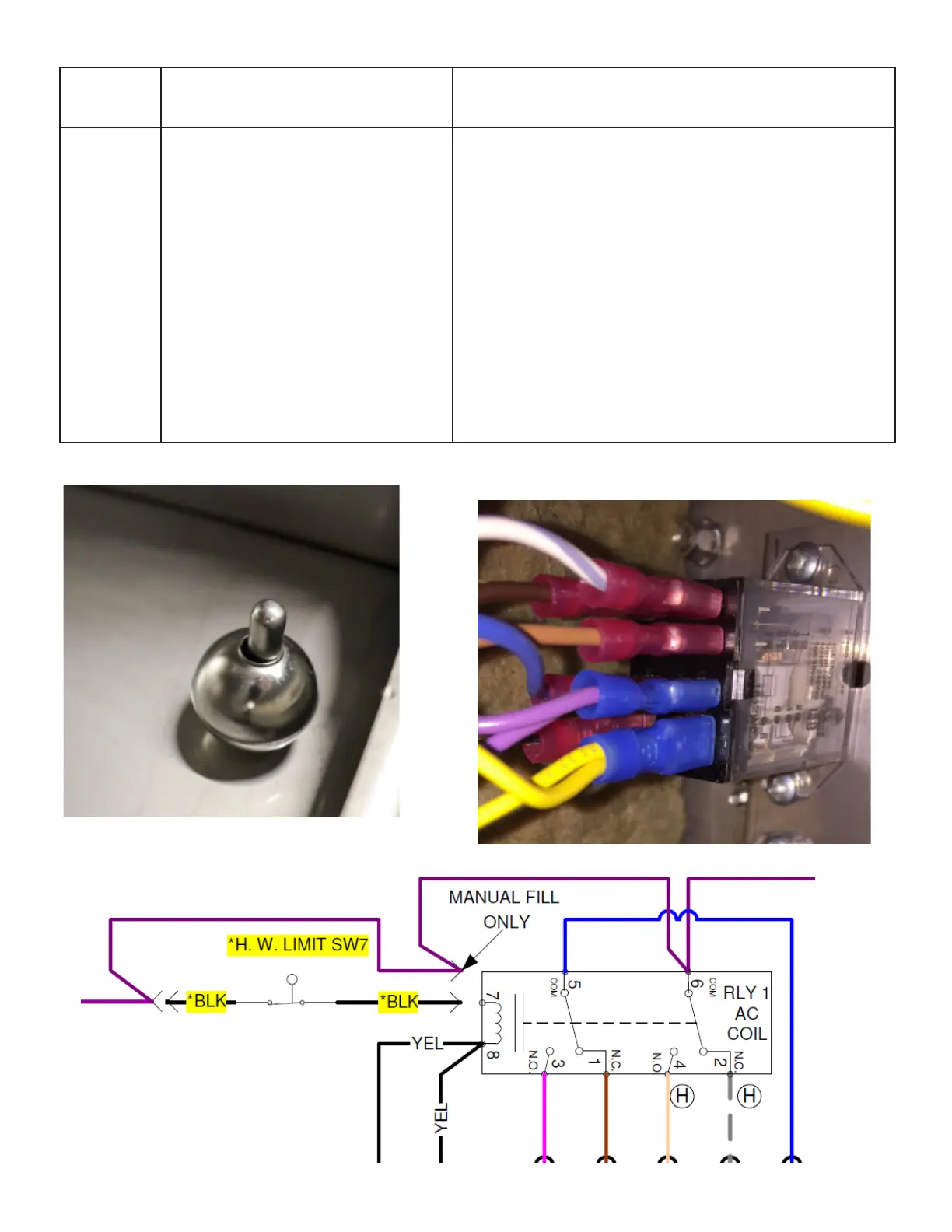

FIG 3.1G
FIG 3.1F
