4.4 Cast Heater Removal & Replacement
The following parts are included in the repair kit:
Cast Heater
Installation
Instructions
Thermal
Paste
1/4-20#
Locking
Nuts
Overtemp
Switch
Part Number Description QTY
AT1A-3531-X Cast Heater Assembly ( X = based on Voltage
and kW rating)
1
AT0H-3412-2 Thermal Joint Compound
1
AT1E-2653-X OverTemp Switch ( X = 3 or 4 based on Kit
ordered)
1
AT0F-3401-1 Nut, Special Locking 1/4 -20UNC-2B
25
AT0H-5176-1 Pocket Comb Fine Tooth
1

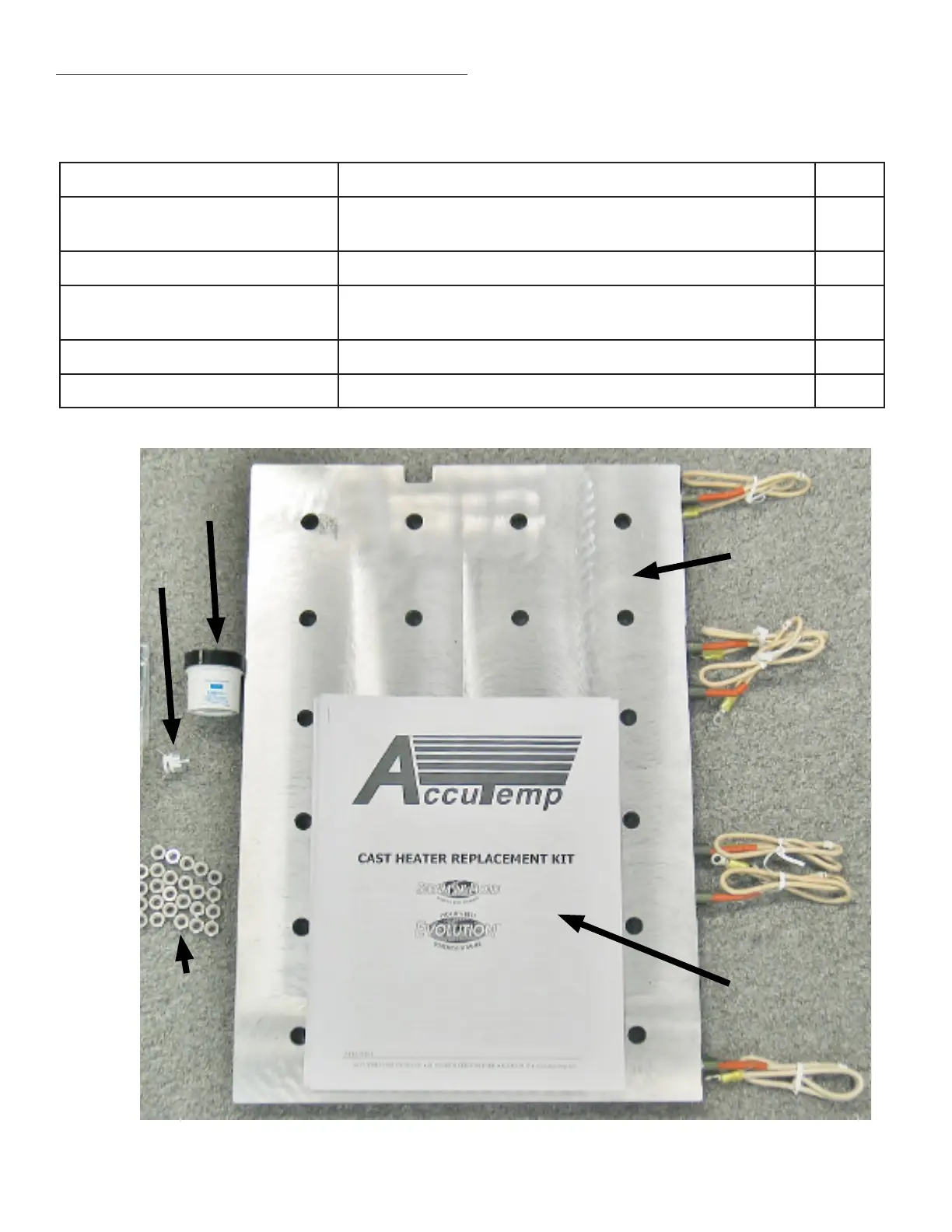

FIG 4.4A
