AccuTemp Evolution - Location of Electrical Components

SP8026-1909
EVOLUTION ELECTRIC STEAMER
28

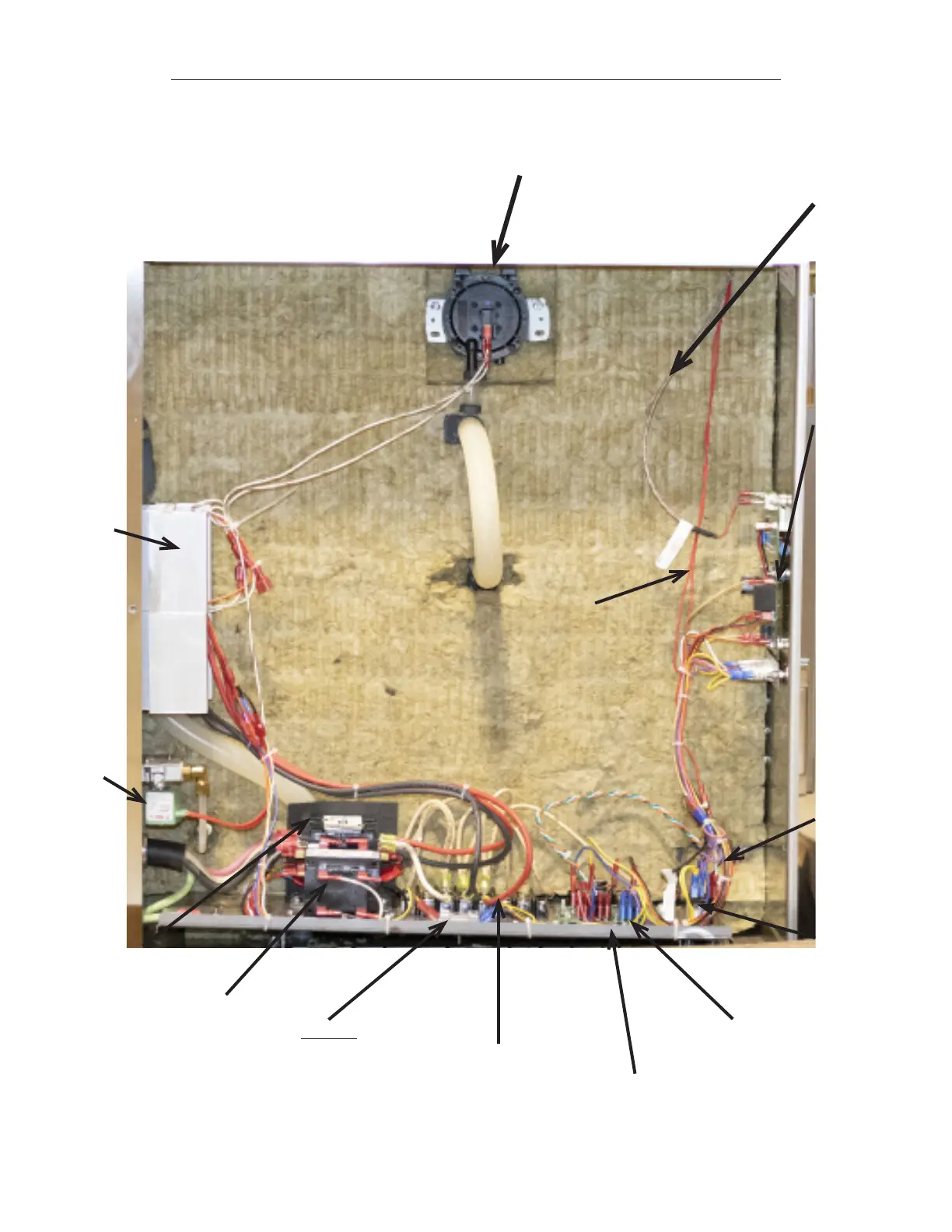

3.5 LOCATION OF ELECTRICAL COMPONENTS
Control
Relay
Door Switch
wire (can be on
left or right of
unit)
Water Sensor
Control Board
Fuses
2x 1.25A
Cast Heater
Terminal Strip
Control /
Keypad
Board
Transformer
Water
Sensors
Pressure
Switch
Solid
State
Relays
Fill
Solenoid
(auto-fill)
Contactor
RTD sensor
wire
Alarms under
control plate
