AccuTemp Evolution - Component Service Procedures; Power and Water Level Component Service

SP8026-1909
EVOLUTION ELECTRIC STEAMER
30
4.0 Removal and Replacement of Components
4.1 Removal and Replacement of Supply Power Components

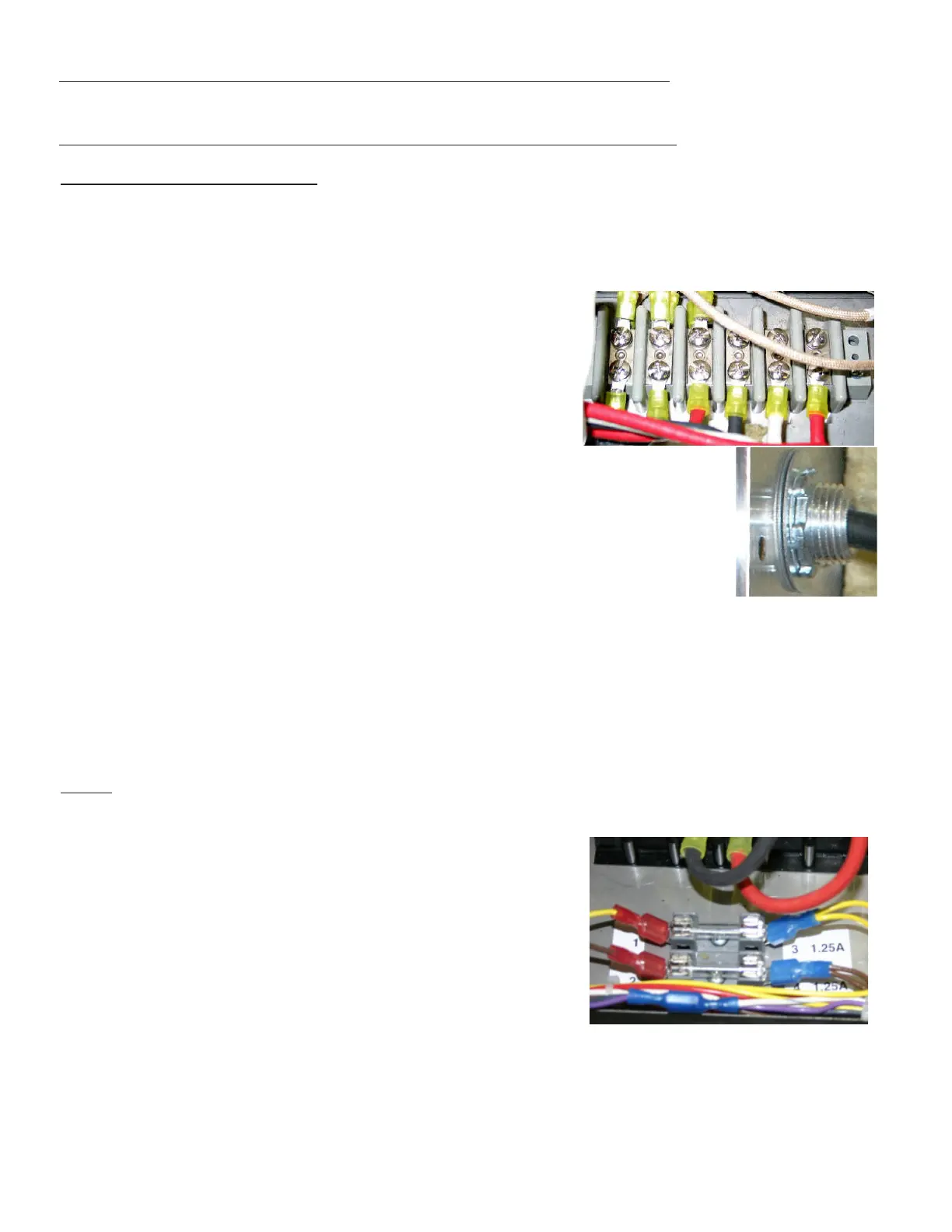

CORD & PLUG ASSEMBLY
1. Unplug the Unit.
2. Remove the Left-Side Panel by removing
the Sheet Metal Screws holding it in
place.
3.
A. SINGLE PHASE
Disconnect the Power Cord Leads Black,
White from the primary side of the
contactor and disconnect the ground
wire (green) from chassis.
B. THREE PHASE
Disconnect the Power Cord Leads Black,
White and Red from the primary side
of the contactor and disconnect the
ground wire (green) from chassis.
4. On the inside of the unit, remove the
retaining nut on the threads of the Power
Cord Cable Fitting & pullout the Power
Cord.
5. Re-install in reverse order.
FUSE
1. Unplug the Unit.
2. Remove the Left-Side Panel by removing
the Sheet Metal Screws holding it in
place.
3. Pry the Fuse(s) out of the Fuse Block with
a flat-head screwdriver or fuse puller.
2 x 1.25A
4. Re-install in reverse order.
FIG 4.1A
FIG 4.1B
