AccuTemp Evolution - Page 31

SP8026-1909
EVOLUTION ELECTRIC STEAMER
31

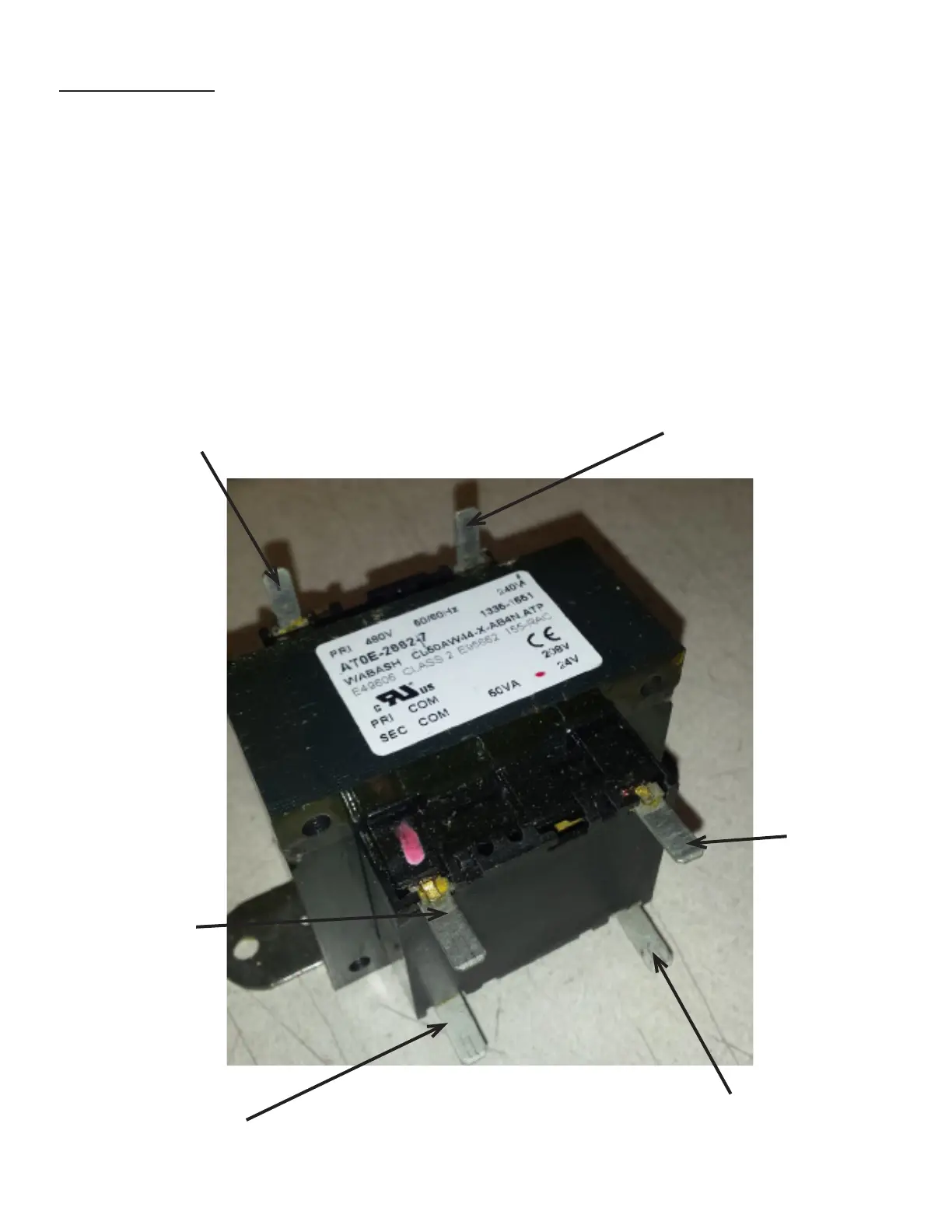

FIG 4.1C
TRANSFORMER
1. Unplug the Unit.
2. Remove the Left-Side Panel by removing the Sheet Metal Screws
holding it in place.
3. Disconnect the wires (note the wire color to its location terminal).
4. Remove the 2 mounting nuts and then remove the Transformer (FIG
4.1C).
5. Re-install in reverse order.
Primary
480V Tap
Secondary
24V Tap
Primary
208V Tap
Primary
240V Tap
Secondary
24V COM Tap
Primary
COM Tap
