AccuTemp Evolution - R&R of Door Assembly

SP8026-1909
EVOLUTION ELECTRIC STEAMER
43

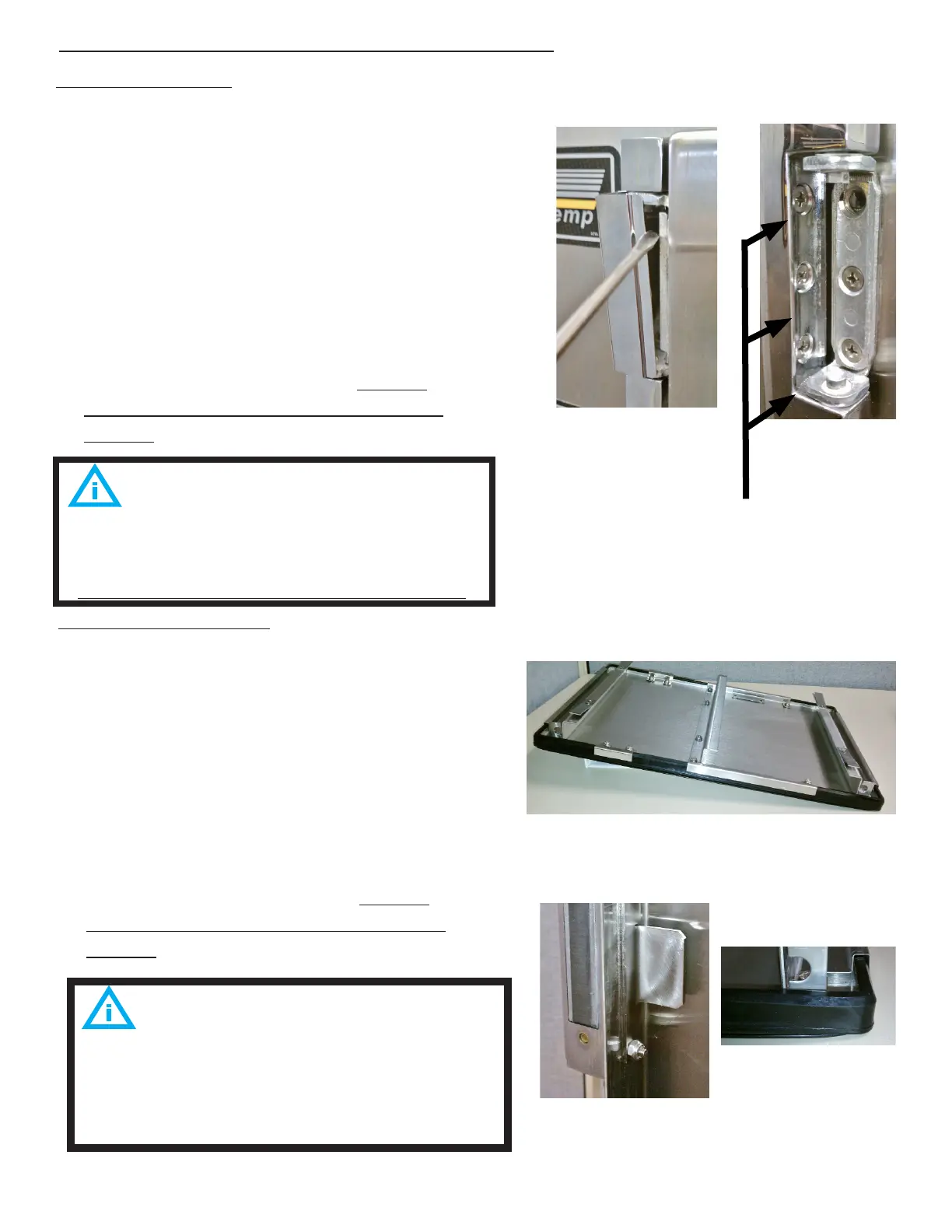

4.5 Removal and Replacement of Door Assembly
If the Door Handle Latch Is Moved to the
Opposite Side, Ensure That the Door Switch Is
Moved to the Corresponding Door Handle Latch
Side .
STEAMER WILL NOT OPERATE IF NOT DONE.
DOOR ASSEMBLY
1. Unplug the unit and shut the Door.
2. Remove the Hinge Covers (FIG 4.5A).
3. Remove the 3 hinge screws going into
the face of the steamer of the Bottom
Hinge (FIG 4.5B).
4. While supporting the Door on the hinge-
side, remove the 3 hinge screws into the
face of the steamer of the Top Hinge.
5. Pull the door handle and remove the
Door.
6. Re-install in reverse order. Ensure
Anti-seize is re-applied to all hinge
screws.
Face Screws
Ensure That the Inner Door is Reinstalled
with its Middle Brace Bar Behind the Door Latch
Tab FIG 4.5D
Also, Ensure That the Screw Retainer Openings
are Lined-Up with the Door’s Hinge Side FIG 4.5E
INNER-DOOR PANEL
1. Unplug the unit and shut the Door.
2. Remove the Hinge Covers (FIG 4.5A).
3. Remove the very bottom screw on the
door hinge-side of the Bottom Hinge.
4. Remove the very top screw on the door
hinge-side of the Top Hinge.
5. Slowly open the door as the inner panel
may fall when door is opened.
6. Lift and pull out the Inner Door Panel.
7. Re-install in reverse order. Ensure
Anti-seize is re-applied to all hinge
screws.
Inner Door
FIG 4.5A FIG 4.5B
FIG 4.5C
FIG 4.5D
FIG 4.5E
