Basic Information

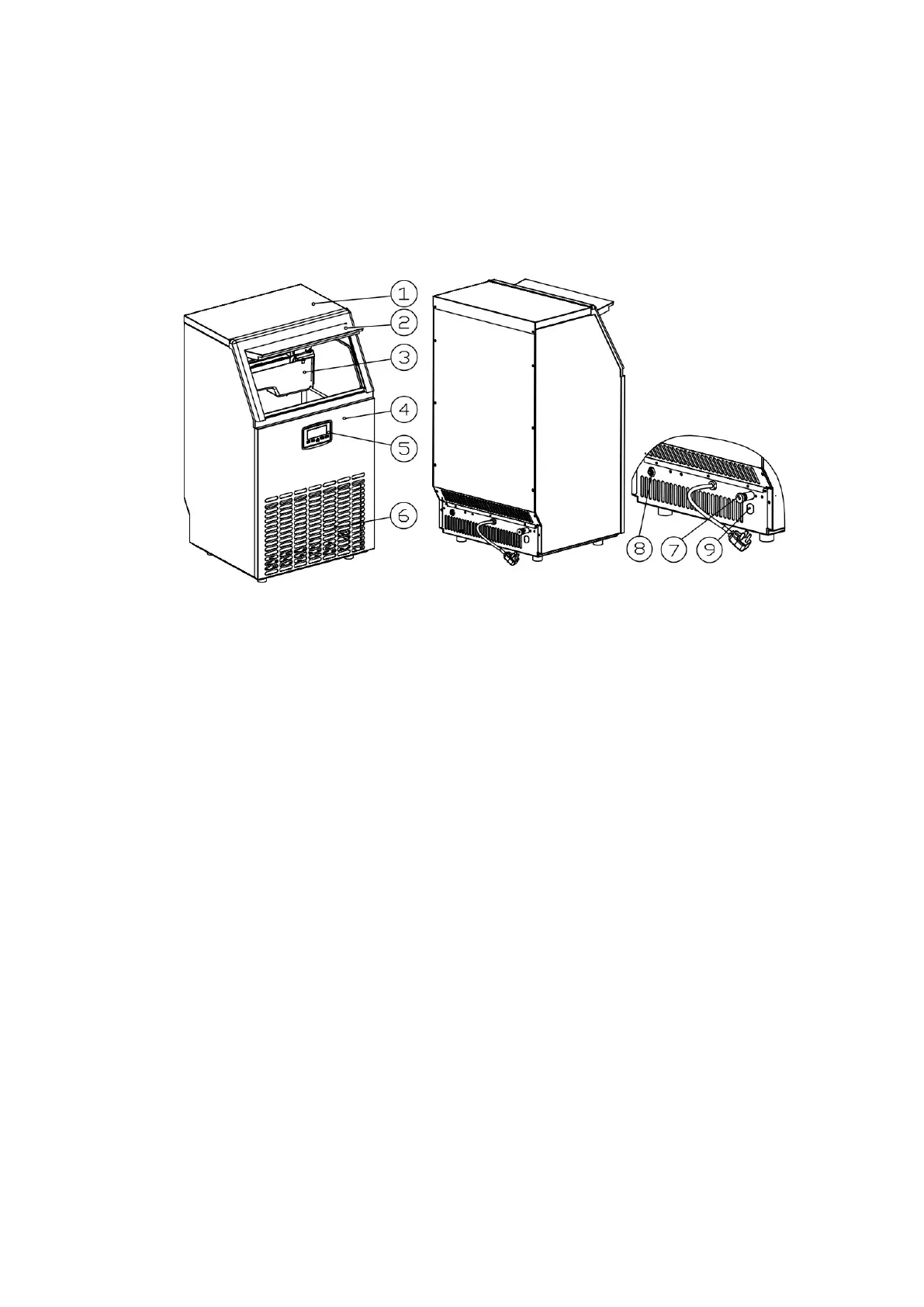

Main Structure
1. Top cover
2. Ice door
3. Ice making and its water tank components: including ice making evaporator, water tank,
water pump and some detection parts
4. Front panel
5. Operation panel
6. Air outlet: The air must be well circulated; the hot air will be blown out when the equipment
is running.
7. Drainage port: For normal use, plug it in with a cover. When it is time to drain, remove the
lid and connect the white drain
8. Water supply inlet: Used to connect the water supply pipe
9. Water inlet for bottled water: Used for places where there is no water supply pipe but
bottled water
Accessories:
2 meters long white drain pipe
faucet quick connector
6.35mm diameter white water supply pipe (3m long)
transparent silicone water supply pipe
Figure 2
