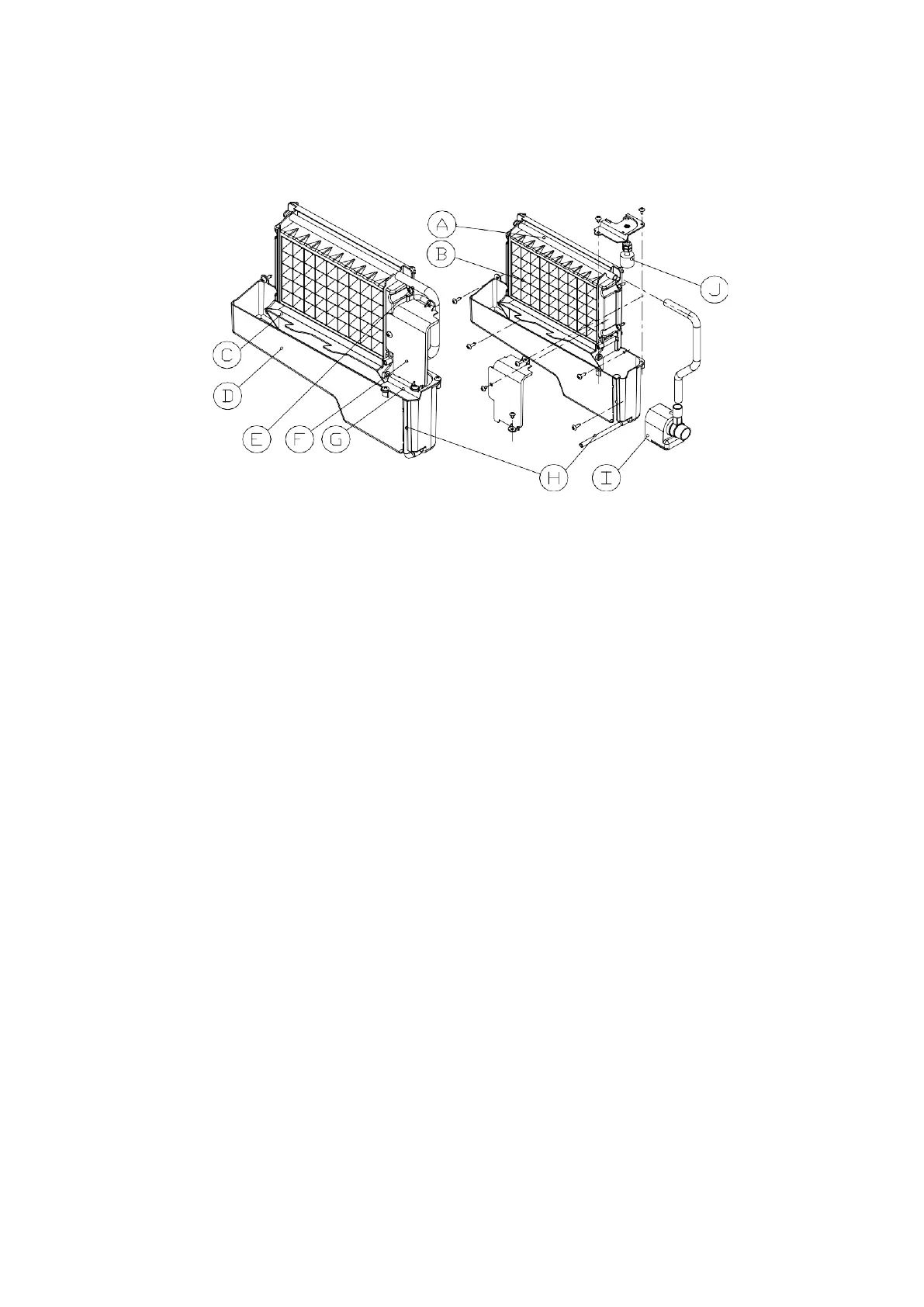

Ice Making and Water Tank Parts
A. Water divider: There are nine small holes from which water will flow. If no water flows out, it
can be disassembled for cleaning
B. Evaporator (ice making module)
C. Ice full detection board: used to detect whether the inner cabinet is full of ice. Check if the
ice making process is completed
D. Water tank
E. Water supply pipe
F. Cover plate on the right side of the evaporator
G. Water level switch mounting plate
H. Water tank drain pipe: When making ice, the pipe should be inserted in the groove of the
water tank wall; and the pipe should be removed when draining
I. Water Pump
J. Water level detection switch
Figure 3
