6 Chapter 1
Aspire T310/Acer Power F1

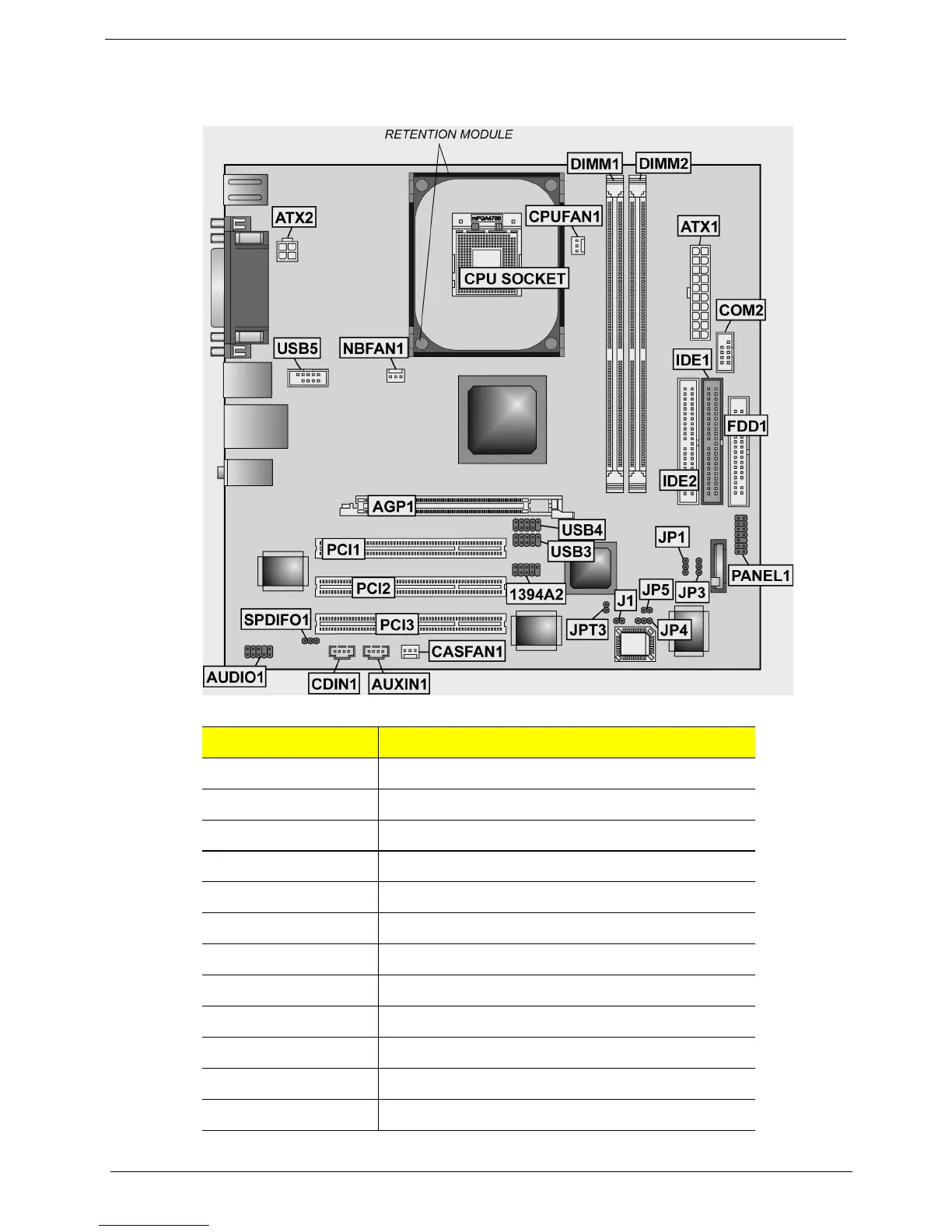

Label Description
1394A2 IEEE 1394 Header
AGP1 Accelerated Graphics Port
ATX1 Standard 20-pin ATX power connector
ATX2 ATX12V power connector
AUDIO1 Front audio connector
AUXIN1 Auxiliary Audio input header
CASFAN1 Case fan connector
CDIN1 Primary CD-in Connector
COM2 Onboard serial port header COM2
CPU SOCKET Micro PGA 478-pin socket for Pentium 4 CPUs
CPUFAN1 Cooling fan for CPU
DIMM1-DIMM2 Two 184-pin DDR SDRAM
