Chapter 3 47

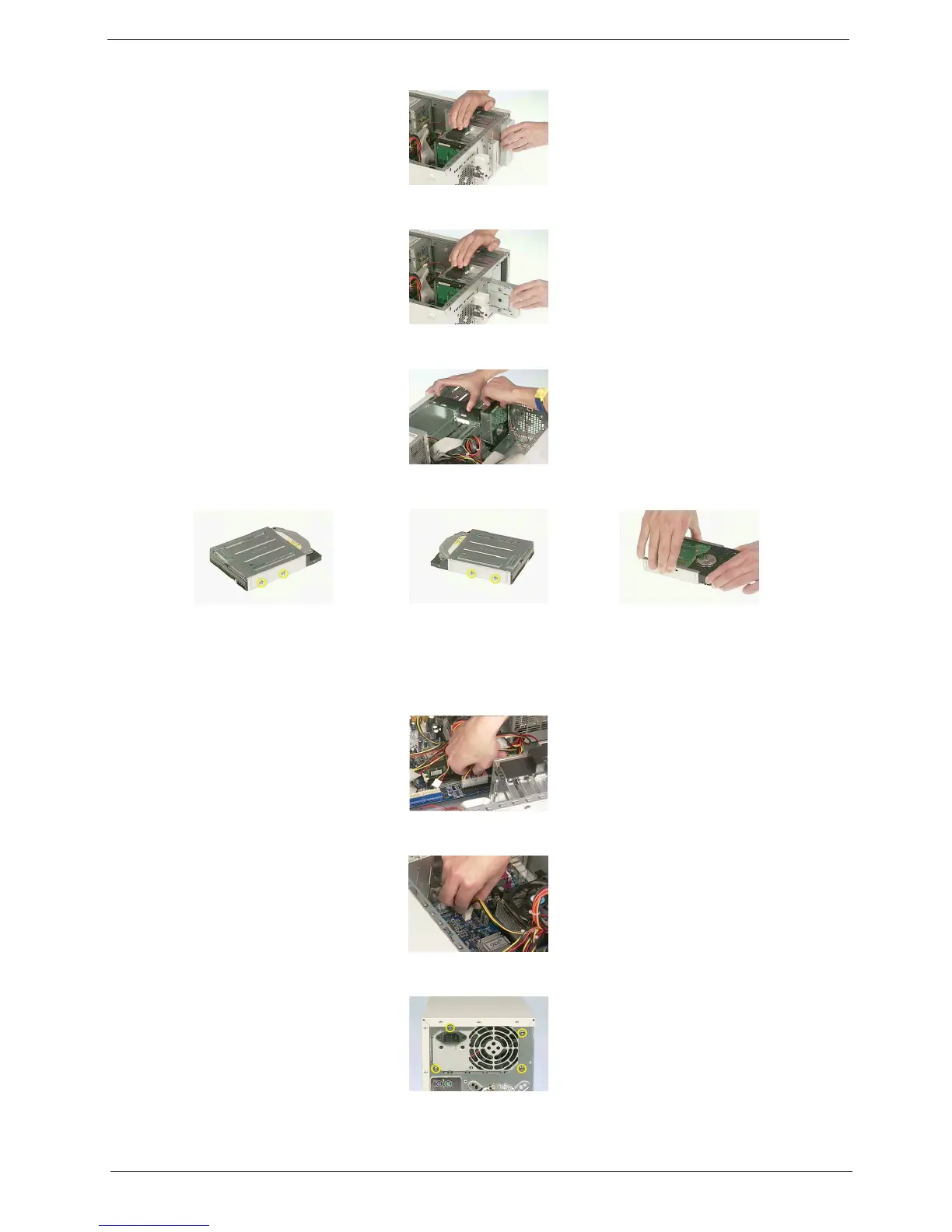

5. Press the latch and remove the CD-ROM drive.
6. Press the latch and remove the floppy drive.
7. Press the latch again to release the hard disk module.
8. Detach the HDD from the bracket.
Removing the Power Supply
1. Remove the main ATX power connector as shown here.
2. Remove the Pentium 4(ATX-12V) power connector as shown here.
3. Remove the four screws as shown here.
