74 Chapter 5

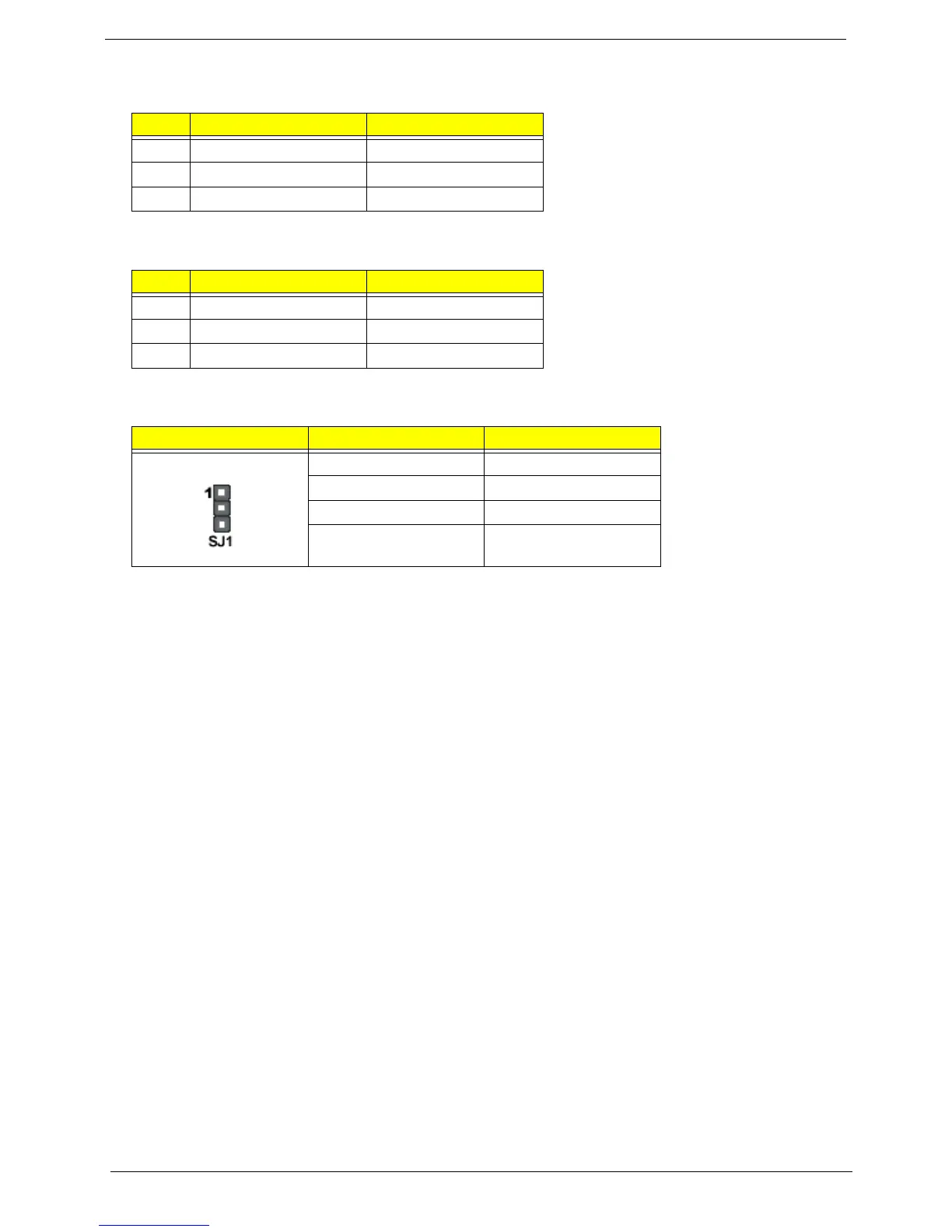

CPUFAN1/CASFAN1/NBFAN1: Fan Power Connectors
Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3 Sense Sensor
SJ1: Single Color LED Header
Pin Signal Name Function
1 ACPI LED MSG LED(-) Green
2 ACPI LED MSG LED(-) Green
3 SB5V Power LED(+)
ACPI LED Function
Setting Signal Name Color
S0 Light
S1 Blinking
S3 Blinking
S4/S5 Dark
