2-14 User’s Manual
2.7 Ports
Ports allow you to connect peripheral devices to your notebook computer as
you would with a desktop PC. The ports are found on the rear panel; PC
card slots are found on the left panel of the notebook.
See Chapter 4 on how to connect external devices to the
notebook.

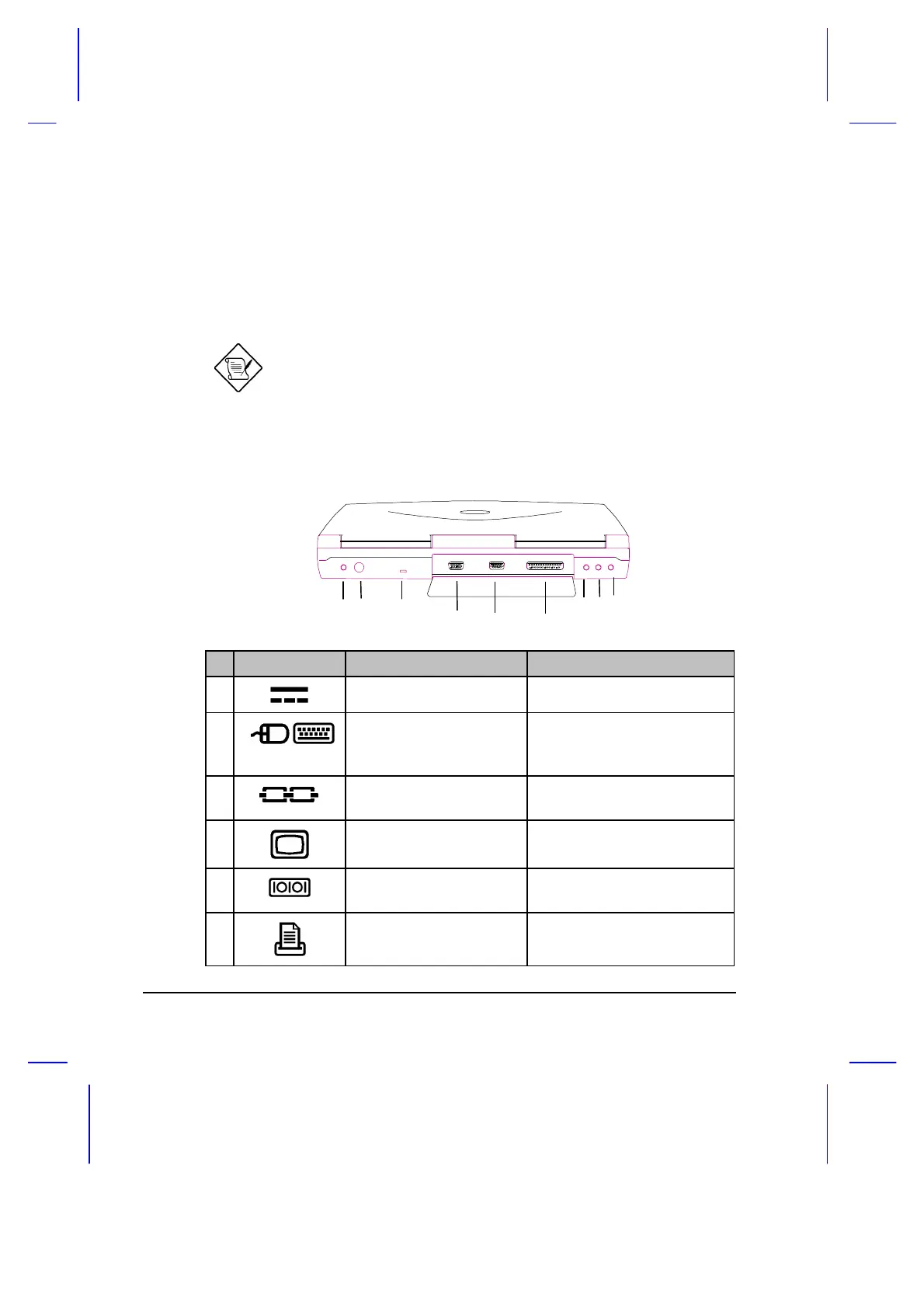

2.7.1 Rear Ports
# Icon Port Connects to...
1 DC-in Port AC adapter and power outlet
2
PS/2 Port PS/2-compatible device
(e.g., PS/2 keyboard,
keypad, mouse)
3 Security Notch Kensington-compatible key-
based computer security lock.
4 External CRT port Monitor
(up to 1024x768, 256-colors )
5 Serial Port
(UART16650-compatible)
Serial device
(e.g., serial mouse)
6 Parallel Port
(EPP/ECP-compliant)
Parallel device
(e.g., parallel printer)
1
2 3
7
8
9
4
5
6
