Acer S1200 - EDID Key-In Procedure

S1200
Condential
6-4

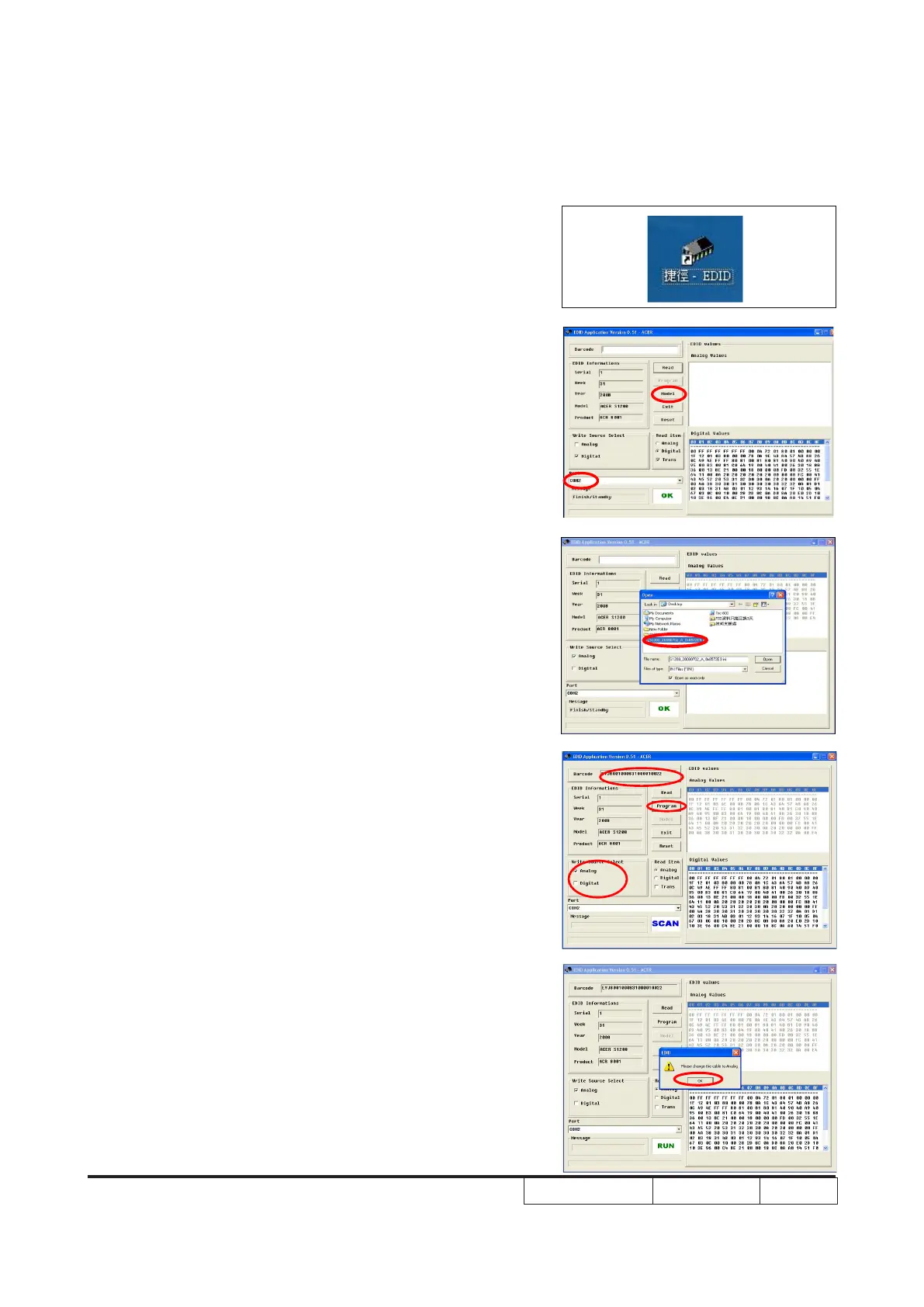

6-4 EDID Key-In Procedure
1. Execute EDID Program
(1) Click on "EDID" to execute EDID
program.
2. Process
(1) Check the COM port is "COM 2"
(Select the COM port which you are
using).
(2) Click the "Model" button.
(3) Choose the source le
"S1200-20080702-A-0X8572E9ini"
and then open it.
3. Process
(1) Key in the serial number into the
barcode blank space.
(2) In "Write Source Select" item,select
"Analog".
(3) Click "Program" button.
4. Process
(1) "Please change the cable to Analog"
will be shown on the screen.
(2) Please press "Ok" button.
2
3
1
4
(1)
(2)
(3)
(1)
(2)
(3)
