AR-B1479 User’s Guide
18

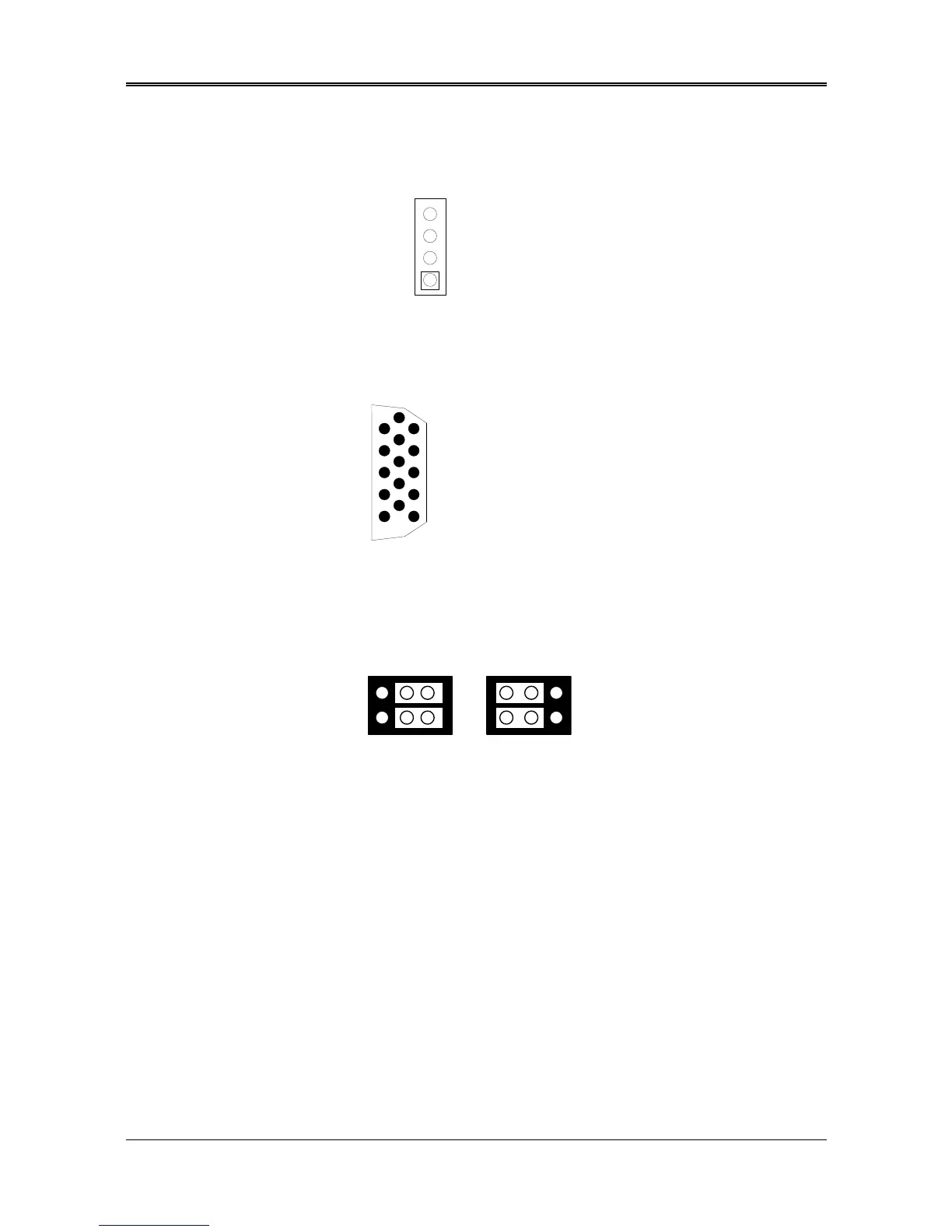

3.2.7 Power Connector (PWR1)
The PWR1 is a 4-pin power connector. It’s the standard connector on all Acrosser boards.
2 GND
3 GND
4 +5V
1 +12V
VDC
PWR1
PWR1: 4-Pin Power Connector
3.2.8 CRT Connector (DB1)
DB1: CRT Connector
3.2.9 LCD Supported Voltage LCD1 Select (JP1)
(Only for AR-B1479B)
6
4
2
5
3
1
6
4
2
5
3
1
3.3V (Factory Preset) 5V
Figure 0-3 JP1: LCD Supported Voltage LCD1 Select
DB1(CRT Connector)
6
10
15
11 1
2
3
4
5
1 Red
2 Green
3 Blue
13 Horizontial
14 Vertical Sync
4, 9, & 11 Not used
5 & 10 Ground
6, 7 & 8 AGND
12 DDC DATA
15 DDC CLOCK
