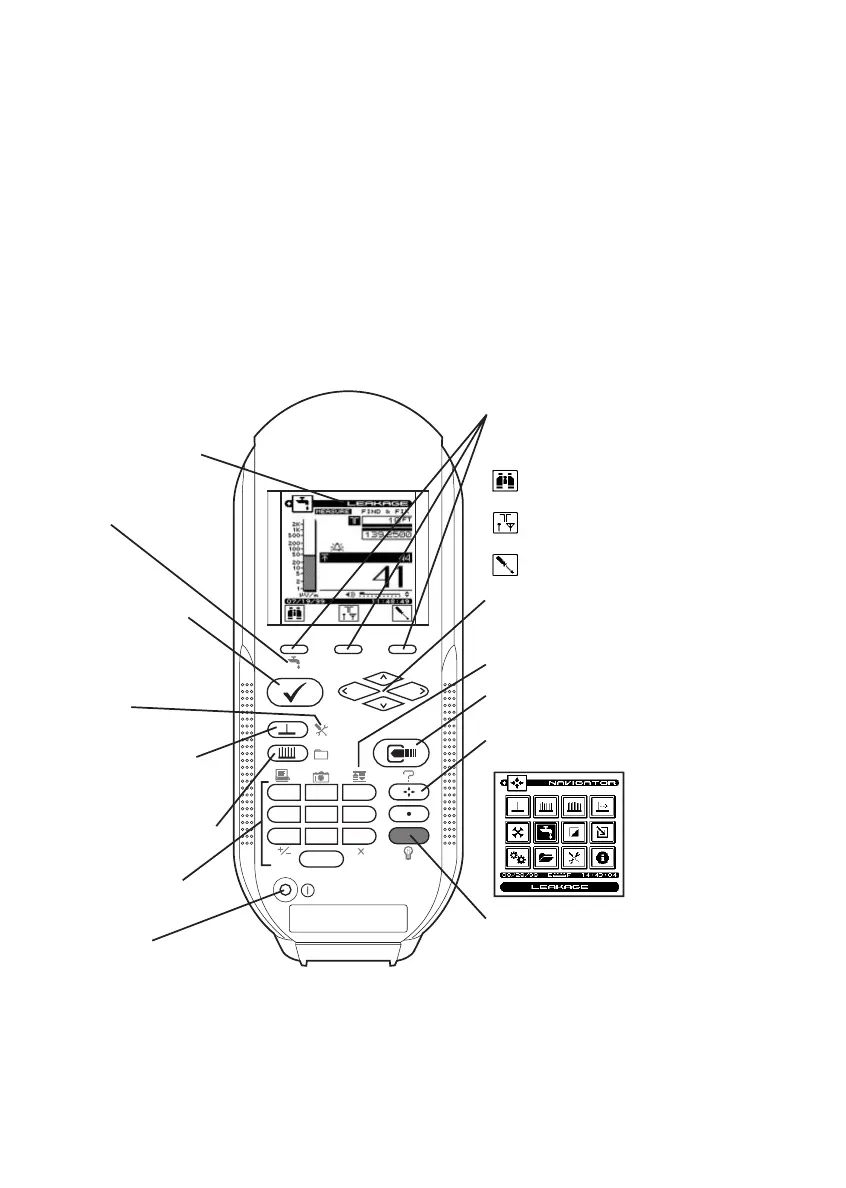

~ Review of Leakage Meter
Components
The field technician should have a
thorough understanding of the func-
tions available on the leakage meter
and must be able to use the meter cor-
rectly. The information summarized
below provides an overview of the
meter components and functions that
a field technician should understand.
3-4
12 3
45 6
78
0
9
ABC DEF GHI
JKL MNO PQR
STU VWX
space
YZ
Title Bar – title of screen
Soft Keys – represented by
icon obove
Shift Key/Secondary Function –
depress prior to choosing a
secondary function (indicated in green)
Navigator Key – brings up navigator
screen, travel to any mode
Enter Key – press after making
a selection
Auto Scale – resets the peak reading
Arrow Keys – makes selection move
up, down, left, or right (also, increase
or decrease volume)
Installation Check –
determines if subscriber
connections meet system
level requirements
Leakage
Configure –
meter set-up
Level Measurement –
a single channel display of
video and audio carrier levels
Scan File – 6 channel scan
or all channel scan
Value/Test Keypad –
enter data
Power Button –
turns unit "On" or "Off"
Leakage Soft Keys
used to toggle between "Measure-
ment and "Find & Fix" modes
used to select the correct antenna
type when locating leaks
used to adjust for calibrated leaks
