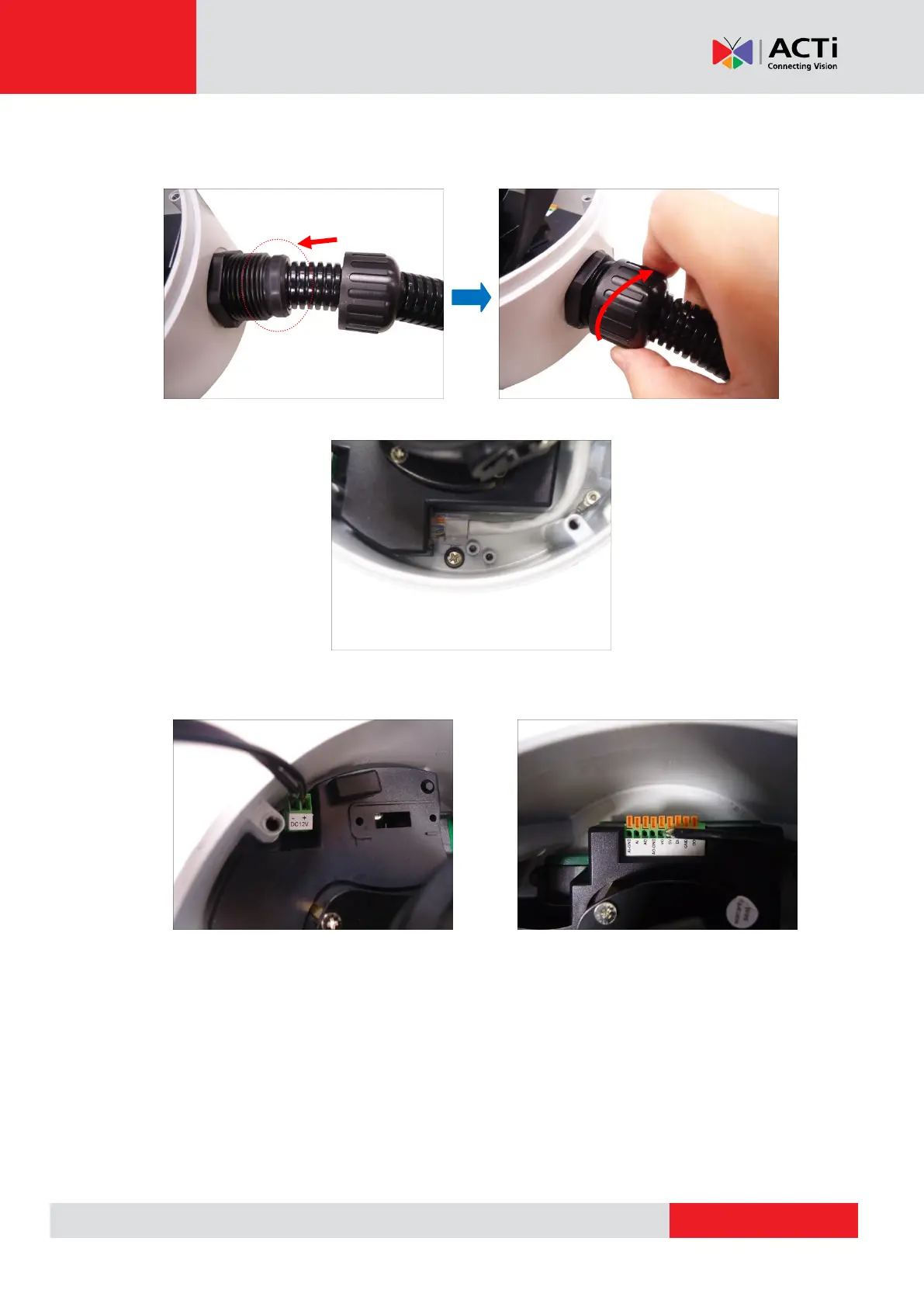

8. Insert the sealing insert to the gland body and then attach the clamping nut to complete the
cable solution.
9. Connect the network cable to the Ethernet port of the camera.
10. Connect other cables (if any) to their respective connectors. See Other Connections on
page 27 for detailed instructions.
Example of DC12V Connection Example of Video-Out (VO) Connection
