Option 2: Cable Passing Along the Surface and the Camera Side Cable Hole

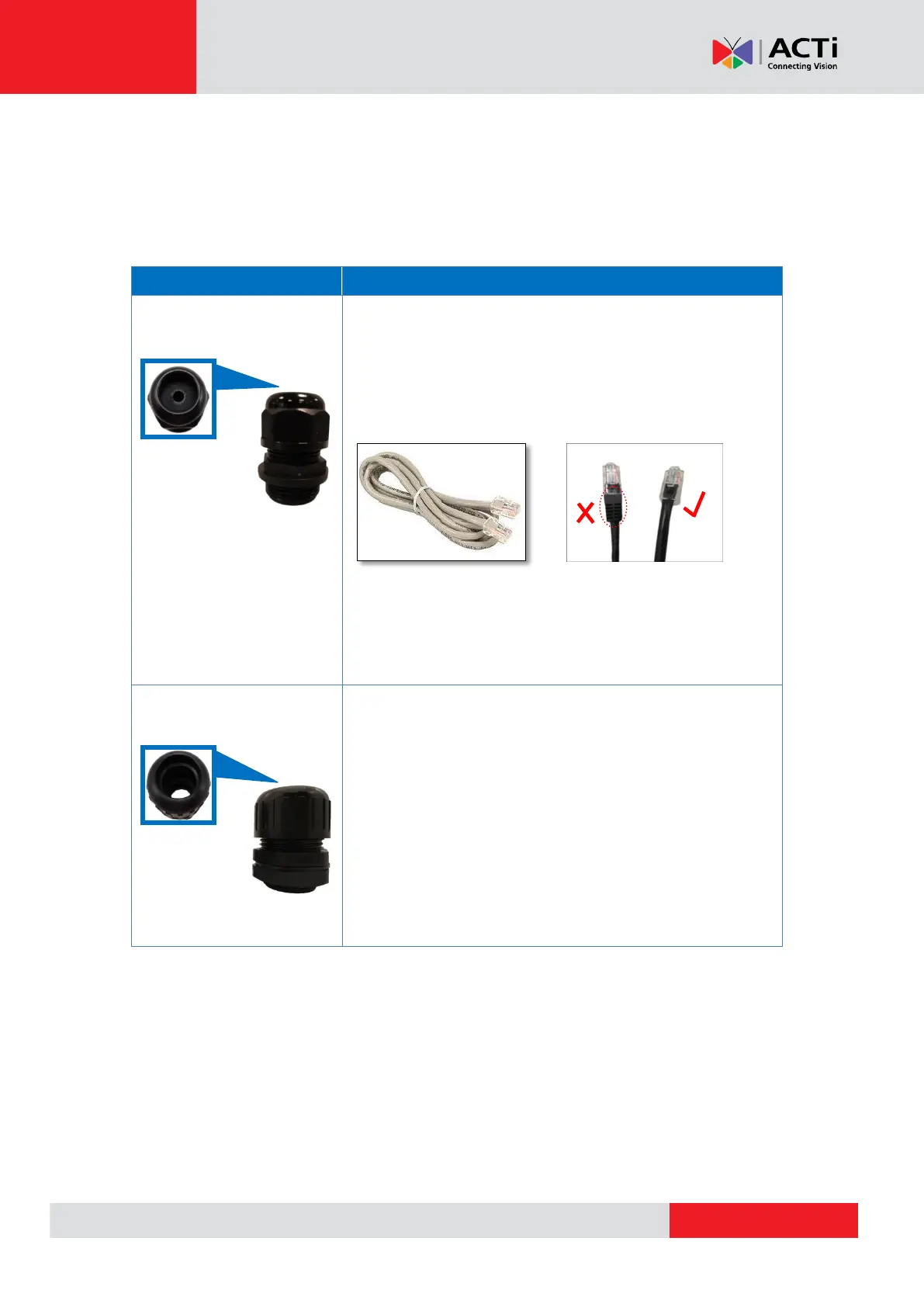

The camera comes with two (2) glands used to waterproof the side cable hole. Determine the
type of waterproof solution that is applicable to your installation requirements and prepare the
necessary accessories or purchase extra materials.
Bundled Accessory
Description
Cable Gland
Use this solution when connecting an Exterior-grade
Ethernet cable between the camera and a
Power-over-Ethernet (PoE) switch or injector. Exterior-grade
Ethernet cables are already waterproof. See Waterproof
Solution with Naked Cable on page 18.
NOTE:
 Exterior-grade cables are already waterproof. Not
included in the package.
 Use only RJ-45 connectors without sleeve.
Conduit Gland
Use this solution when connecting a standard indoor Ethernet
cable between the camera and a Power-over-Ethernet (PoE)
switch / injector. A flexible conduit (trade size 1/2”) is required
to house the Ethernet cable. This solution is recommended
when other cable connections, such as audio, DC 12V, etc.
will be connected to the camera. See Waterproof Solution
with Conduit on page 21.
NOTE: The flex conduit is not included in the package and
must be purchased separately.
