Hardware Manual
27
Other Connections
This section describes the procedures in preparing an external power adapter or other input and
output devices, such as digital or alarm, audio and video that you can connect to the camera. The
use of these devices, however, is optional.
Connecting a Power Adapter (Optional)
The camera can be powered by a Power over Ethernet (PoE) switch that is IEEE802.3af
compliant. In case of using a non-PoE switch or your PoE switch has limited power supply, you
can purchase a power adapter and directly connect the camera to a power outlet.
NOTE: The power adapter is not bundled in the package.

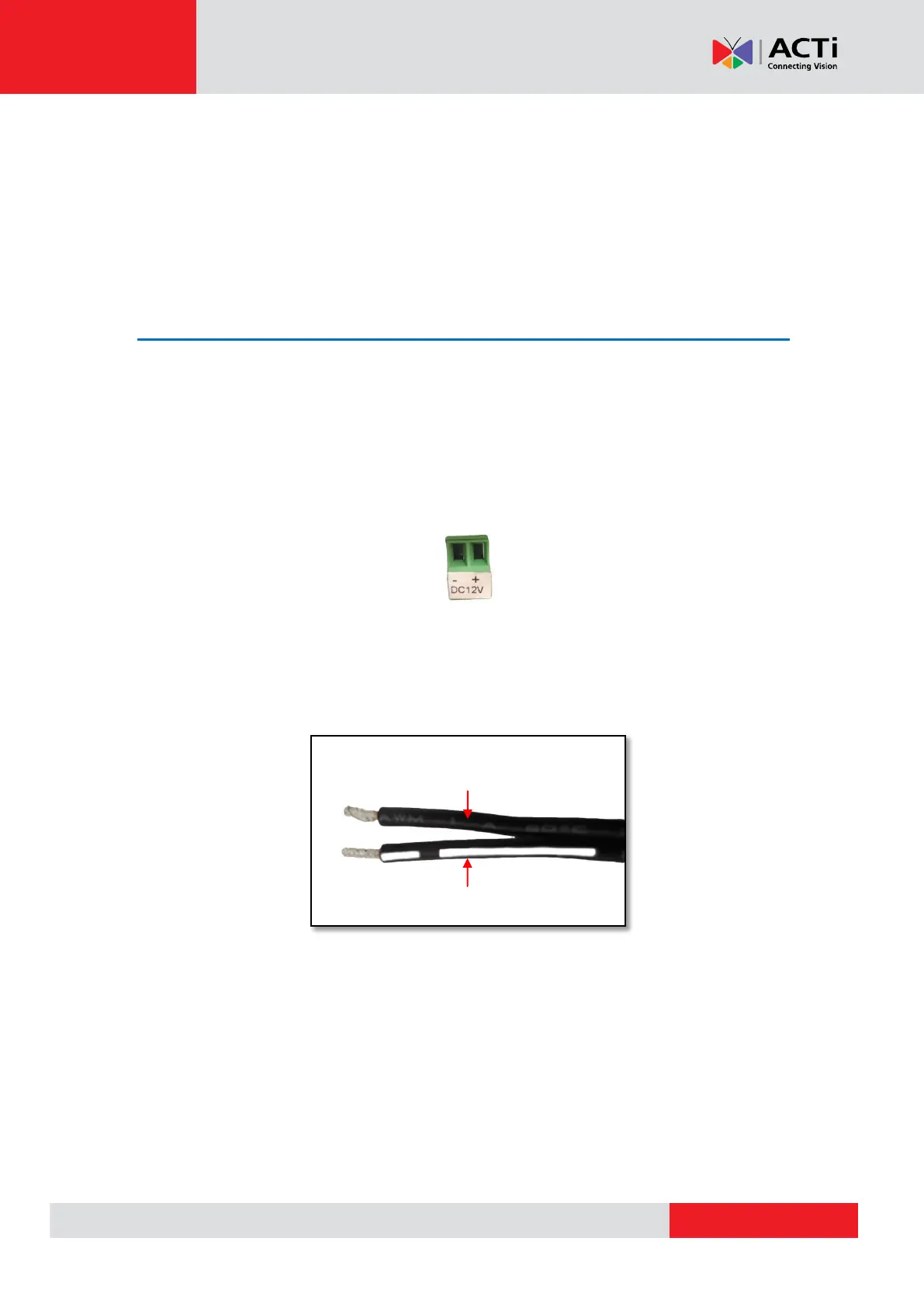

The DC12V terminal block connector is already attached to the camera.
1. Loosen the screws of the two (2) pins on the terminal block.
2. Take note that a standard power adapter cable has two (2) different wires. Connect the wire
with the white stripe to the “+” (positive) pin and the other to the “-” (negative) pin.
4. Tighten the screws of the pins to secure the wire connection.
White stripe: Connect to “+” Pin
