53
Setting Up
Static IP Address
This chapter details how to set up the Gateway with a static IP address. The first
section explains the configuration using a single static IP address; the second sec-
tion explains the configuration using a block of static IP addresses.
Configuring for a Single Static IP Address
To set up the Gateway to use a single static IP address:
☞
Note: To complete this procedure, you must have access to the
Internet Service Provider (ISP) worksheet. If no worksheet has
been provided, contact the ISP.

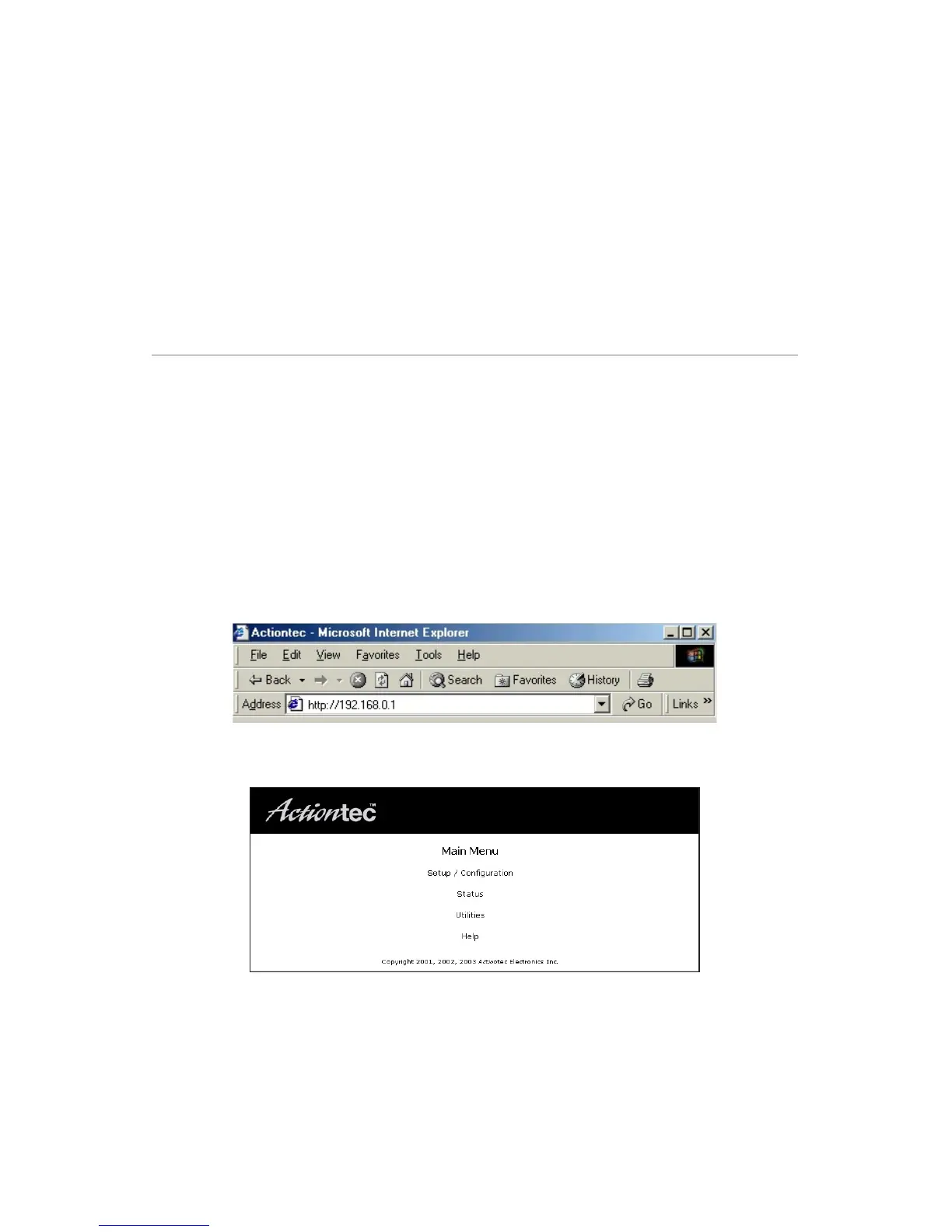

1. Open the Web browser. In the address bar enter:
http://192.168.0.1
then press Enter on the keyboard.
2. The “Main Menu” screen appears. Select Setup/Configuration.
5
To Next Page
