ActionTec GT701D User Manual

44
Actiontec DSL Modem User Manual

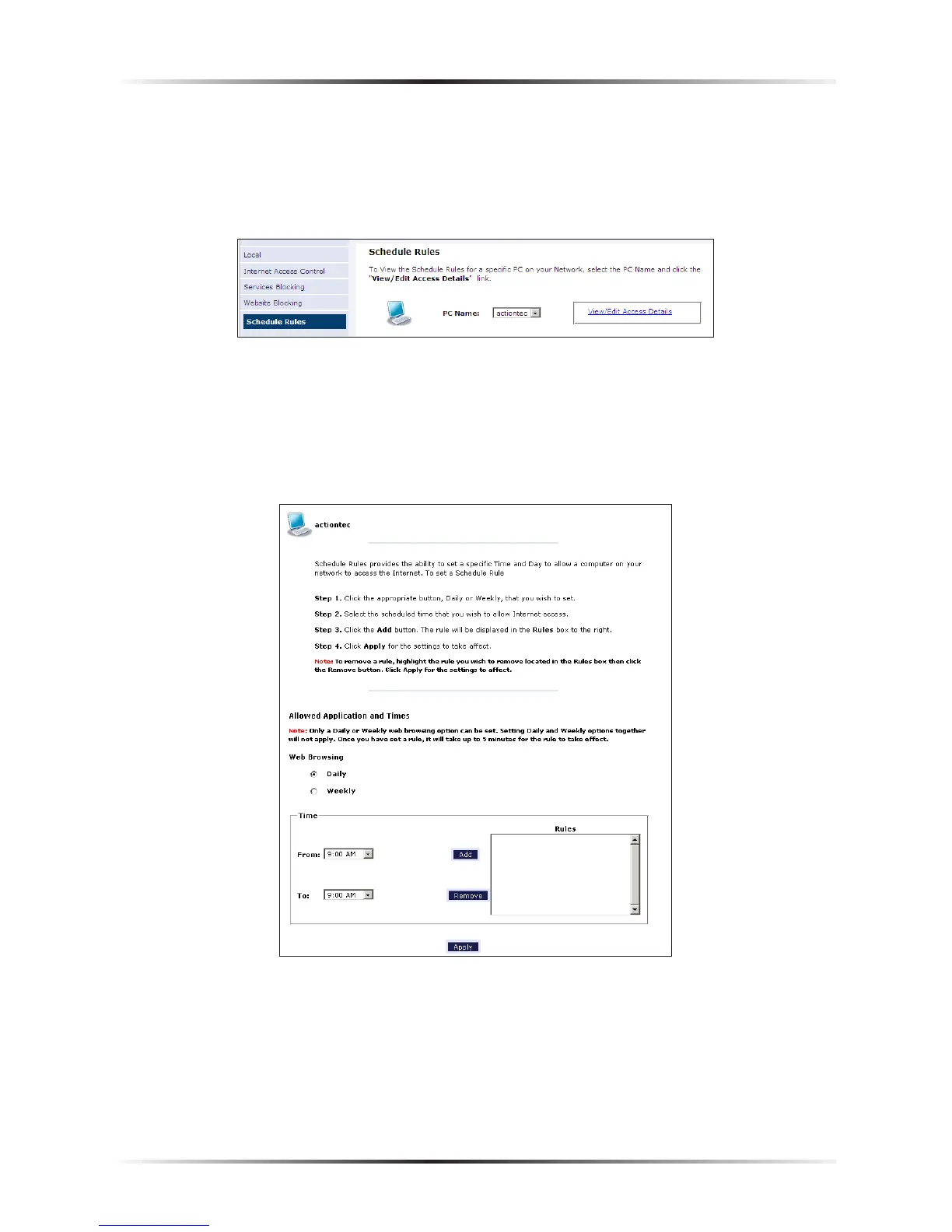

Schedule Rules
Selecting Schedule Rules in the Internet Access Control screen generates the
“Schedule Rules” screen. Schedule rules allow computers on the network to access
the Internet at scheduled times only.
To set up schedule rules for a computer on the network:
1. Select the computer’s network name from the “PC Name” drop-down menu.
2. Click View/Edit Access Details. The computer’s “Allowed Application and
Times” screen appears.
3. To schedule Internet access at the same time every day, select “Daily” by click-
ing the appropriate radio button. If creating different access schedules on a
day-to-day basis, select “Weekly.”

ActionTec GT701D Specifications

General

Compliance industry standards	ANSI T1.413 Issue 2, ITUG.992.1 (G.dmt) & G.992.2 (G.lite)
DC-in jack	Yes
Modem (RJ-11) ports	1
Connectivity LEDs	3
Compatible operating systems	Microsoft XP, Vista; Mac OS 9+; Linux/BSD, Unix
