ActionTec GT701D User Manual

25
Chapter 4 Configuring Advanced Setup Options
QoS Settings Downstream

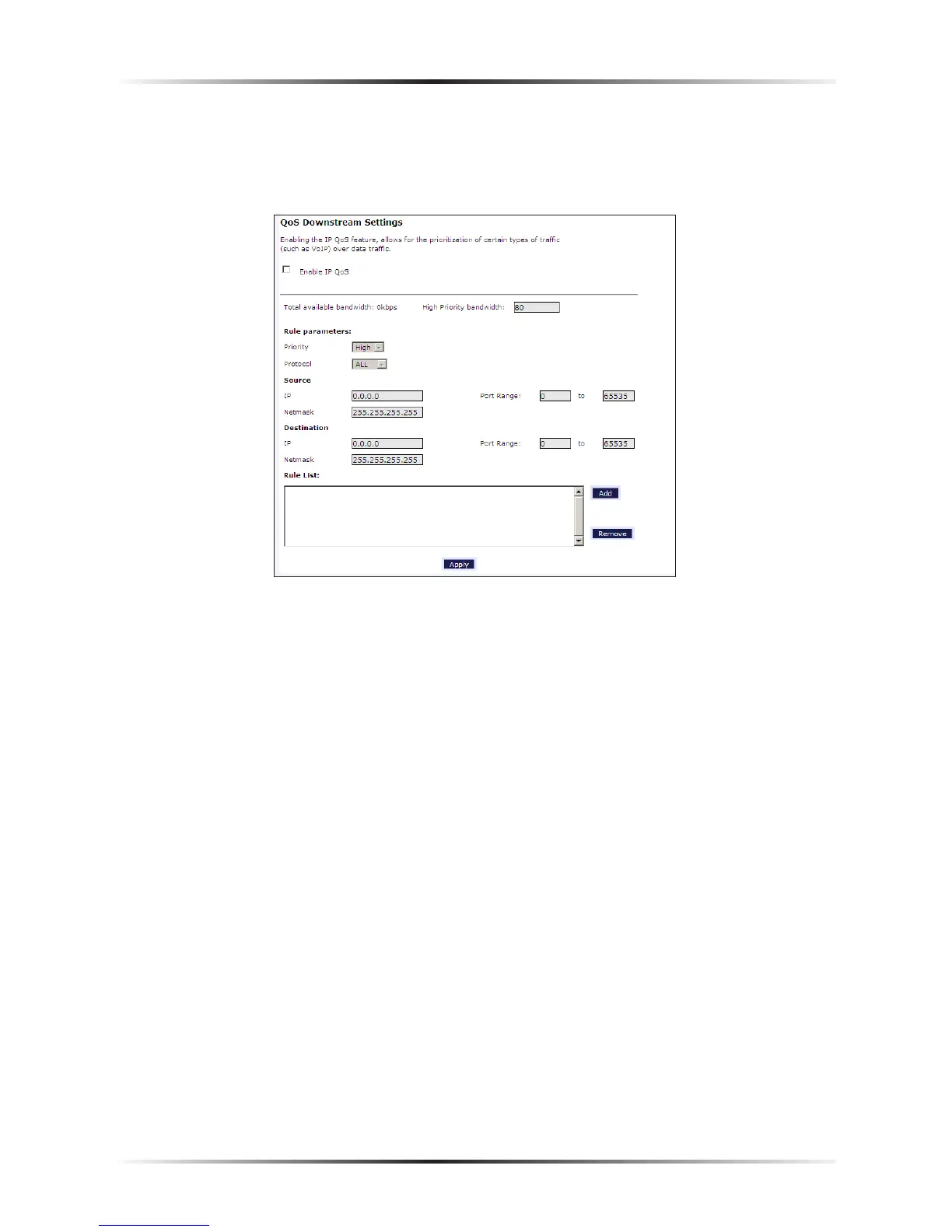

Selecting QoS Settings Downstream from the “Advanced Setup” screen causes the
“QoS Downstream Settings” screen to appear.
The “QoS Downstream Settings” screen is identical to the “QoS Upstream Settings”
screen, with the exception of the “Trusted Mode” and “Set IP Precedence” options.
Use this screen to configure QoS for data going out of the network.
When finished in this screen, click Apply to activate any changes made.

ActionTec GT701D Specifications

General

Compliance industry standards	ANSI T1.413 Issue 2, ITUG.992.1 (G.dmt) & G.992.2 (G.lite)
DC-in jack	Yes
Modem (RJ-11) ports	1
Connectivity LEDs	3
Compatible operating systems	Microsoft XP, Vista; Mac OS 9+; Linux/BSD, Unix
