Chapter 1 Introduction
Getting to Know the Modem
This section contains a quick description of the Modem’s lights, ports, etc.

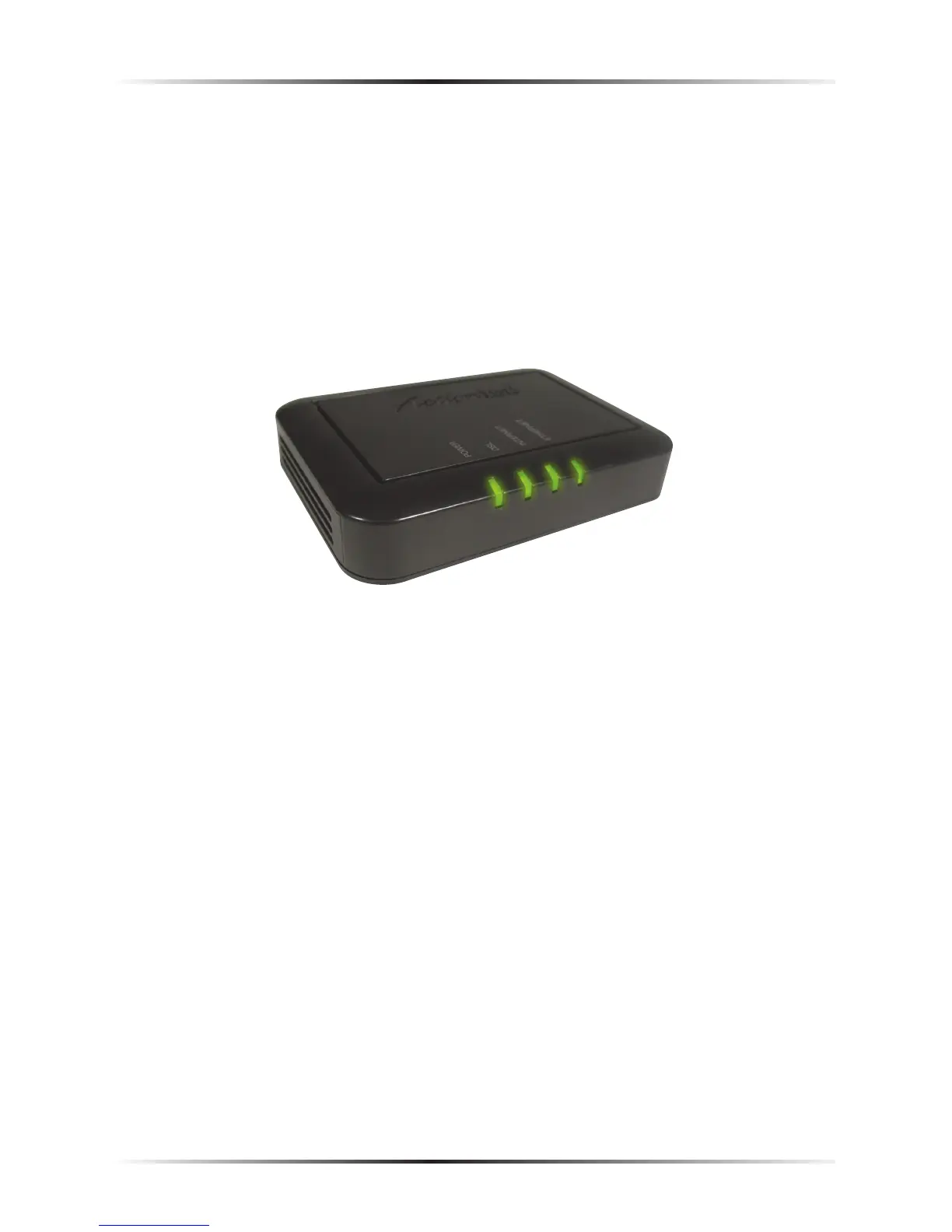

The Modem has several indicator lights (LEDs) on its front panel and a series of
ports on its rear panel.
Front Panel
The front panel of the Modem features four lights: Power, DSL, Internet, and
Ethernet.
Power Light
The Power light displays the Modem’s current status. If the Power light glows
steadily green, the Modem is receiving power and fully operational. When the
Power light is rapidly flashing, the Modem is initializing. If the Power light glows
red when the Power cord is plugged in, the Modem has suffered a critical error
and technical support should be contacted.
DSL Light
The DSL light illuminates when the Modem is connected to a DSL line and the
unit is able to synchronize to the DSL signal from the ISP. When it flashes, the
Modem’s built-in DSL modem is training for the DSL service.
