ActionTec GT701D User Manual

63
Setting up Static IP
on a Computer
To communicate with the Modem from a computer on the network (to use the
Modem’s GUI, for example), the user may have to switch the IP address settings
from DHCP-enabled to static IP, so that the computer and the Modem are on the
same subnet.
To set up static IP on a computer, select the operating system and follow
the instructions.
☞
Note: The following procedures are based on the Modem’s
factory default IP address. If the Modem’s IP address has been
changed, enter the new IP address when instructed to enter an
IP address.
Windows 2000

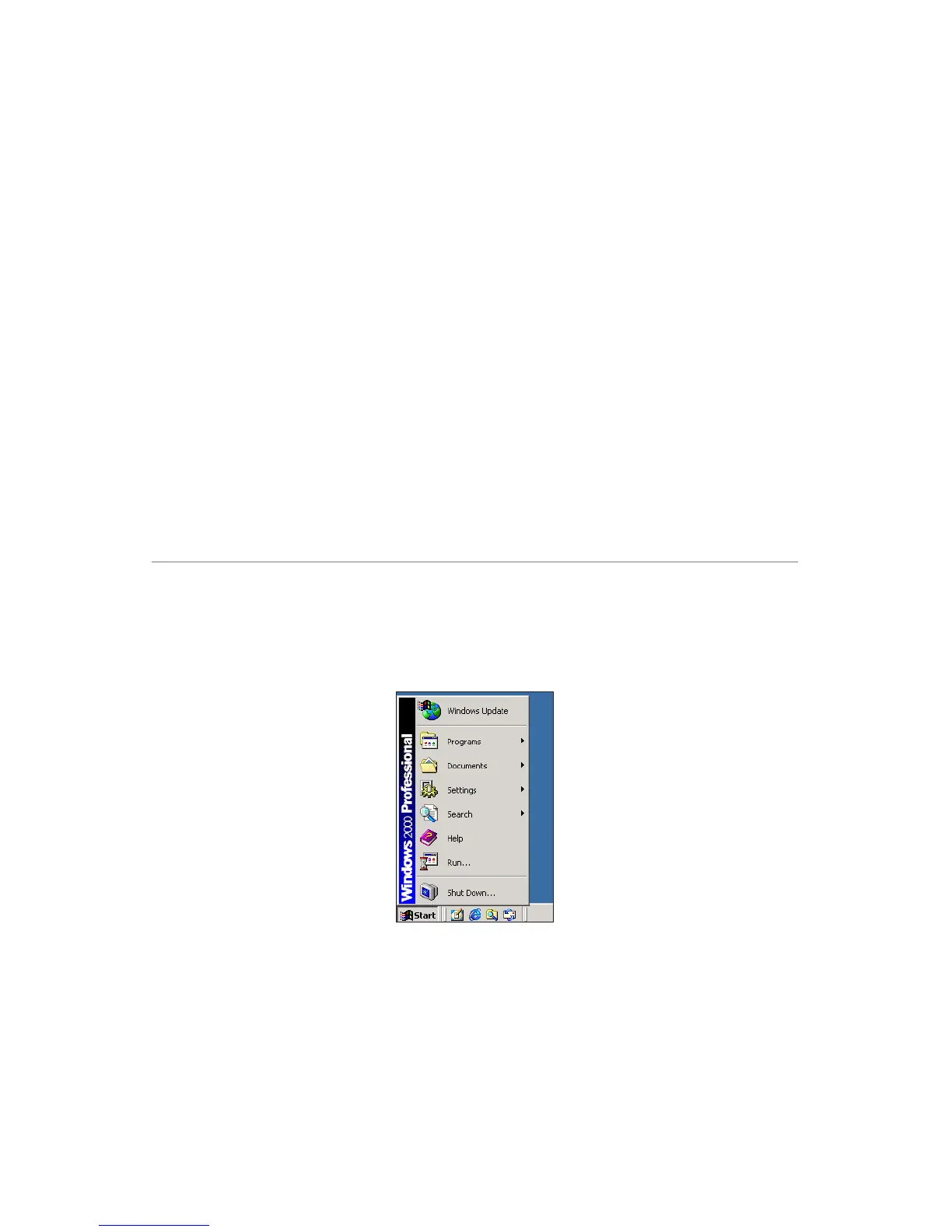

1. From the desktop, click on the Start button in the lower left corner.
2. From the menu that appears, select Settings.
B

ActionTec GT701D Specifications

General

Compliance industry standards	ANSI T1.413 Issue 2, ITUG.992.1 (G.dmt) & G.992.2 (G.lite)
DC-in jack	Yes
Modem (RJ-11) ports	1
Connectivity LEDs	3
Compatible operating systems	Microsoft XP, Vista; Mac OS 9+; Linux/BSD, Unix
