ActionTec GT701D User Manual

65
Appendix B Setting up Static IP on a Computer

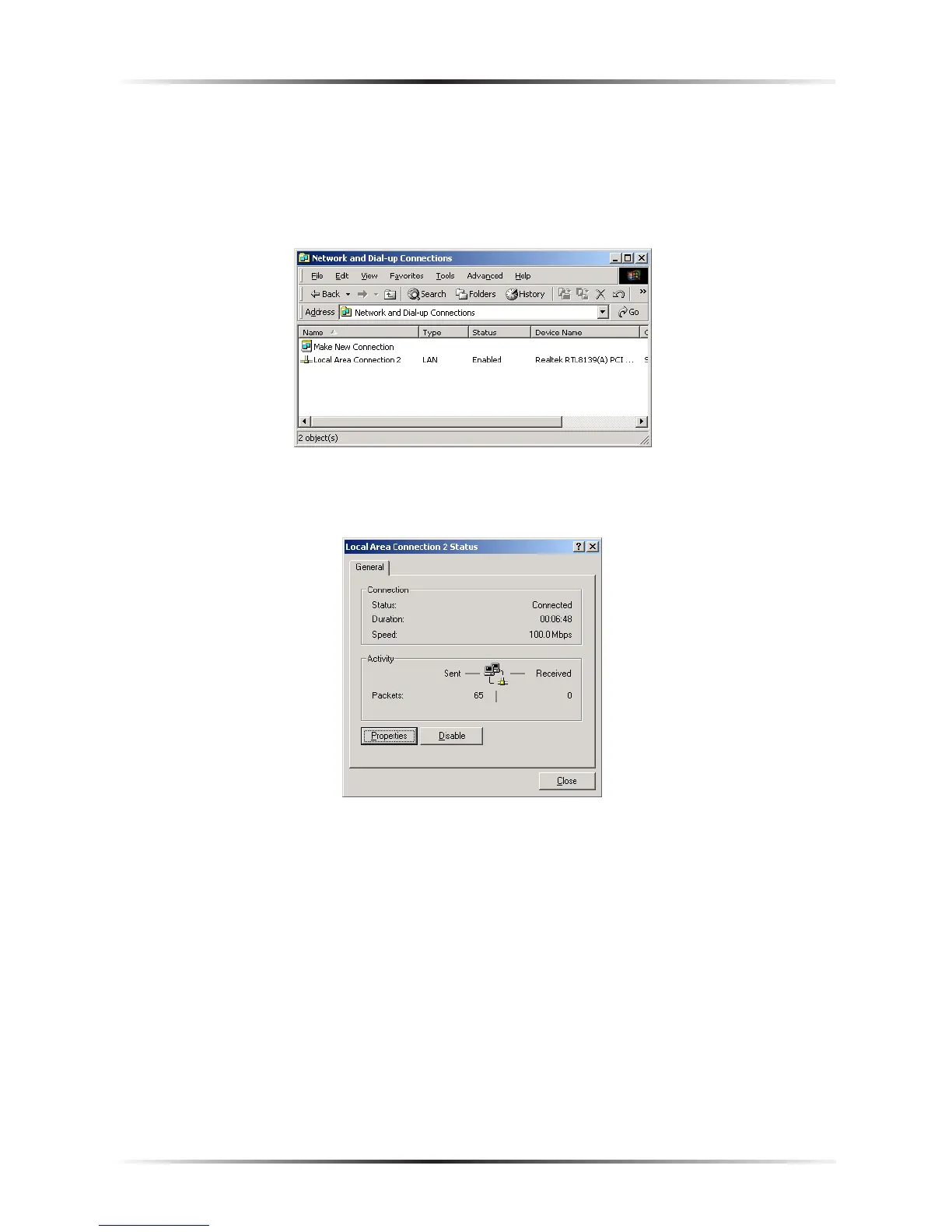

5. In the “Network and Dial-up Connections” window, double-click Local Area
Connection. A number may be displayed after the Local Area Connection. If
there is more than one Local Area Connection listed, locate the one that cor-
responds to the network card installed in the computer by finding the name of
the network card in the “Device Name” column.
6. The “Local Area Connection Status” window appears. Select General, then
click Properties.
7. The “Local Area Connection Properties” window appears. Click General.

ActionTec GT701D Specifications

General

Compliance industry standards	ANSI T1.413 Issue 2, ITUG.992.1 (G.dmt) & G.992.2 (G.lite)
DC-in jack	Yes
Modem (RJ-11) ports	1
Connectivity LEDs	3
Compatible operating systems	Microsoft XP, Vista; Mac OS 9+; Linux/BSD, Unix
