Active Vision SX-420 - 2-2. Rear Panel

User Guide
17
2-2. Rear Panel

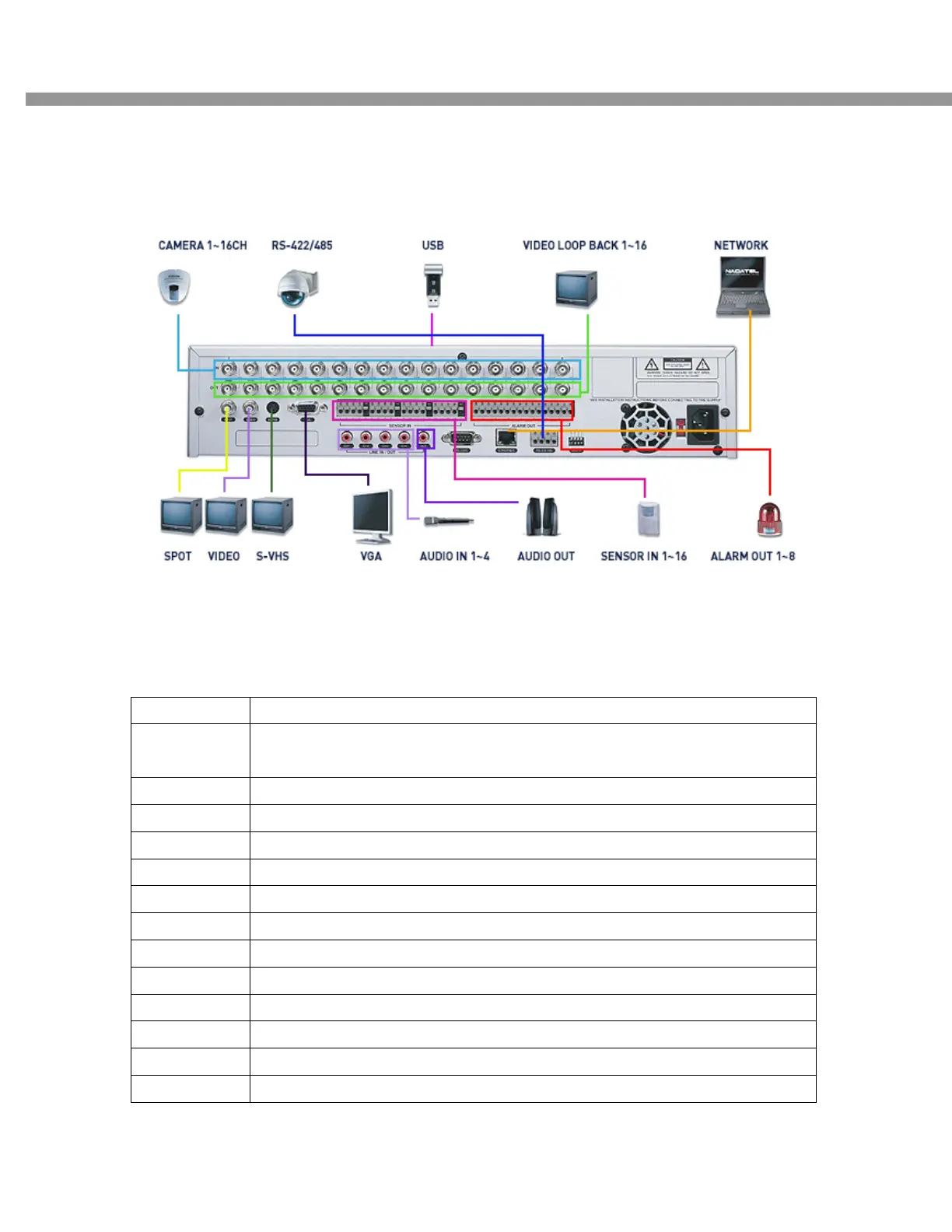

Figure 2.2.1. Rear Panel
Table 2.2.1. Rear panel connections
Connection Description
VIDEO IN
9/16 connectors for video input.
Connect camera output to Video-in (NTSC/PAL)
VIDEO OUT
9/16 connectors for video output.(loop back)
SPOT
Composite video output for spot monitoring.
VIDEO
Composite video output in NTSC or PAL format
S-VHS
S-VHS output
VGA
Connector for VGA monitor
AUDIO IN
4 connectors for audio input.
AUDIO OUT
1 connector for audio output.
RS-232
For engineering use only.
LAN
RJ45 connector for LAN connection.
RS-485/422
For camera control use.
SENSOR IN
Connector for sensor device connection.
ALARM OUT
8 connectors for alarm device connection.
