Section 3 – Using The Scan Tool

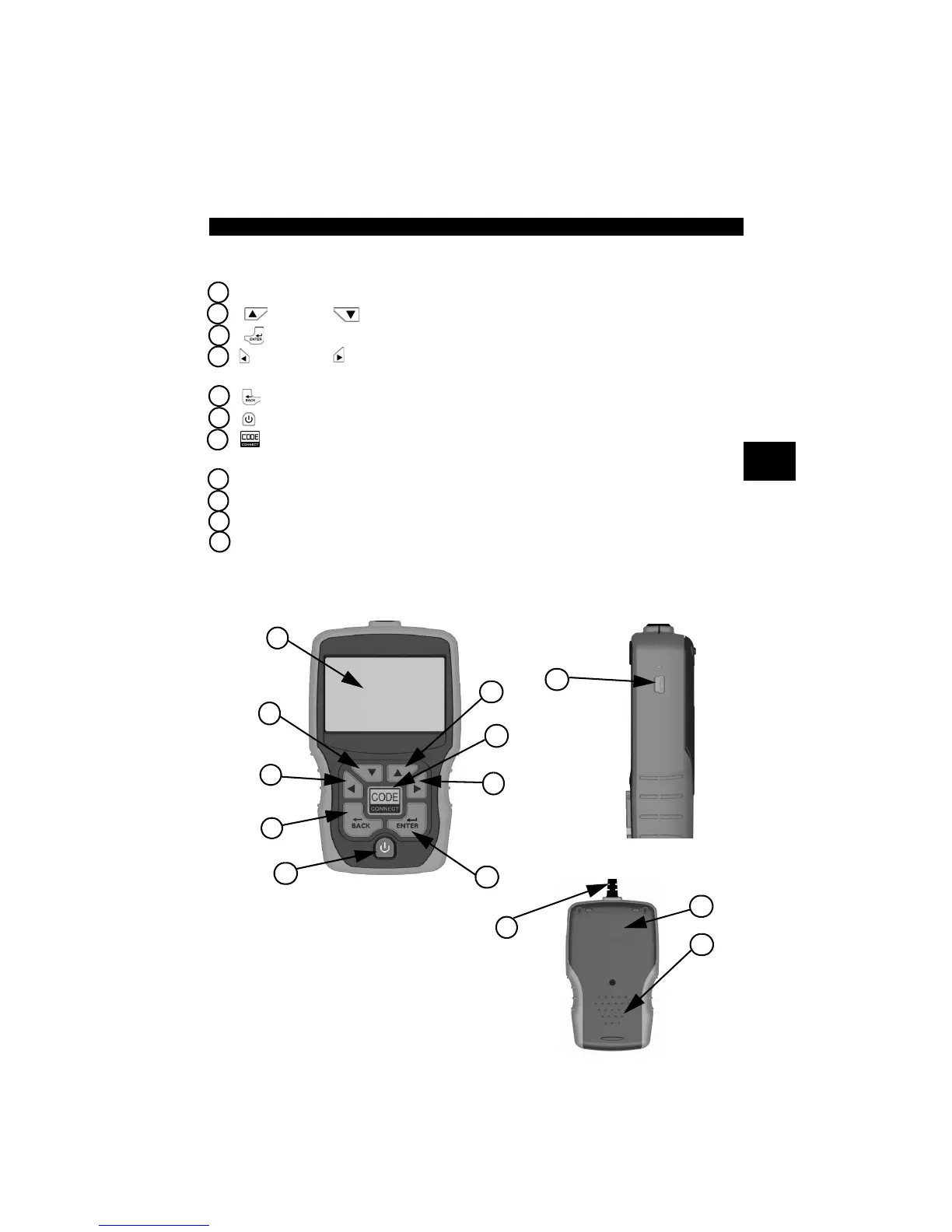

The Scan Tool
1 LCD Display – backlit, 128 x 64 pixel display with contrast adjustment.
2 UP and DOWN arrow keys – moves selection UP or DOWN.
3 ENTER key – selects displayed items.
4 LEFT and RIGHT arrow keys – selects YES or NO, and selects data
parameters for custom data list.
5 BACK key – goes to the previous screen or level.
6 ON/OFF key – turns power ON or OFF.
7 CODE CONNECT – allows the operator to access vehicle-specific
repair information.
8 DLC Cable – provides connection for vehicle interface.
9 USB Port – provides a USB connection for the computer.
10 Serial Number Plate – provides serial number of Scan Tool.
11 Battery Compartment – provides power to the Scan Tool when
reprogramming from a personal computer or off-vehicle reviewing of codes
and printing.
