Diagnostic Menu
4 – 24 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
View Freeze Data
When an emission-related fault occurs, certain vehicle conditions are
recorded by the on-board computer. This information is referred to as
freeze frame data. View Freeze Data is a snapshot of the operating
conditions at the time of an emission-related fault.
✓ View Freeze Data can be overwritten by faults with a higher priority.
✓ If codes were erased, View Freeze Data may not be stored in vehicle
memory depending on vehicle.

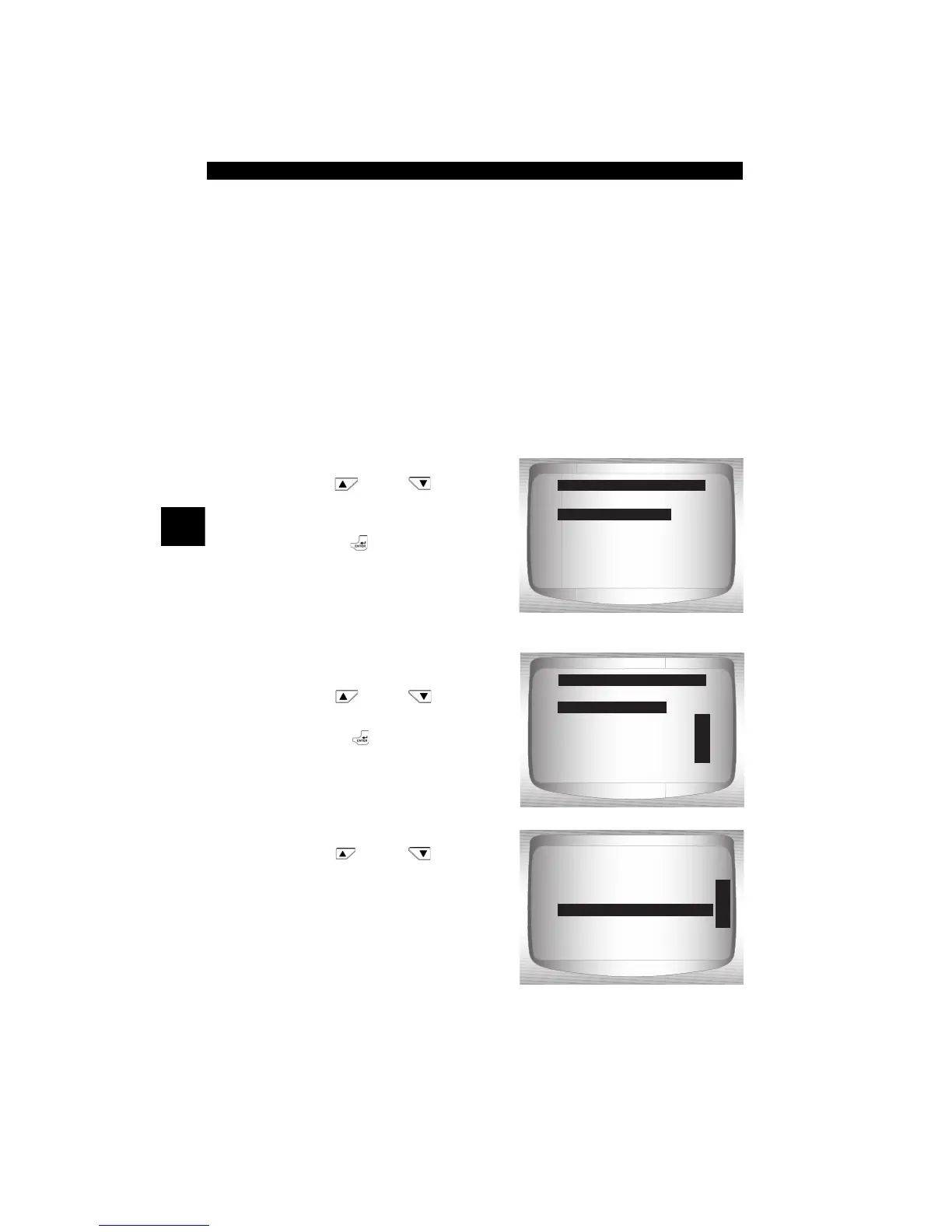

From the Diagnostic Menu:
1. Select
View Freeze Data.
•Use
UP
or
DOWN
arrow key until View Freeze
Data is highlighted.
•Press
ENTER
.
2. Select Frame (if more than 1
frame is present).
•Use
UP
or
DOWN
arrow key.
•Press
ENTER
.
3. View PIDs on Scan Tool.
•Use
UP
or
DOWN
arrow key.
•See Appendix A for PID
Definitions.
=====================
View Fre eze Data
Drive Cycle Monitor
O2 Monitor Tests
Diag Monitor Tests
On-Board Systems
Vehicle Information
Diagnostic Menu
View Fre eze Data
=====================
P0340 (Mod $10)
View Fre eze Data
P0340 (Mod $10)
C
o
d
e
15.5
C
o
d
e
A/C PRESS (V) 3.00
A/F RATIO 14:1
BARO PRESS ("Hg) 29.9
ABSLT TPS (%) 12.2
ENGINE (RPM) 2352
CALC LOAD (%) 83.1
MAF (LB/M) 0.57
A/C PRESS (psi)
