ACU-RITE VUE User Manual

VUE iii

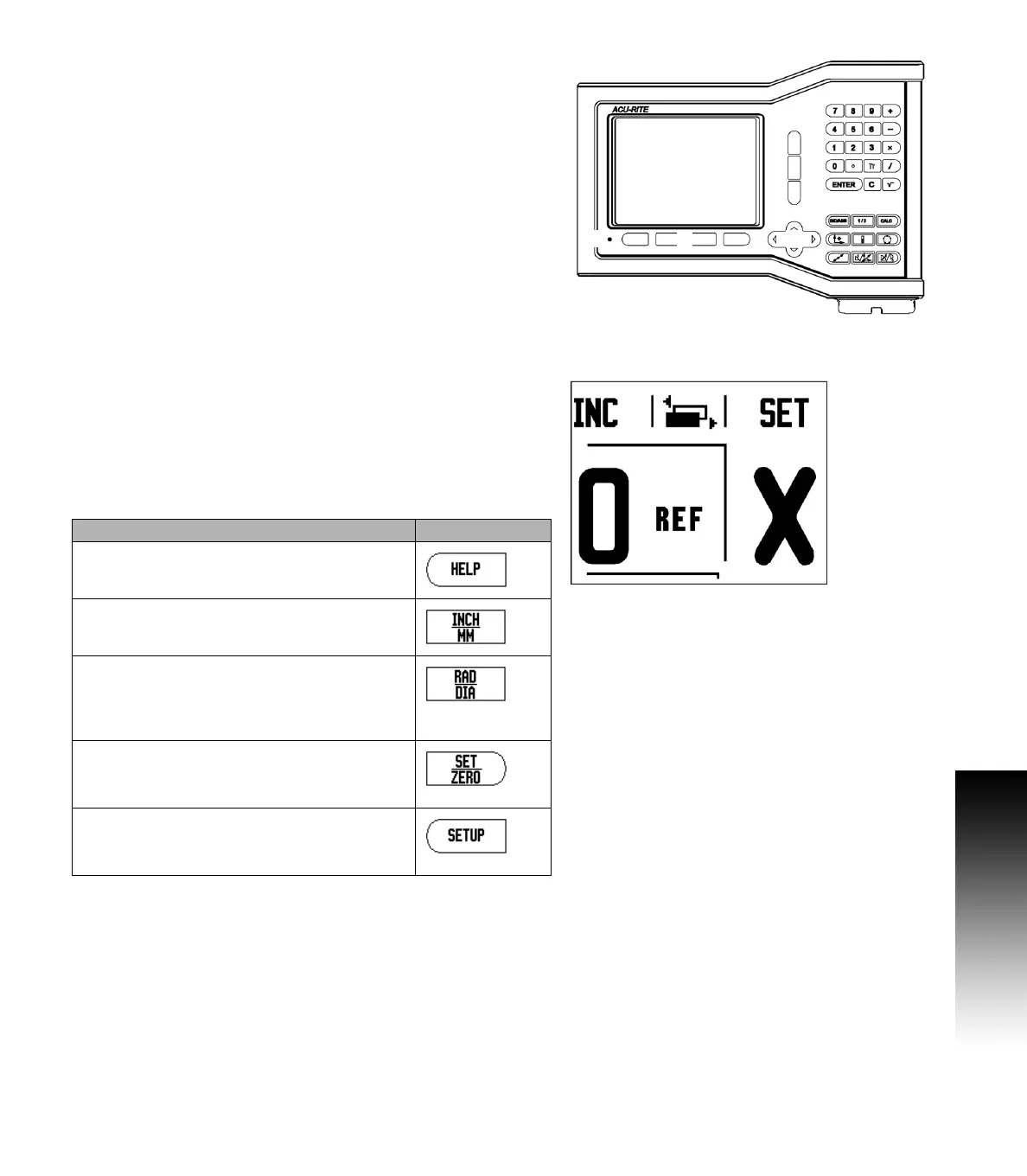

VUE Key Layout
VUE Key Layout
VUE Soft keys
There are two pages of soft key functions to select from the operating
modes. Use the LEFT/RIGHT arrow keys to cursor through each page.
The page indicator in the Status Bar will show the page orientation.
The darkened page indicates the page you are currently on
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
1 Display Aera
2 Soft keys
3 Page Indicator light
4 UP/DOWN arrow keys are also used to adjust the screen contrast
5 Axis Keys
6 Numeric Keypad
7 ENTER key
8 CLEAR key
9 Hard function keys
1
1
1
2
1 Page Indicator
2 Set Zero Indicator
Soft Key function Soft key
Opens on-screen Help Instructions.
Toggles between Inch, and Millimeter units
(see "Units" on page 5).
This soft key toggles between radius and
diameter displays. This function is for Turning
applications only (see "Diameter Axes" on page
6).
Toggles between Set/Zero functions. Used
with individual axis keys (see "Set/Zero Soft
Key" on page 7).
Opens the Job Setup menu and provides
access to the Installation Setup soft key (see
"Job Setup Parameters" on page 5).
