Adastra RM1202 - Front Panel

953.163UK User Manual

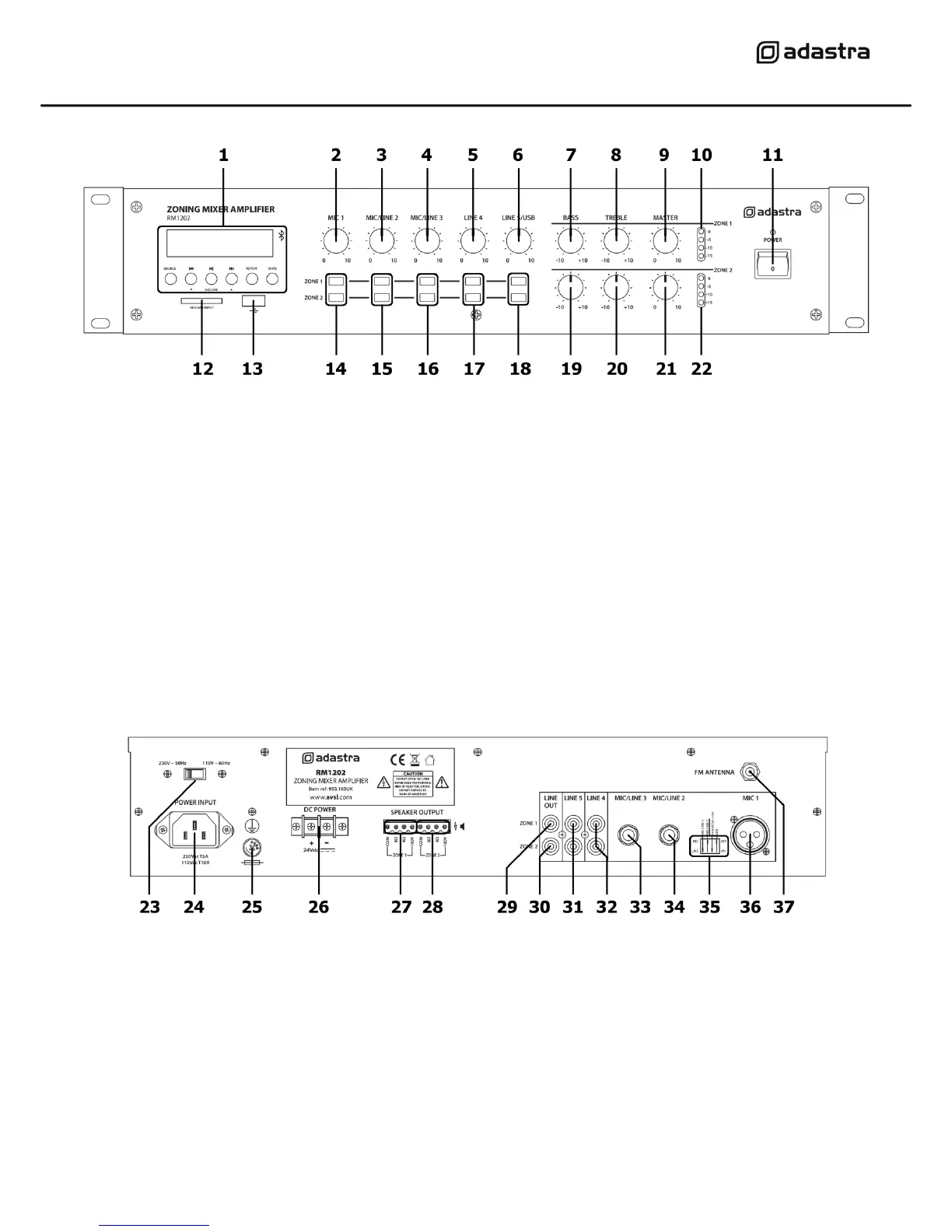

Front panel
Rear panel
1.
Media player
12.
SD card slot
2.
Mic 1 level control
13.
USB port
3.
Mic/Line 2 level control
14.
Mic 1 zone assign buttons
4.
Mic/Line 3 level control
15.
Mic/Line 2 zone assign buttons
5.
Line 4 level control
16.
Mic/Line 3 zone assign buttons
6.
Line 5 / Media Player level control
17.
Line 4 zone assign buttons
7.
Zone 1: Bass EQ
18.
Line 5 / Media Player zone assign buttons
8.
Zone 1: Treble EQ
19.
Zone 2: Bass EQ
9.
Zone 1: Master Volume
20.
Zone 2: Treble EQ
10.
Zone 1: Level Indicator LEDs
21.
Zone 2: Master Volume
11.
Power on/off switch & LED
22.
Zone 2: Level Indicator LEDs
23.
Voltage selector
31.
Line 5 input (2 x RCA)
24.
Mains power inlet (IEC)
32.
Line 4 input (2 x RCA)
25.
Mains fuse holder
33.
Mic/Line 3 input (6.3mm jack)
26.
24Vdc power terminals
34.
Mic/Line 2 input (6.3mm jack)
27.
Zone 1 speaker output terminals
35.
DIP switches
28.
Zone 2 speaker output terminals
36.
Mic.1 input (XLR)
29.
Zone 1 Line output
37.
FM antenna connector
30.
Zone 2 Line output
