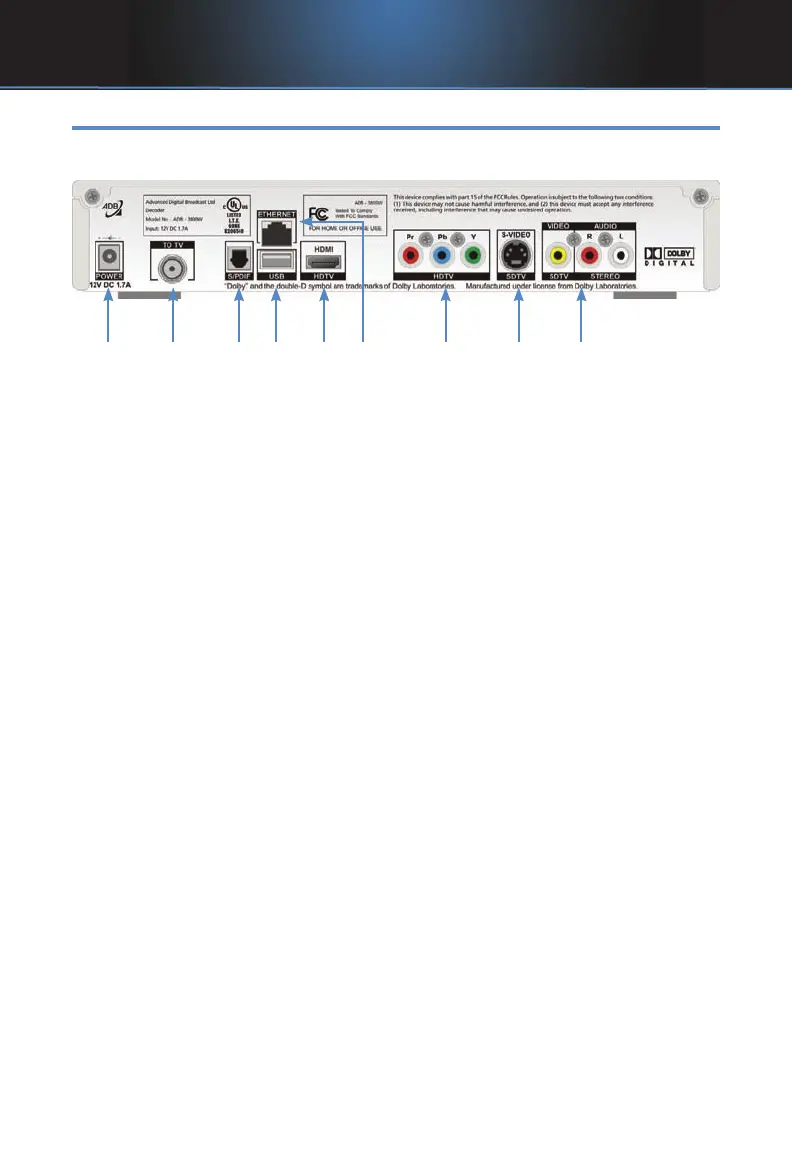

ADB 3800 Set Top Box
Power 12V DC 1.7A Provides power to the set top box.
To TV Connects the set top box to your TV using a standard coax
cable - provides audio and video.
S/PDIF Connects the set top box to a home theater system to provide
surround sound audio - provides audio only.
USB (Universal Serial Bus) Connects the set top box to technician’s
equipment and other devices.
HDTV HDMI (High Definition Media Interface) Connects the set top
box to your HDTV using an HDMI cable - provides audio and video.
Ethernet Connects the set top box to the video service using a CAT5
Ethernet cable.
HDTV Pr/Pb/Y (Component Video) Connects the set top box to your
TV to provide very high-quality video - provides video only.
SDTV S-Video Connects the set top box to your TV to provide high-
quality video - provides video only.
SDTV Video/Stereo Audio R/L (Video/Audio Left/Audio Right)
Connects the set top box to your TV or VCR to provide good quality
video and stereo audio.
1.
2.
3.
4.
5.
6.
7.
8.
9.
1 2 3 4 5 6 7 8 9
Set Top Box
