Page 5
Revision : 003
TANGO
Lighting Technologies
Installation
TANGO is a professional lighting control desk, developed as per EN60950 safety standard. It is
a class 1 equipment designed and manufactured to EN60950.
To prevent any risk of electric shock do not open the desk, there are no user serviceable parts
inside. Refer servicing to trained service personnel exclusively.

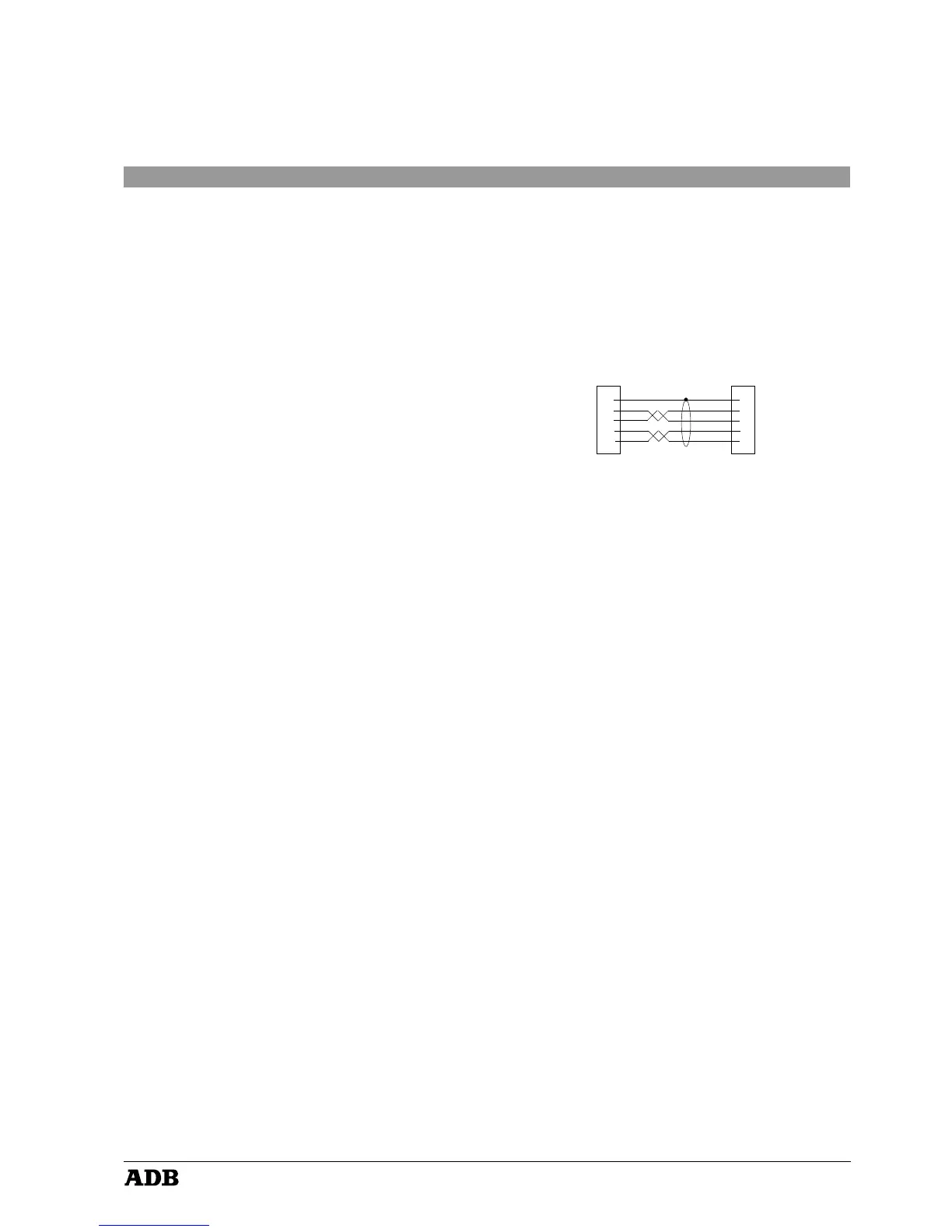

Signal Connections DMX512/1990
GND 1 O
DATA - 2 O
DATA + 3 O
4O
5O
O1 GND
O2 DATA -
O3 DATA +
O4
O5
XLR5-MX
dimmer dependent
Cable : 2 x 2 x 0.34 mm
2
shielded
Max. length : 250 m
To enhance safety and operating reliability this product has been fitted with galvanic isolation on
the DMX512/1990 output. This isolation has been tested for 500V dc in order to prevent grounding
loop problems or to transfer low voltages occasionally present on some signals to controls or
other signal connectors accessible to the user.
It is absolutely forbidden to apply any voltage to the connections of TANGO (Remote, DMX and
Analogue outputs). Connections to inappropriate sources may inadvertently damage TANGO
and may be dangerous to the user. It is the user's responsibility to use the equipment for it's
intended purpose and to check the equipement connected to it.
TANGO is a professional piece of equipment developed with simplicity of use in mind. However,
in order to fully benefit from the designed in safety features, the equipment shall be installed and
serviced by skilled and trained personnel exclusively.
Technical Specifications
Power supply : 220 V - 240 V, 50 Hz ± 1 %.
Mechanical dimensions (mm) (width x depth x height) :
TANGO 24 TANGO 48
Packed 650 x 340 x 130 860 x 340 x 130
Unpacked 620 x 315 x 118 815 x 315 x 118
Options and Accessories
• Conversion card for 370uA or 0/+10V analogue output (24 channels).
• Conversion card for 370uA or 0/+10V analogue output (48 channels).
• 64K memory card for permanent storage.
• DE09-P connector for remote control.
• 5 pin XLR male connector for DMX512 signal.
• Dust cover for TANGO 24.
• Dust cover for TANGO 48.
