CONFIGURATION
The majority of configuration options are set through the DIP
switches. A few special configuration options are available through
jumpers inside the unit.
If a DataSMART DSU is connected at the far end of the network some
report and alarm configuration options can be configured using the
ARC help menu. Refer to Section 4, Operation for details on use of
the ARC help menu.
A Configuration Work Sheet is provided at the end of this section to
help plan configuration and to record which configuration settings
have been made.

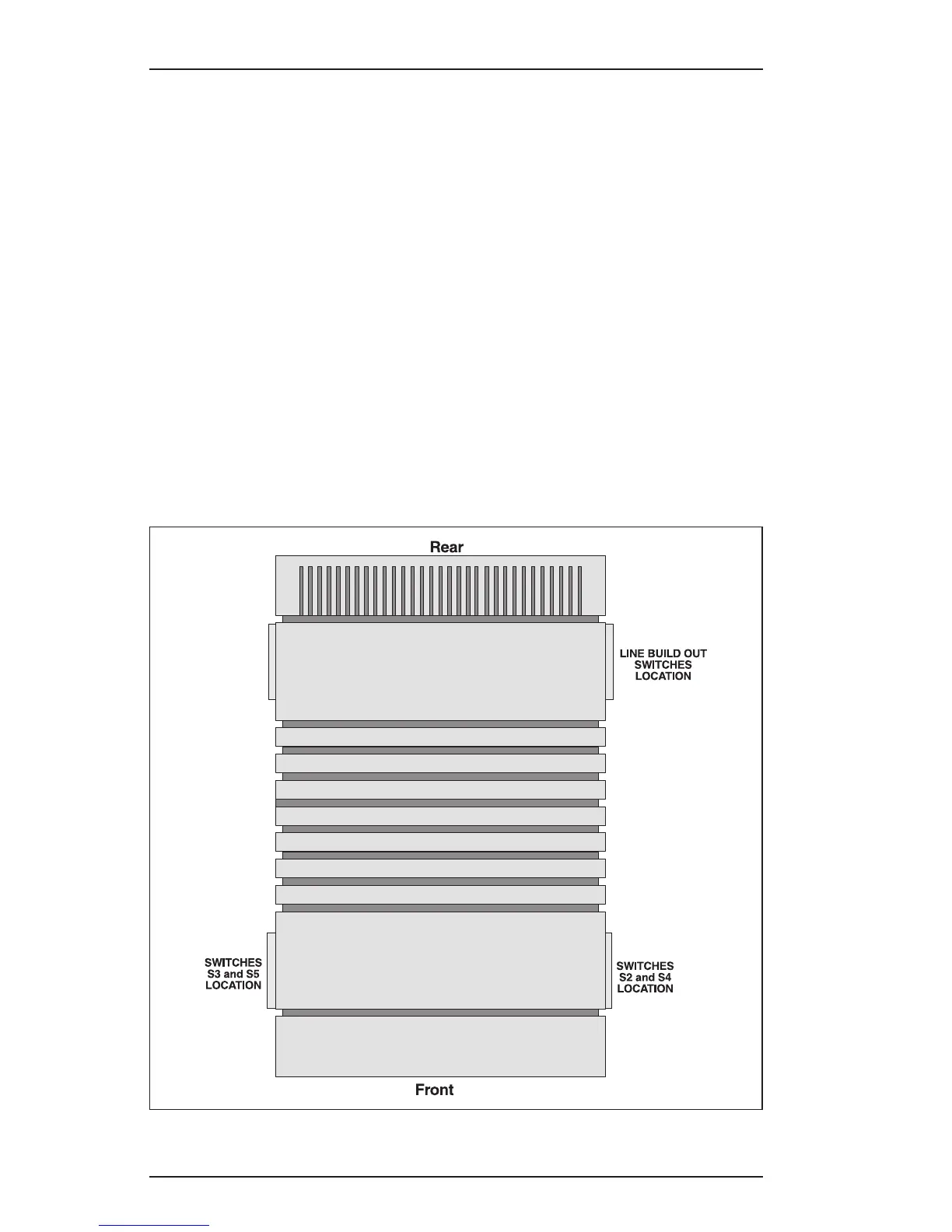

Figure 1. DIP Switch Locations
Operator's Manual
4
