DIP Switch Location and Access
The DIP switches are located on the sides of the D-SERV card.
Plug-in units have the switches readily accessible.
To access the switches on a stand-alone unit:
¤ Disconnect all power connections and interface cables
¤ Turn the D-SERV unit over, and using a phillips
screwdriver remove the four screws attaching the legs to the
case and remove the legs (see Figure 2)
¤ Set the DIP switches
¤ Reattach the legs

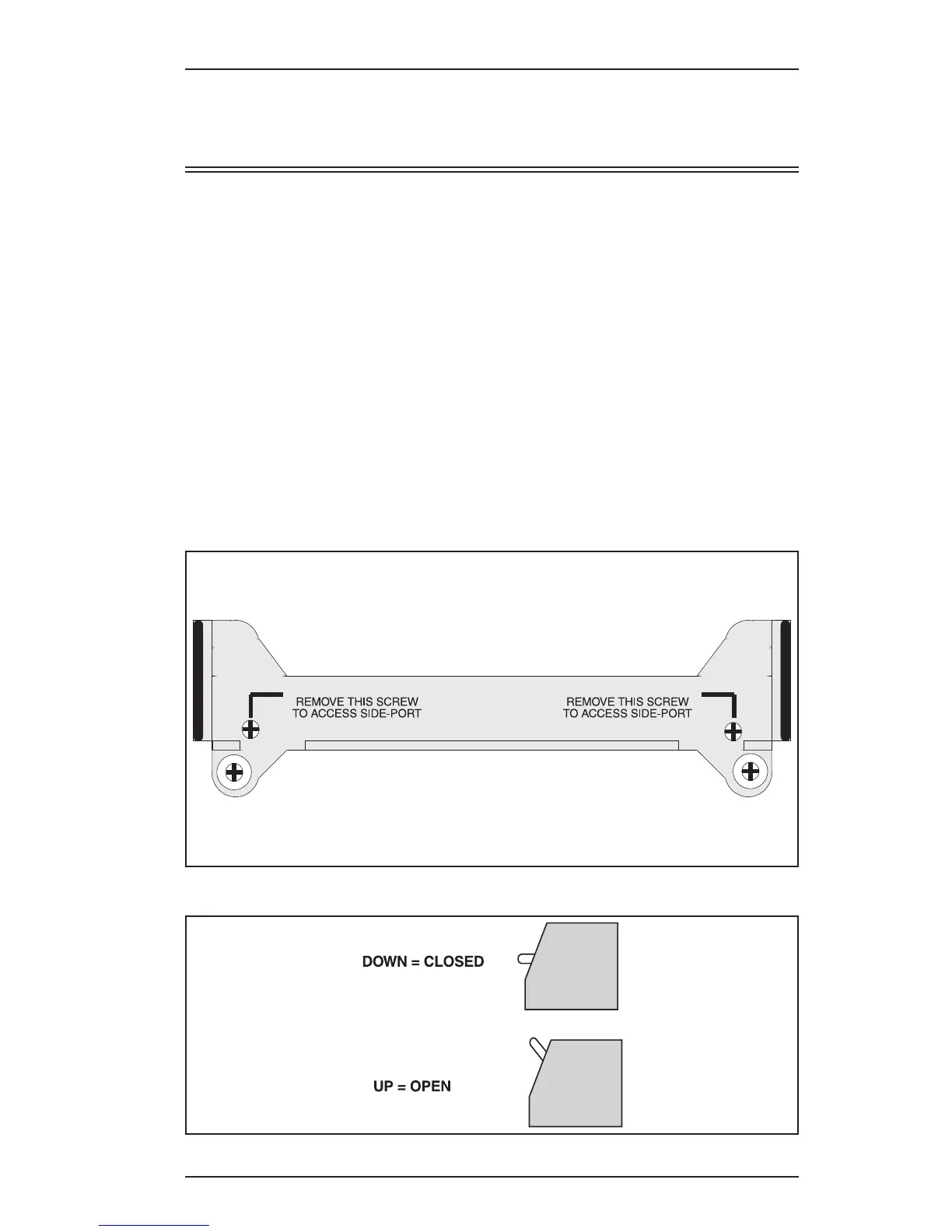

Figure 2. Leg Removal
Figure 3. DIP Switch Positions
Operator's Manual
5
