Tail Circuit Timing Set Up
In order for tail circuit timing to function correctly:
¤ Select the correct cross pinned cable for your application.
Refer to page 25 for cables available from ADC Kentrox.
Refer to Figures 16 through 19 for pin outs.
¤ The data port source bit rate (from a DataSMART unit or a
MUX) must match the D-SERV data port bit rate set with
the DIP switches on S2.
¤ On the D-SERV unit, set Switch S3 for Data Port Timing
(S3-5 Down and S3-6 Up).
¤ If you are connecting to a DataSMART unit, the
DataSMART must be configured for data port external
clocking (the DCLK<your data port>:E command).

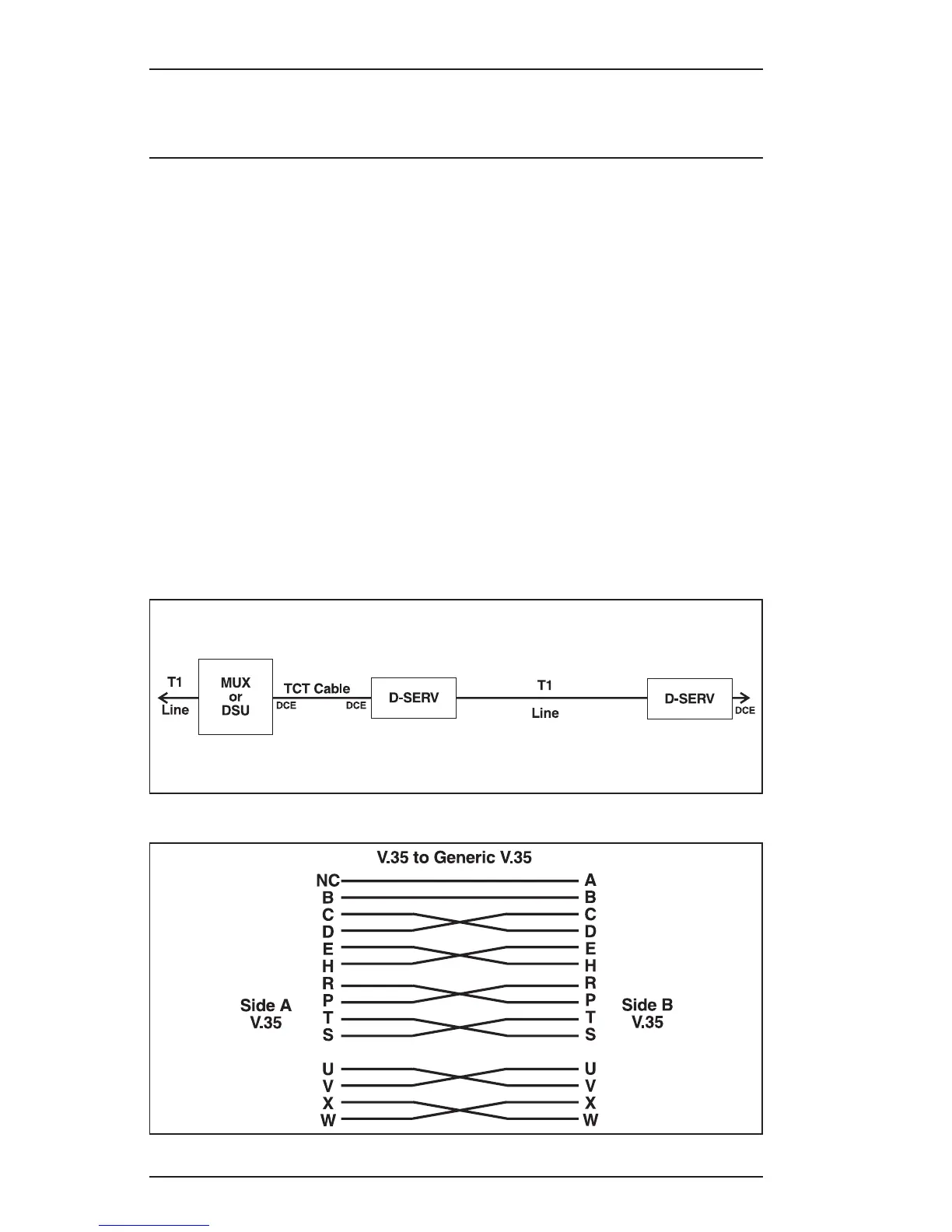

Figure 16. Tail Circuit Timing (TCT) Application
Figure 17. Cable #95010055 Pin Outs
Operator's Manual
32
