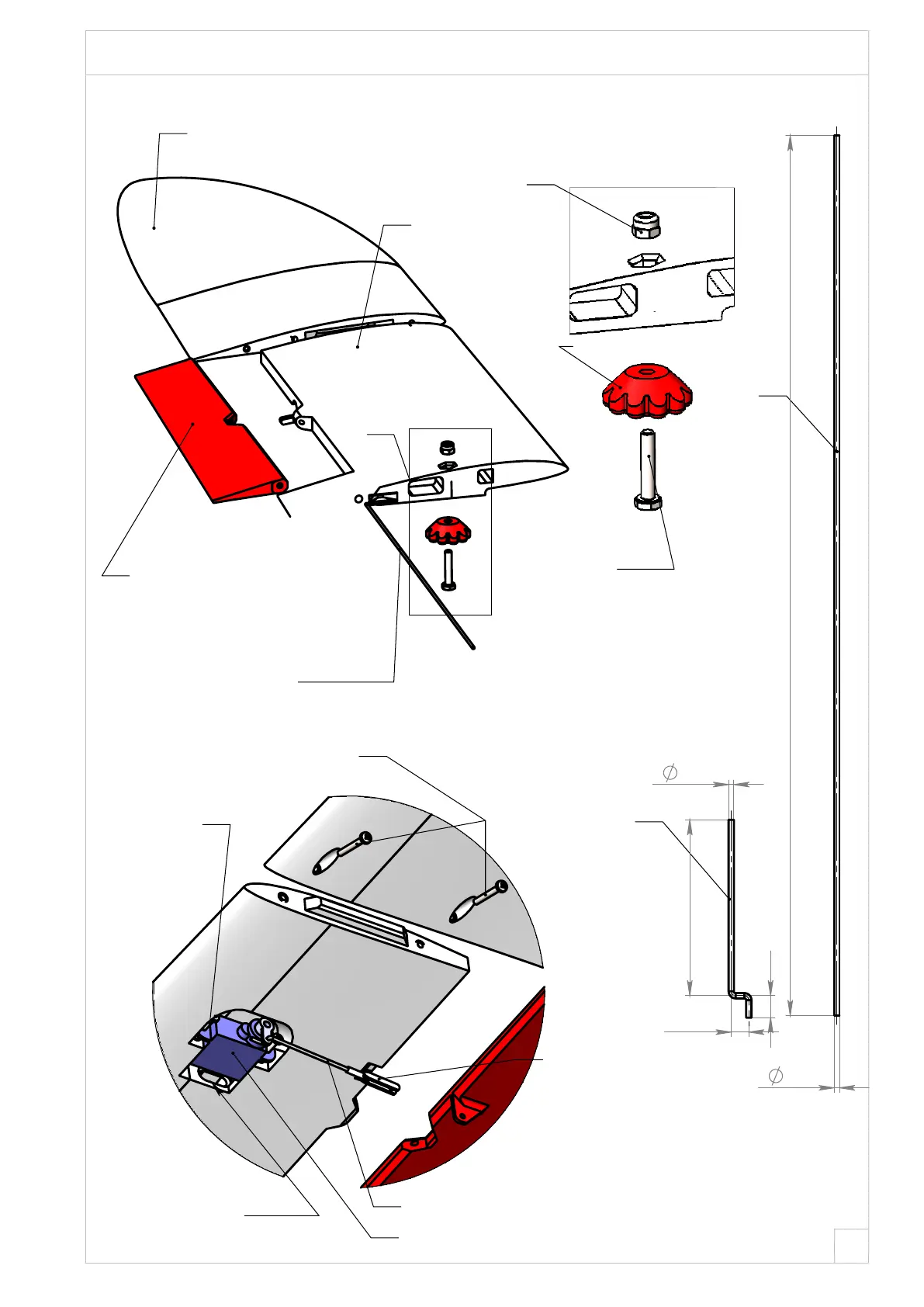

Adele Aero AdeleX-10 - Wing; Чертежный вид10; Чертежный вид11; Местный вид A (1: 1)

A
AAX10.002.Aileronshaft (1)
Insert all the way
into the hole
using some thin tool
AAX10.002.Aileron
AAX10.002.C2
AAX10.002.C1
Wire parts
Scale 1:1
Screws 2,2x16
Hardware included
with servo
Servo GH-s37d
AAX.002.Aileronrod (2)
Insert the servo wire
into the channel
Rod end
nylon 1.2 mm
A
Locking nut M3
Press in
AAX10.002.Knob
Bolt M3x16
Press in
200
1,2
1
1,2
40
4
5
2
Right and left consoles are mirrored
Hardware
Self-tapping screws:
2.2х16 - 4 pcs
Bolts:
М3х16 - 2 pcs
12
Wing
