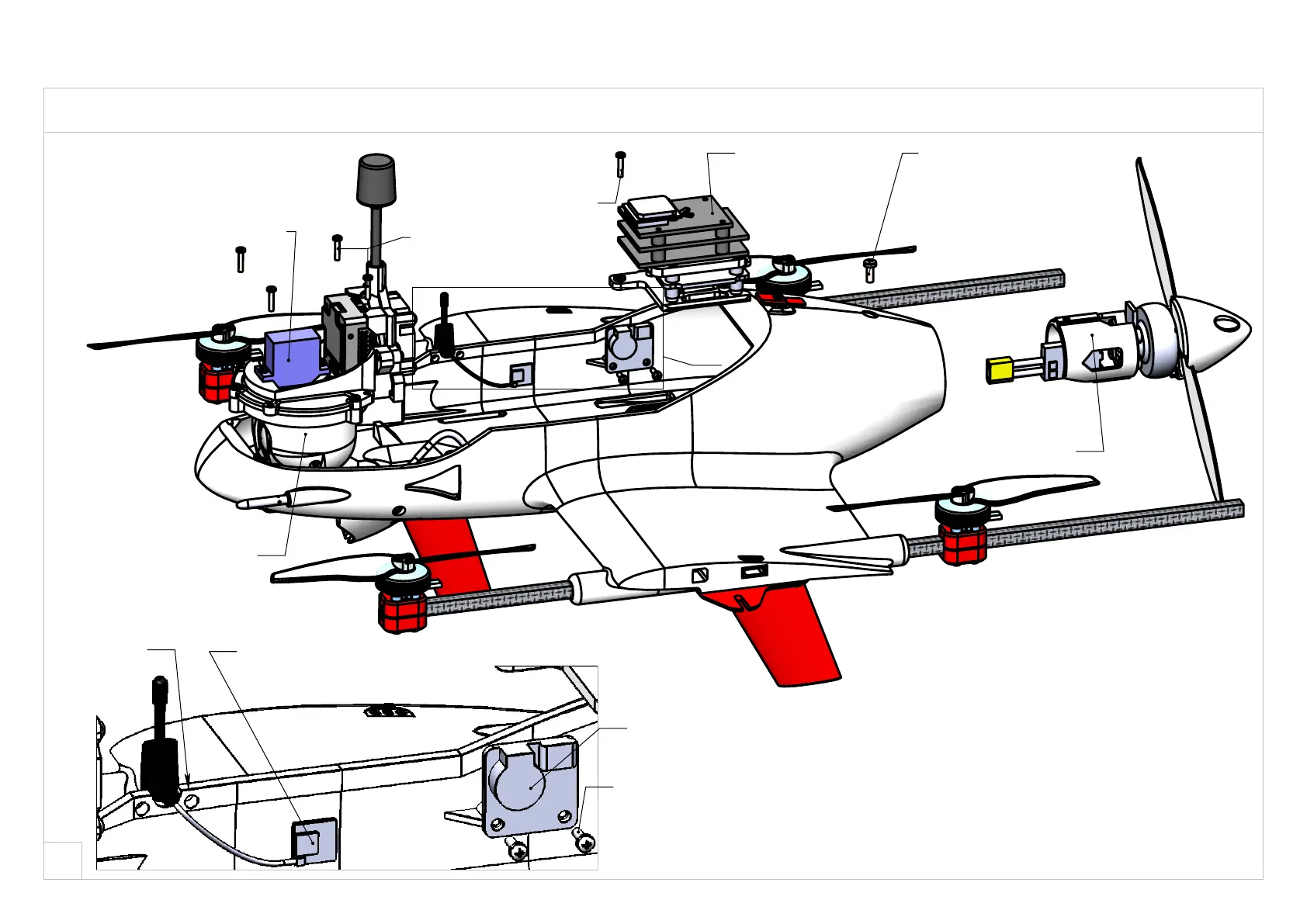

Adele Aero AdeleX-10 - Fuselage 3; Чертежный вид29; Местный вид С (1: 1)

С
Connect to FC
using 200mm servo
extensions
and 28 AWG wires
(camera, servo and fan)
Pan&Tilt
MFS.DJIGimbal
Screws 2,2х9,5
for pan&tilt installation
FC stack
Screw 2.2x9.5
Push the stack into
the rails and secure
All connections of electronics
with the flight controller and
speed controllers should be
made after installing the stack
in the fuselage
MFS.Motormount19
Screw М3х8
fixing the motormount
(from the motor
standart harware)
Install the control receiver
on foam tape
USB of the FC
Screw
2,2х6,5
С
Secure
the antenna
with a tie
Hardware
Self-tapping screws:
2,2х6,5 - 2 pcs
2,2х9,5 - 5 pcs
19
Fuselage 3
