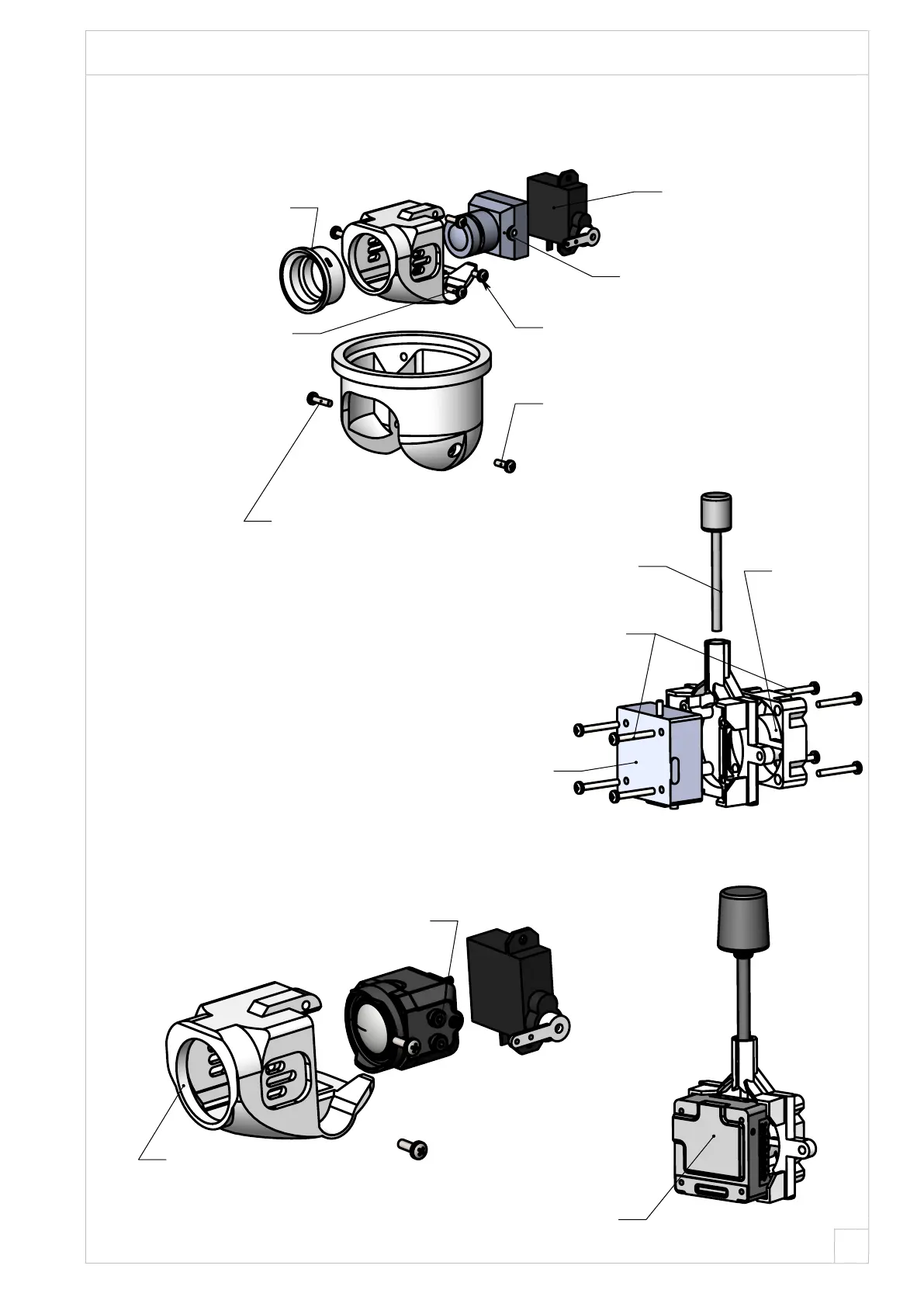

Adele Aero AdeleX-10 - Pan&tilt 1; Чертежный вид46; Чертежный вид47; Чертежный вид50

М2,2х6,5
Fixes the servo rocker
in the niche
Use standard screws
to adjust the camera position
2x8 Camera rotation axis
Do not tighten!
GH-s37d
(EMax
Es9051)
Camera Caddx
Polar (Nebula)
Snap in
the lens protection
Servo
standard hardware
DJI Vista option
Hardware
Self-tapping screws:
M2.2x6.5 1 pc
M2.2x16 8 (4) pcs
Screws:M2x8 1 pc
DJI O3 option
Do not install protection
Adjust the position of the camera with the screws
so that it does not touch the servo
Fan
3010 5V
Screws М2,2х16
Vista VTX
Insert
the antenna
until stop
Secure the O3 module
in the tray with a nylon tie
15
Pan&tilt 1
