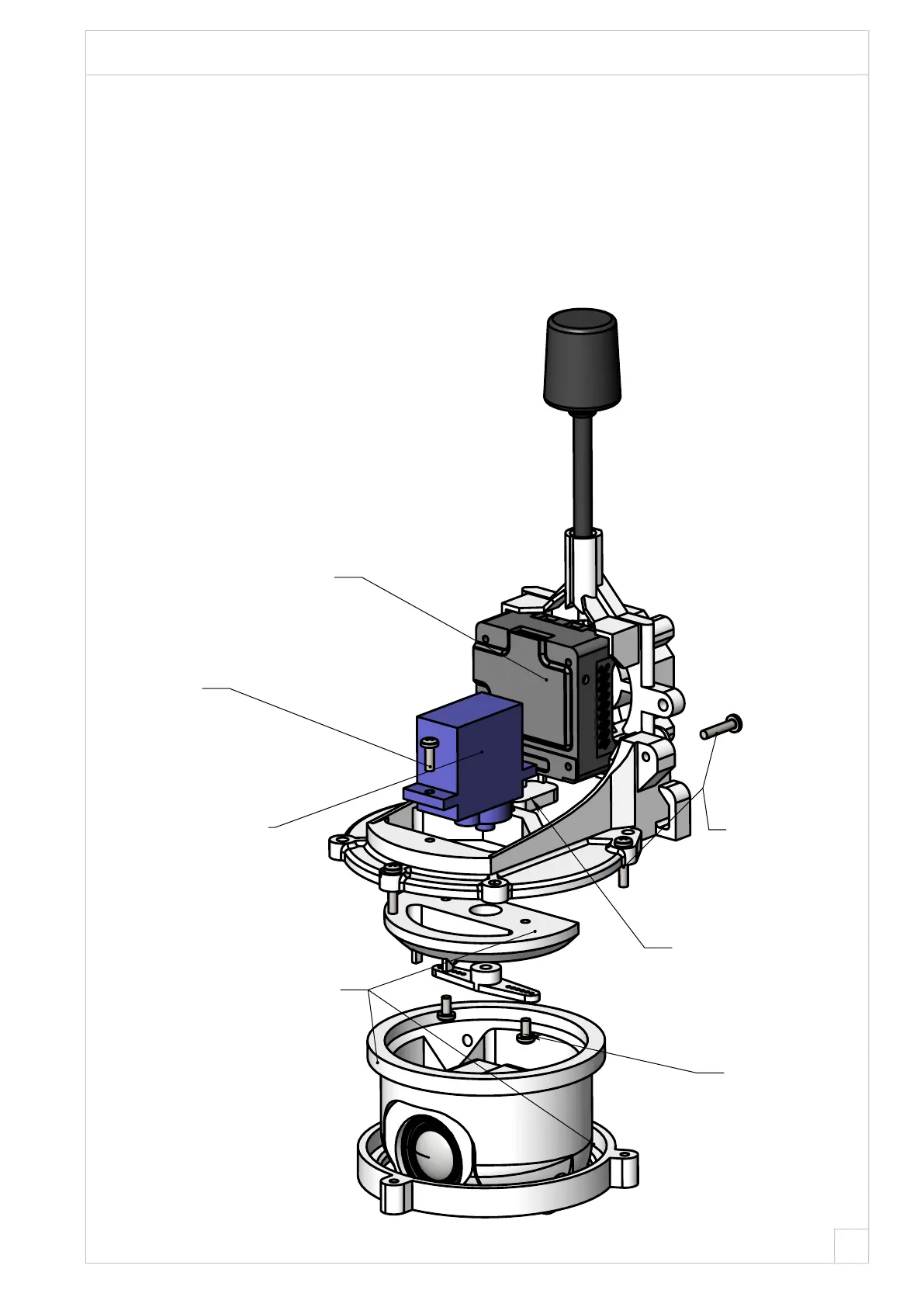

Screws
2.2x10
screwing
tray and ring
Servo
DM-s0090d
(270 degrees)
Standard
hardware of
Sevro
Screws
M2.2x4
servo arm
Pass the servo
and camera wires
through the back
VTX tray assembled
Apply silicone grease
to the friction surfaces
Fan cooling is
mandatory to use with
O3 on ground and
optional with Vista
Hardware
Self-tapping screws:
2.2x4.5 2 pcs.
2.2x9.5 5 pcs.
When assembling the gimbal, place the servos in such a way that the
working stroke of the servos corresponds to the working stroke of the gimbal.
All gimbal control channels must be in
neutral position (1500 µs)
before
tuning.
This is necessary in order not to damage the servo drive gearboxes when
turned on for the first time.
Horizontal camera position 0 degrees corresponds to ~2000 µs
Vertical position ~1000 µs
For a horizontal rotation servo, it is recommended to set the PWM range to
800-2200 µs
16
Pan&tilt 2
