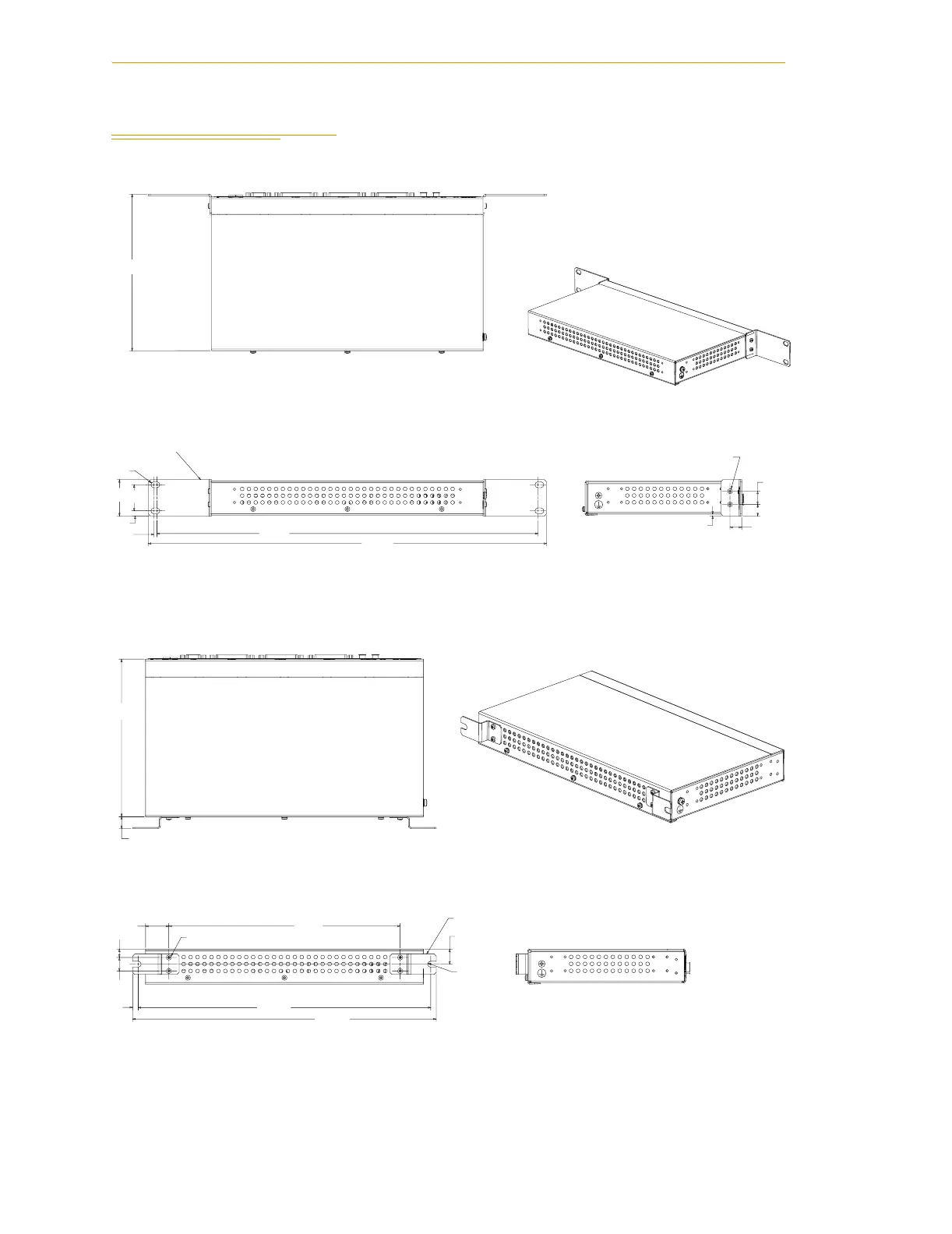

4.2 Dimensions for Mounting sMI6 Module
Figure 4-2. Rack Mounting
Figure 4-3. Panel Mounting
14.0
2X M3 x 6MM
BOTH SIDES
14.2
3.6
TYP.
16.0
482.8
2X 40356-00003
6.1
43.9
190.0
31.8
462.0
2.2
R 3.6
R 3.6
6.6
273.9
14.0
27.6
359.6
346.4
2X 40356-00000
16.0
4X M3 x 6MM
18.0
186.5
10.0
